Teledyne LeCroy T3DMM Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max - RS Calibrated

View all Multimeters
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
202-0907
Mfr. Part No.:
T3DMM6-5
Brand:
Teledyne LeCroy
Find similar products by selecting one or more attributes.
Select all

Brand

Teledyne LeCroy

Multimeter Type

Bench

Model Number p

T3DMM

Display Type

Digital

Functions Measured

AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Period, Resistance, Temperature, True RMS

Calibrated

RSCAL

Absolute Maximum DC Current Measurement

10A dc

Absolute Maximum AC Voltage Measurement

750V ac

Absolute Maximum AC Current Measurement

10A ac

Absolute Maximum DC Voltage Measurement

1000V dc

True RMS

Yes

Maximum Frequency

1MHz

DC Voltage Measurement Resolution

0.0015mV dc

Safety Category Level

CAT I, CAT II

Temperature Measurement Resolution

0.5°C

Best DC Voltage Accuracy

±0.005 % of Reading + 0.0008 % of Range

Safety Category Voltage

600 V, 1000V

Weight

3.4kg

Best DC Current Accuracy

±0.15 % of Reading + 0.005 % of Range

Minimum Operating Temperature

0°C

Best AC Current Accuracy

±0.15 % of Reading + 0.1 % of Range

Width

260.29mm

Height

107.21mm

Dimensions

345.45 x 260.29 x 107.21mm

Maximum Operating Temperature

+40°C

Best AC Voltage Accuracy

±0.2 % of Reading + 0.02 % of Range

Length

345.45mm

COO (Country of Origin):
CN

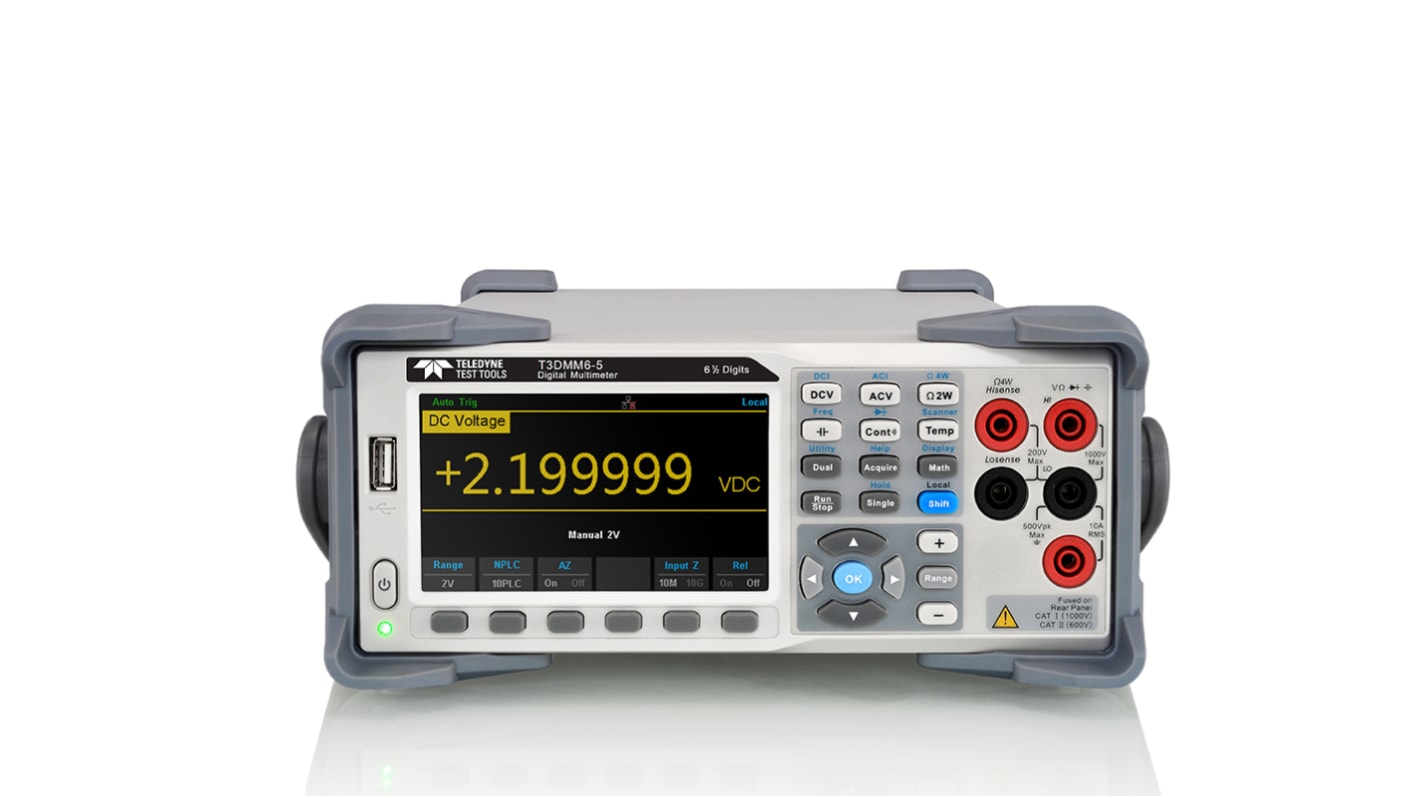

Teledyne Test Tools new T3DMM series are dual display digital desktop multimeters that provide a rich and powerful feature set. The design is easy-to-use from the front-panel and computer-based control via USB or LAN. Each model is equipped with a 4.3 inch TFT-LCD true colour screen with 480 * 272 resolution for easy viewing. The T3DMM series also features numerical data display, histograms, trend charts, bar charts and statistics, in addition to the built-in arithmetic functions including Measurement statistics.

4.3” TFT-LCD, 480*272
Real 6-1/2 digits readings resolution (2,200,000 counts)
True-RMS AC Voltage and AC Current measuring
File management (support for U-disc and local storage)
Built-in cold terminal compensation for thermocouple
Standard interfaces: USB Device, USB Host, LAN
Built-in Help system makes information acquisition easier
Support remote control operation via SCPI commands.
Supports intelligent management system for laboratory based on BS framework and LAN.
DC Voltage: 200 mV - 1000 V
DC Current: 200 μA - 10 A
AC Voltage: True-RMS, 200 mV - 750 V
AC Current: True-RMS, 200 μA - 10 A
2/4-Wire Resistance: 200Ω - 100 MΩ
Capacitance: 2 nF - 100 mF
Diode Test: Adjustable range is 0 - 4V.
Frequency Measurement: 3 Hz - 1 MHz
Period Measurement: 1 μs - 333.33 ms
Temperature: Support for TC and RTD sensors
