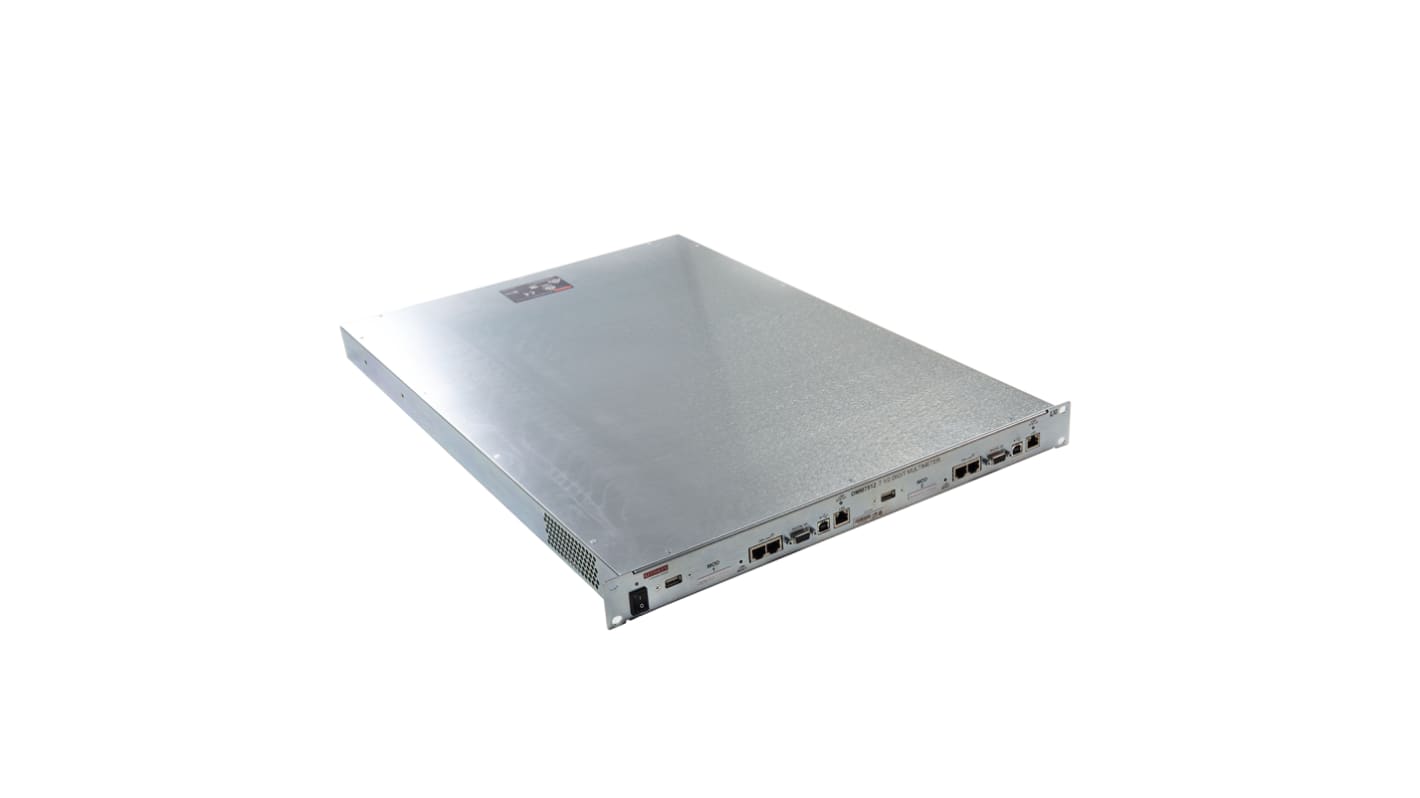

Keithley DMM7512 Dual Channel Rack Mount 7.5 Digital Multimeter, 3A dc Max

The DMM7512 7.5 digit multimeter combines two full-function, high accuracy, high sampling speed DMMs into a 1U high, full rack wide form factor chassis. The compact chassis saves rack space in high-instrument density test systems without compromising measurement performance. Each DMM has identical functionality, and they are entirely independent of each other. The DMM7512 consists of two, independent, identical, 7-digit DMM7510 digital multimeters (DMMs) with a few less measurement functions. The two DMM7512 DMMs have the same accuracy, sensitivity, and speed as the DMM7510 so that the DMM7512 can be seamlessly integrated into a test system that previously used DMM7510s. The two DMMs in each DMM7512 have built-in intelligence to execute test programs without PC interaction using its Test Script Processor (TSP®) Technology. In addition, each DMM features a TSP-Link® hardware interface so that one instrument can control other instruments in a master-subordinate configuration.

• 1U rack height with no spacing between instruments required
• Two DMMs per instrument
• Control multiple instruments with a test script and TSP-Link to reduce bus communication time and save test time
• Capture current and voltage waveforms with up to 1 Msample/s, 18-bit digitizing
• Synchronize waveform capture using TSP-Link with less than 500 ns latency between initiation of waveform sampling
• Measure low sleep mode current with 1pA DCI sensitivity or 0.1nA current digitization sensitivity

Keithley Test Script Builder available at https://www.tek.com/keithley-test-script-builder

Automotive
Battery Testing
Embedded Design
Power Measurements and Analysis
Manufacturing test/troubleshooting
