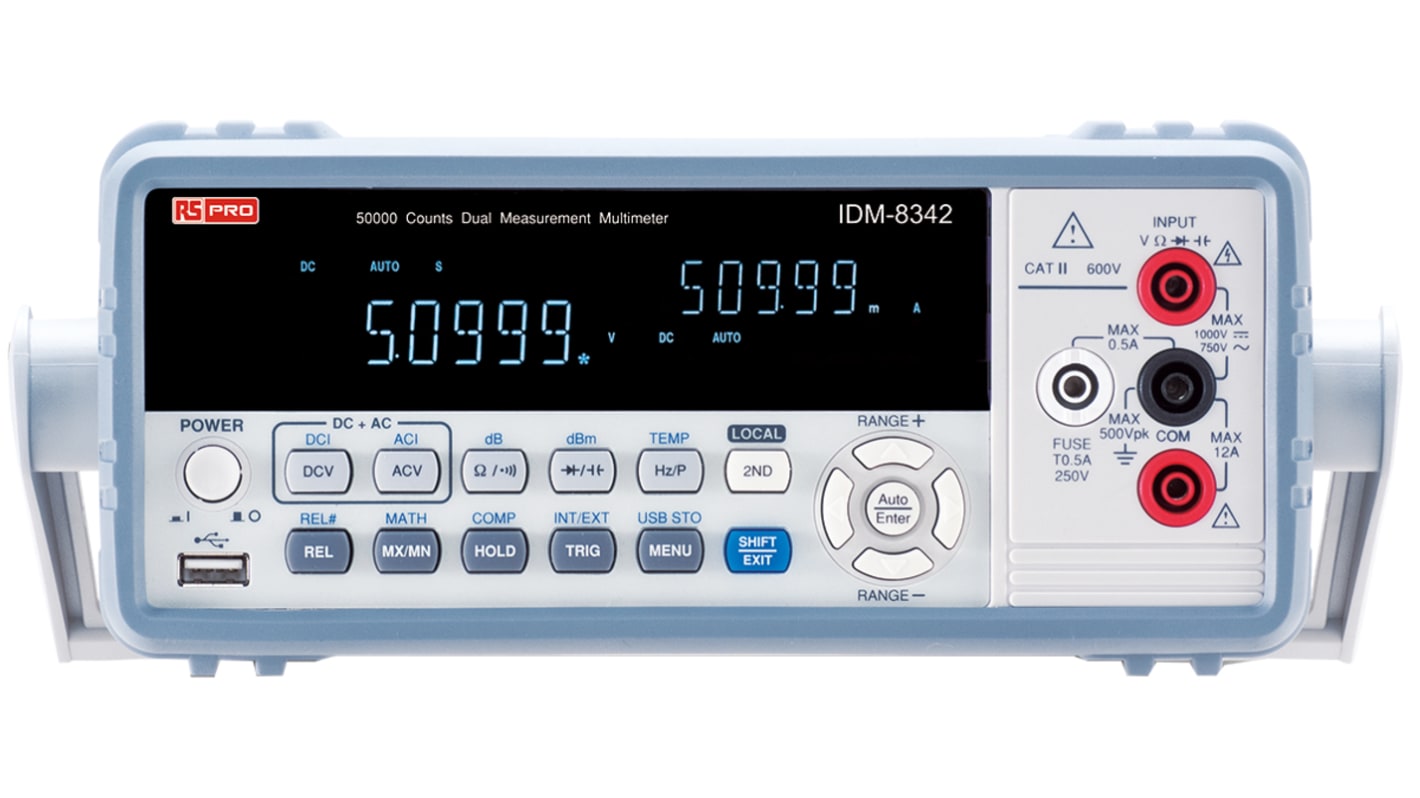

RS PRO IDM8342 Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max - RS Calibrated

RS Stock No.:: 124-0258
Brand:: RS PRO

RS PRO IDM8342 Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max - RS Calibrated

Subtotal (1 unit)*

£718.31

(exc. VAT)

£861.97

(inc. VAT)

FREE delivery for orders over £50.00

Being discontinued

19 left, ready to ship
Final 1 unit(s) shipping from 27 October 2025

Units	Per unit
1 +	£718.31

*price indicative

RS Stock No.:: 124-0258
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Multimeter Type	Bench
	Display Type	Digital
	Model Number p	IDM8342
	Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
	Calibrated	RSCAL
	Absolute Maximum DC Voltage Measurement	1000V dc
	Absolute Maximum AC Current Measurement	10A ac
	Absolute Maximum Resistance Measurement	50MΩ
	Absolute Maximum DC Current Measurement	10A dc
	Absolute Maximum AC Voltage Measurement	750V ac
	Absolute Maximum Temperature Measurement	+300°C
	Absolute Maximum Capacitance Measurement	50µF
	True RMS	Yes
	Maximum Frequency	1MHz
	AC Current Measurement Resolution	10nA ac
	DC Current Measurement Resolution	10nA dc
	AC Voltage Measurement Resolution	10µV ac
	Resistance Measurement Resolution	10mΩ
	DC Voltage Measurement Resolution	10µV dc
	Capacitance Measurement Resolution	0.001nF
	Temperature Measurement Resolution	0.1°C
	Best DC Current Accuracy	±0.05% + 4 Digits
	Height	107mm
	Best Resistance Measurement Accuracy	±0.1% + 3 Digits
	Weight	2.9kg
	Best DC Voltage Accuracy	±0.02% + 4 Digits
	Best Temperature Measurement Accuracy	±2 °C
	Dimensions	265 x 302 x 107mm
	Best Capacitance Measurement Accuracy	±2% + 4 Digits
	Length	265mm
	Best AC Voltage Accuracy	±0.35% + 15 Digits
	Best AC Current Accuracy	±0.5% + 20 Digits
	Width	302mm

	Select all
	Brand RS PRO
	Multimeter Type Bench
	Display Type Digital
	Model Number p IDM8342
	Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
	Calibrated RSCAL
	Absolute Maximum DC Voltage Measurement 1000V dc
	Absolute Maximum AC Current Measurement 10A ac
	Absolute Maximum Resistance Measurement 50MΩ
	Absolute Maximum DC Current Measurement 10A dc
	Absolute Maximum AC Voltage Measurement 750V ac
	Absolute Maximum Temperature Measurement +300°C
	Absolute Maximum Capacitance Measurement 50µF
	True RMS Yes
	Maximum Frequency 1MHz
	AC Current Measurement Resolution 10nA ac
	DC Current Measurement Resolution 10nA dc
	AC Voltage Measurement Resolution 10µV ac
	Resistance Measurement Resolution 10mΩ
	DC Voltage Measurement Resolution 10µV dc
	Capacitance Measurement Resolution 0.001nF
	Temperature Measurement Resolution 0.1°C
	Best DC Current Accuracy ±0.05% + 4 Digits
	Height 107mm
	Best Resistance Measurement Accuracy ±0.1% + 3 Digits
	Weight 2.9kg
	Best DC Voltage Accuracy ±0.02% + 4 Digits
	Best Temperature Measurement Accuracy ±2 °C
	Dimensions 265 x 302 x 107mm
	Best Capacitance Measurement Accuracy ±2% + 4 Digits
	Length 265mm
	Best AC Voltage Accuracy ±0.35% + 15 Digits
	Best AC Current Accuracy ±0.5% + 20 Digits
	Width 302mm

Manufacturer Information

COO (Country of Origin):: CN

RS PRO IDM-8300 Series Dual Measurement Multimeters

RS PRO IDM-8300 Series bench digital multimeters (DMM) include 50 000 counts, VF (vacuum fluorescent) dual-display, 0-02% basic DC voltage accuracy and a USB protocol connector. These features provide users with measurement precision, comprehensive data observation and the convenience of a connection to a PC.

RS PRO IDM-8300 Series models IDM-8341 (123-3535) and IDM-8342 (123-3536) offer typical multimeter capabilities plus capacitance measurement. 124-0228 has all the features of model IDM-8342 and offers, in addition, temperature measurement and USB storage for data collection and GPIB (general purpose interface bus). GPIB offers the IEEE 488 standard digital 8-bit parallel communications interface for automatic measurement and convenient data save and retrieval.

The RS PRO range of handheld and bench digital multimeters are great value for money and also high quality you can rely on.

What are the key features of the RS PRO IDM-8300 Series Meters?

• 50 000 counts
• Vacuum Fluorescent Display (VFD) with 2 colours
• Dual measurement
• Fast measurement rate
• 0.02% DCV basic accuracy
• Manual and auto-ranging
• True RMS (AC, AC+DC)
• 11 measurement functions
• Max/Min, REL, MX+B, 1/X, Ref%, Compare, Hold, dB, dBm
• Standard USB device for communicating with a PC
• LCD display - readouts can be viewed

What does it measure?
AC and DC Current
DC and AC Voltage
Capacitance, Continuity, Diode, Frequency, Resistance, RMS, Temperature

What are the typical applications?

A digital multimeter (DMM) is a handy test tool that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:
• Production test and quality inspection
• Educational laboratory experiments
• Repair and service
• Circuit testing and debug

Safety guidelines
When using any electrical test equipment it is advised that you refer to the user’s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.
