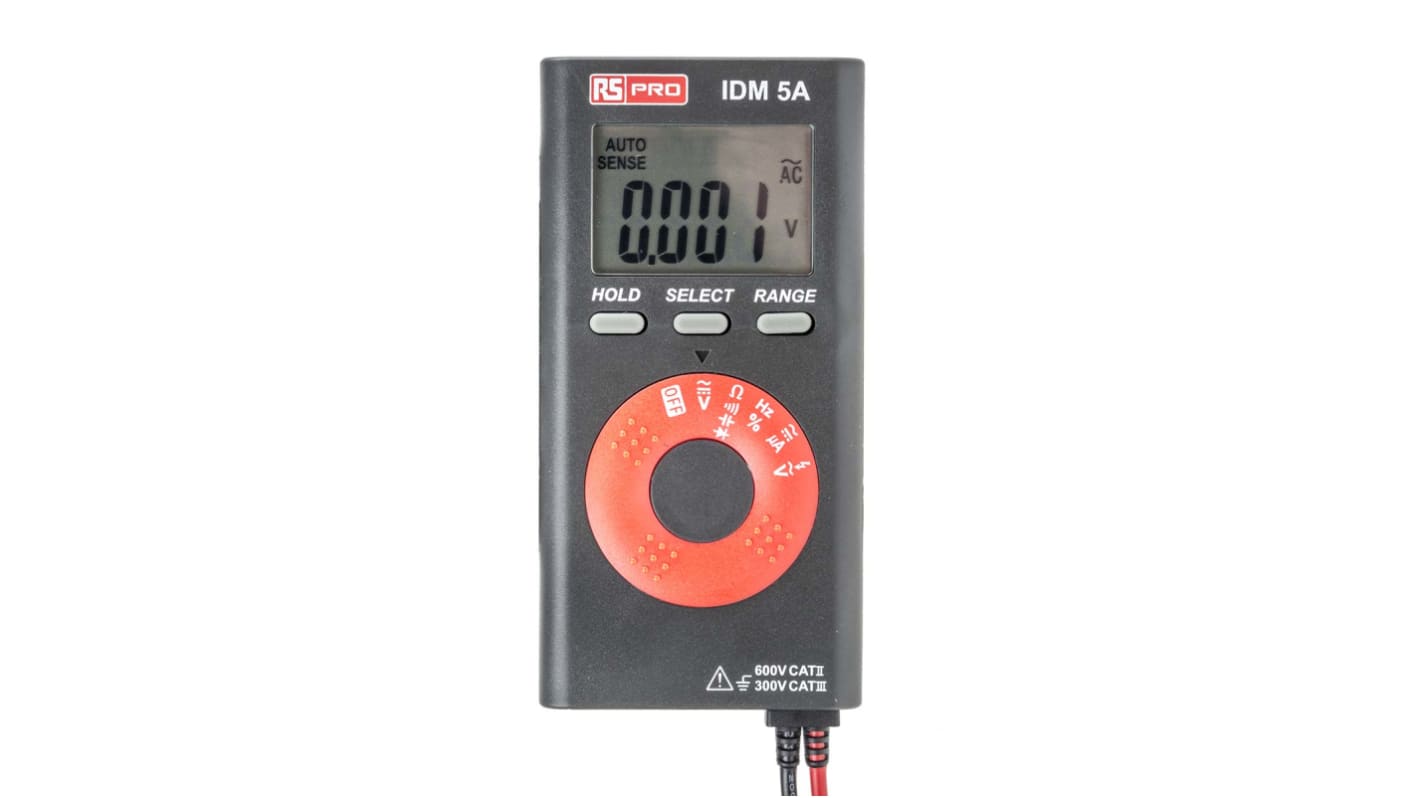

RS PRO IDM5A Handheld Digital Multimeter, 4mA ac Max, 4mA dc Max, 600V ac Max - RS Calibrated

RS Stock No.:: 123-3361
Brand:: RS PRO

RS PRO IDM5A Handheld Digital Multimeter, 4mA ac Max, 4mA dc Max, 600V ac Max - RS Calibrated

Subtotal (1 unit)*

£133.18

(exc. VAT)

£159.82

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

274 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£133.18

*price indicative

RS Stock No.:: 123-3361
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Multimeter Type	Handheld
	Display Type	Digital
	Model Number p	IDM5A
	Functions Measured	AC Current, AC Voltage, Capacitance, Conductance, DC Current, DC Voltage, Diode, Frequency, Resistance, RMS, Temperature
	Calibrated	RSCAL
	Absolute Maximum AC Current Measurement	4mA ac
	Absolute Maximum DC Voltage Measurement	600V dc
	Absolute Maximum AC Voltage Measurement	600V ac
	Absolute Maximum DC Current Measurement	4mA dc
	Absolute Maximum Resistance Measurement	40MΩ
	Absolute Maximum Capacitance Measurement	400µF
	True RMS	No
	Maximum Frequency	40kHz
	AC Current Measurement Resolution	0.1µA ac
	DC Current Measurement Resolution	0.1µA dc
	DC Voltage Measurement Resolution	0.1mV dc
	AC Voltage Measurement Resolution	0.1mV ac
	Resistance Measurement Resolution	100mΩ
	Safety Category Level	CAT II, CAT III
	Capacitance Measurement Resolution	0.01nF
	Dimensions	56 x 12 x 112mm
	Best DC Voltage Accuracy	±0.6% + 2 Digits
	Width	12mm
	Maximum Operating Temperature	+50°C
	Battery Type	LR44 1.5 V
	Safety Category Voltage	300 V, 600V
	Minimum Operating Temperature	0°C
	Best Resistance Measurement Accuracy	±0.9% + 2 Digits
	Best DC Current Accuracy	±0.9% + 5 Digits
	Weight	100g
	Height	112mm
	Best AC Current Accuracy	±0.9% + 5 Digits
	Length	56mm
	Best AC Voltage Accuracy	±0.9% + 5 Digits
	Best Capacitance Measurement Accuracy	±2.9% + 5 Digits

	Select all
	Brand RS PRO
	Multimeter Type Handheld
	Display Type Digital
	Model Number p IDM5A
	Functions Measured AC Current, AC Voltage, Capacitance, Conductance, DC Current, DC Voltage, Diode, Frequency, Resistance, RMS, Temperature
	Calibrated RSCAL
	Absolute Maximum AC Current Measurement 4mA ac
	Absolute Maximum DC Voltage Measurement 600V dc
	Absolute Maximum AC Voltage Measurement 600V ac
	Absolute Maximum DC Current Measurement 4mA dc
	Absolute Maximum Resistance Measurement 40MΩ
	Absolute Maximum Capacitance Measurement 400µF
	True RMS No
	Maximum Frequency 40kHz
	AC Current Measurement Resolution 0.1µA ac
	DC Current Measurement Resolution 0.1µA dc
	DC Voltage Measurement Resolution 0.1mV dc
	AC Voltage Measurement Resolution 0.1mV ac
	Resistance Measurement Resolution 100mΩ
	Safety Category Level CAT II, CAT III
	Capacitance Measurement Resolution 0.01nF
	Dimensions 56 x 12 x 112mm
	Best DC Voltage Accuracy ±0.6% + 2 Digits
	Width 12mm
	Maximum Operating Temperature +50°C
	Battery Type LR44 1.5 V
	Safety Category Voltage 300 V, 600V
	Minimum Operating Temperature 0°C
	Best Resistance Measurement Accuracy ±0.9% + 2 Digits
	Best DC Current Accuracy ±0.9% + 5 Digits
	Weight 100g
	Height 112mm
	Best AC Current Accuracy ±0.9% + 5 Digits
	Length 56mm
	Best AC Voltage Accuracy ±0.9% + 5 Digits
	Best Capacitance Measurement Accuracy ±2.9% + 5 Digits

COO (Country of Origin):: TW

RS PRO IDM5A Digital Wallet Multimeter

RS PRO IDM5A all new card type digital multimeter. These handheld devices can measure capacitance, voltage, electrical current and resistance with diode and continuity check. This meter has an LCD display where the measurement readouts can be viewed.

Specially designed for the quick service application with a much thicker test probe and a quality carrying wallet. Smart designed full functions with simple operation to facilitate your daily works with better efficiency.

RS PRO have a great range of meters that are RS approved meaning that they are great value for money and high quality you can rely on.

Features and Benefits

Multimeter with a 4000 Counts LCD display
8 functions / 30 ranges
600 V & μA AC-DC measurement ranges
Volt Sense: Integral non-contact AC voltage detector with a visual and audible indication
Resistance/Continuity and Diode Test
Capacitance, Frequency counter and duty cycle
Selectable manual /auto-ranging
Display HOLD
Auto–power off
Conforms to EN61010-1 (safety rating) CAT III 300 V, CAT II 600 V

What does it measure?

DC/AC Voltages - up to 600 V

AC/DC Current - up to 4000μA

Resistance and continuity checking - up to 40 MΩ

Diode - open circuit voltage up to 1.5 V

Extra Protection

The multimeter is supplied with a protective wallet that includes a built-in stand and convenient test lead storage. This wallet provides an extra degree of protection and convenience.

Cable Detecting

The IDM5A multimeter has a feature to detect live cables and outlets without contact. Also has the abilty to find cable alignment behind the wall as a cable finder.

Slim Design

Ergonomically designed slim shape with one handed operating knob and buttons. It just fits into the palm of your hand.

Batteries

Batteries can be easily replaced by removing the battery door for battery replacement. Designed for users convenience without opening the bottom case. The multimeter has a low battery indicator for notify you to change the batteries soon.

What does it include?

Pair of Integral Test Leads
Battery (Installed)
Deluxe Carrying Wallet
User Manual

Typical Applications:

A digital multimeter (DMM) is a handy test tool that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:
Electrical and electronic industries

Safety guidelines

When using any electrical test equipment it is advised that you refer to the user’s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.

What is the difference between an analogue and a digital multimeter?

The main difference is the display. A digital multimeter will show the results as numbers on a screen (usually a LED or LCD screen) whereas the analogue version has a needle to show the value.
