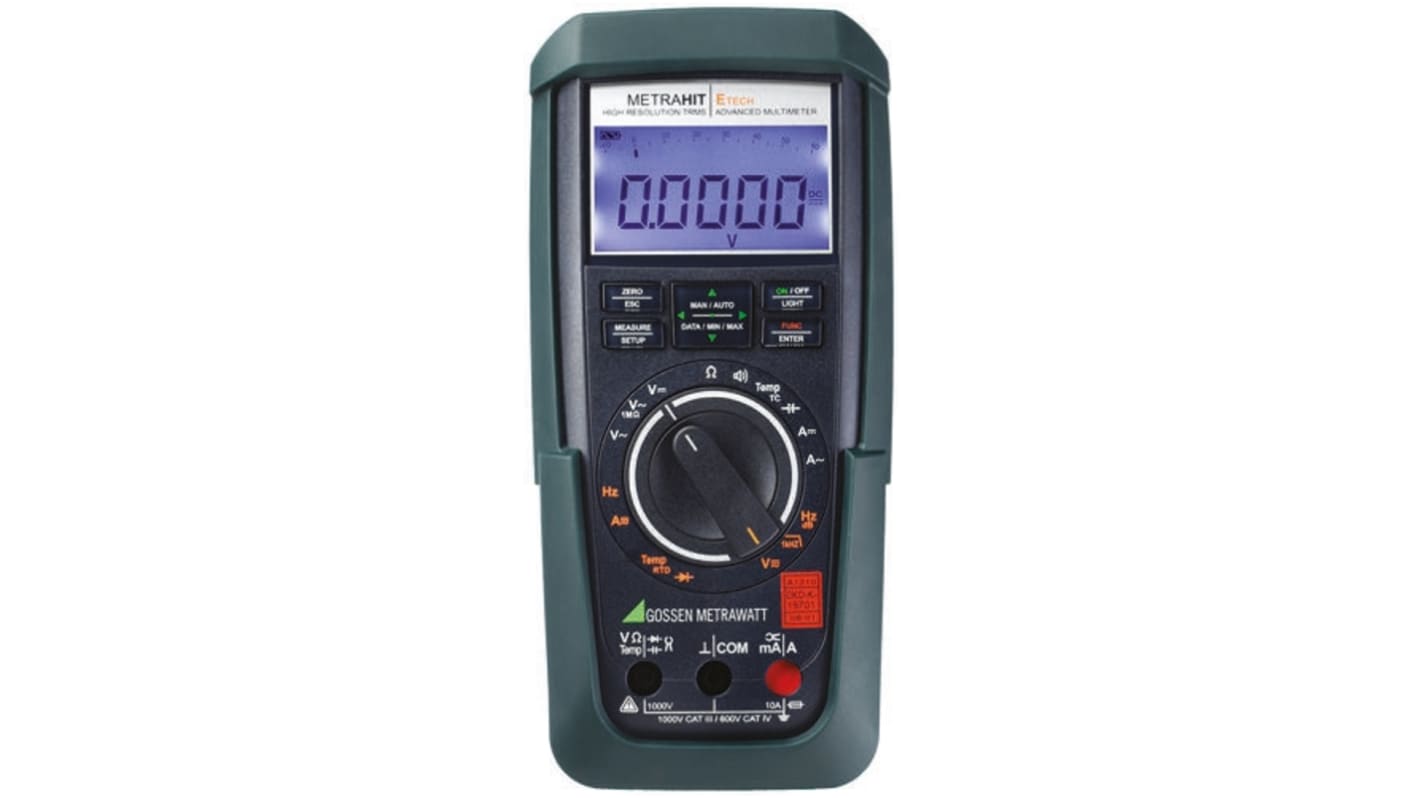

Gossen Metrawatt METRAHIT PM TECH Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max
- RS Stock No.:
- 487-886
- Mfr. Part No.:
- M253A
- Brand:
- Gossen Metrawatt
Subtotal (1 unit)*
£737.27
(exc. VAT)
£884.72
(inc. VAT)
FREE delivery for orders over £50.00
- 2 unit(s) ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £737.27 |
*price indicative
- RS Stock No.:
- 487-886
- Mfr. Part No.:
- M253A
- Brand:
- Gossen Metrawatt
Select all | Attribute | Value |
|---|---|---|
| Brand | Gossen Metrawatt | |
| Multimeter Type | Handheld | |
| Display Type | Digital | |
| Model Number p | METRAHIT PM TECH | |
| Functions Measured | AC Current, AC Voltage, Battery Test, Capacitance, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature | |
| Absolute Maximum DC Current Measurement | 10A dc | |
| Absolute Maximum AC Current Measurement | 10A ac | |
| Absolute Maximum DC Voltage Measurement | 1000V dc | |
| Absolute Maximum Resistance Measurement | 60MΩ | |
| Absolute Maximum AC Voltage Measurement | 1000V ac | |
| Absolute Maximum Capacitance Measurement | 600µF | |
| Absolute Maximum Temperature Measurement | +1372°C | |
| True RMS | Yes | |
| AC Current Measurement Resolution | 10nA ac | |
| DC Current Measurement Resolution | 10nA dc | |
| DC Voltage Measurement Resolution | 10µV dc | |
| AC Voltage Measurement Resolution | 10µV ac | |
| Resistance Measurement Resolution | 10mΩ | |
| Safety Category Level | CAT III, CAT IV | |
| Temperature Measurement Resolution | 0.1°C | |
| Capacitance Measurement Resolution | 10pF | |
| Dimensions | 200 x 87 x 45mm | |
| Best Capacitance Measurement Accuracy | ±5% + 6 Digits | |
| Best AC Voltage Accuracy | ±0.05% + 5 Digits | |
| Best AC Current Accuracy | ±0.1% + 5 Digits | |
| Width | 87mm | |
| Best DC Voltage Accuracy | ±0.05% + 5 Digits | |
| Maximum Operating Temperature | +40°C | |
| Best DC Current Accuracy | ±0.1% + 5 Digits | |
| Safety Category Voltage | 600 V, 1000V | |
| Battery Type | AA | |
| Best Resistance Measurement Accuracy | ±5% + 10 Digits | |
| Minimum Operating Temperature | 0°C | |
| Height | 45mm | |
| Weight | 350g | |
| Length | 200mm | |
| Best Temperature Measurement Accuracy | ±1% + 5 Digits | |
Select all | ||
|---|---|---|
Brand Gossen Metrawatt | ||
Multimeter Type Handheld | ||
Display Type Digital | ||
Model Number p METRAHIT PM TECH | ||
Functions Measured AC Current, AC Voltage, Battery Test, Capacitance, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature | ||
Absolute Maximum DC Current Measurement 10A dc | ||
Absolute Maximum AC Current Measurement 10A ac | ||
Absolute Maximum DC Voltage Measurement 1000V dc | ||
Absolute Maximum Resistance Measurement 60MΩ | ||
Absolute Maximum AC Voltage Measurement 1000V ac | ||
Absolute Maximum Capacitance Measurement 600µF | ||
Absolute Maximum Temperature Measurement +1372°C | ||
True RMS Yes | ||
AC Current Measurement Resolution 10nA ac | ||
DC Current Measurement Resolution 10nA dc | ||
DC Voltage Measurement Resolution 10µV dc | ||
AC Voltage Measurement Resolution 10µV ac | ||
Resistance Measurement Resolution 10mΩ | ||
Safety Category Level CAT III, CAT IV | ||
Temperature Measurement Resolution 0.1°C | ||
Capacitance Measurement Resolution 10pF | ||
Dimensions 200 x 87 x 45mm | ||
Best Capacitance Measurement Accuracy ±5% + 6 Digits | ||
Best AC Voltage Accuracy ±0.05% + 5 Digits | ||
Best AC Current Accuracy ±0.1% + 5 Digits | ||
Width 87mm | ||
Best DC Voltage Accuracy ±0.05% + 5 Digits | ||
Maximum Operating Temperature +40°C | ||
Best DC Current Accuracy ±0.1% + 5 Digits | ||
Safety Category Voltage 600 V, 1000V | ||
Battery Type AA | ||
Best Resistance Measurement Accuracy ±5% + 10 Digits | ||
Minimum Operating Temperature 0°C | ||
Height 45mm | ||
Weight 350g | ||
Length 200mm | ||
Best Temperature Measurement Accuracy ±1% + 5 Digits | ||
- COO (Country of Origin):
- DE
METRAHIT ETECH
Effective value measurement (AC, AC+DC)
Automatic reading range selection
dB measurement function
Capacitance
Temperature measurement with TE type J, K
MIN / MAX / data hold storage
Diode test and continuity test
Infrared interface for data transmission (only in conjunction with IR USB adapter and METRAwin10 software)
Automatic jack disable (ABS) - prevents incorrect connection of measuring leads
One single jack prevents current ranges being interchanged
Optional accessories
Standards
Supplied with
