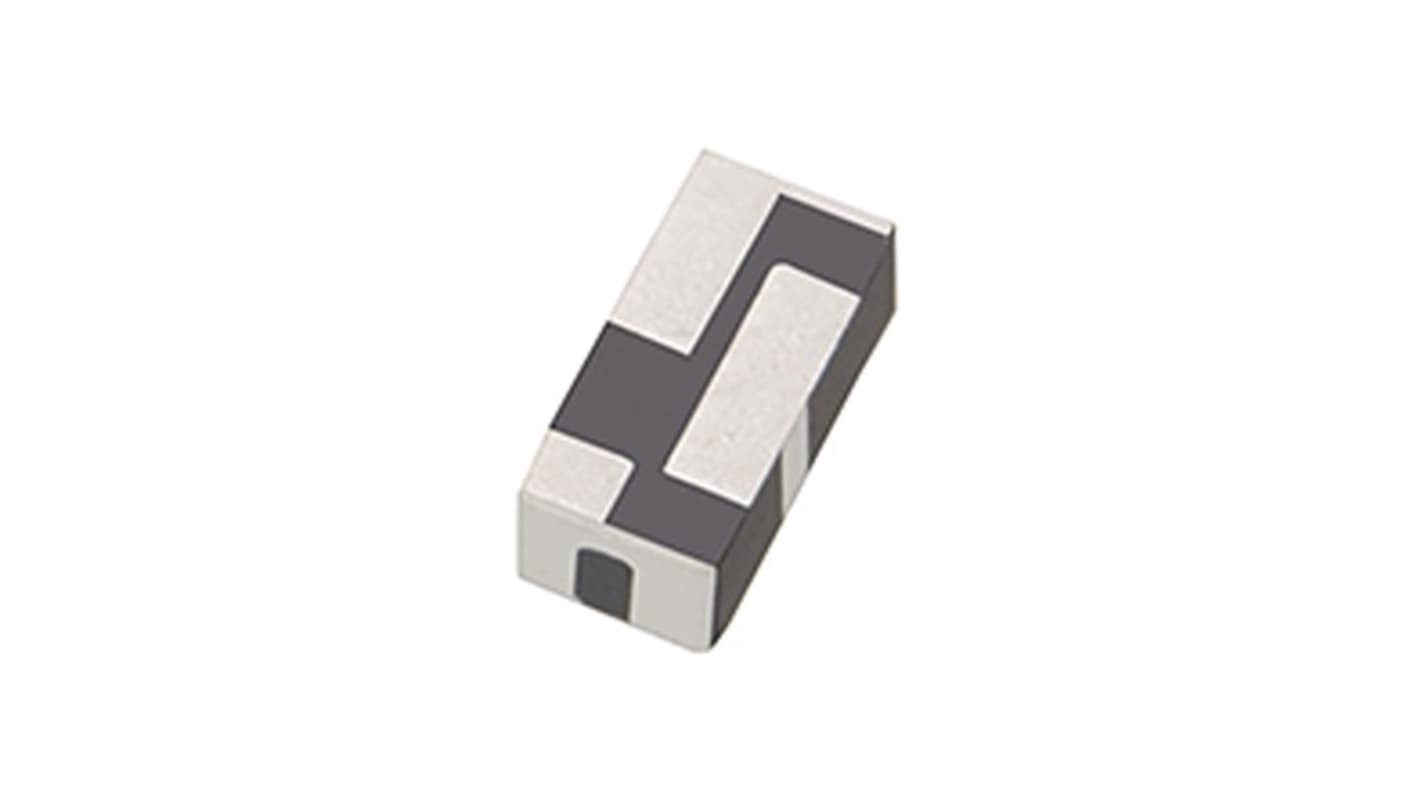

Molex 203007-0001 Chip Multiband Antenna with SMT Connector, Bluetooth (BLE), WiFi, ZigBee

View all Multi-Band Antennas

Subtotal (1 reel of 3000 units)*

£1,659.00

(exc. VAT)

£1,992.00

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
Per Reel*
3000 +£0.553£1,659.00

*price indicative

RS Stock No.:
683-670
Mfr. Part No.:
203007-0001
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

RF Protocols

Bluetooth (BLE), WiFi, ZigBee

Frequency Range

1561 → 5850 MHz

Connector Type

SMT

Internal/External

Internal

Gain

0.7 → 4.5dBi

Antenna Mounting Type

SMD

Antenna Physical Form

Chip

Series

203007

COO (Country of Origin):
CN
The Molex GNSS/Wi-Fi Combo Ceramic Antenna is engineered for seamless connectivity across various Internet of Things (IoT) applications including Wi-Fi, Bluetooth, and ZigBee. This compact surface mount device antenna effectively integrates GNSS and Wi-Fi functionalities, providing developers with a versatile solution for modern electronic designs. With a low profile of just 1.10mm thickness and a footprint of 3.20mm by 1.60mm, it’s ideal for space-constrained environments. Designed to deliver reliable performance, this antenna ensures optimal signal reception across multiple frequency bands, enhancing the capabilities of IoT devices in dynamic environments.

Offering total efficiency exceeding 50% across multiple frequency bands
Delivers excellent return loss characteristics, maintaining signal integrity
Halogen-free and compliant with EU RoHS standards, ensuring environmental safety
Packaged in embossed tape on reel, enabling efficient deployment in production environments
