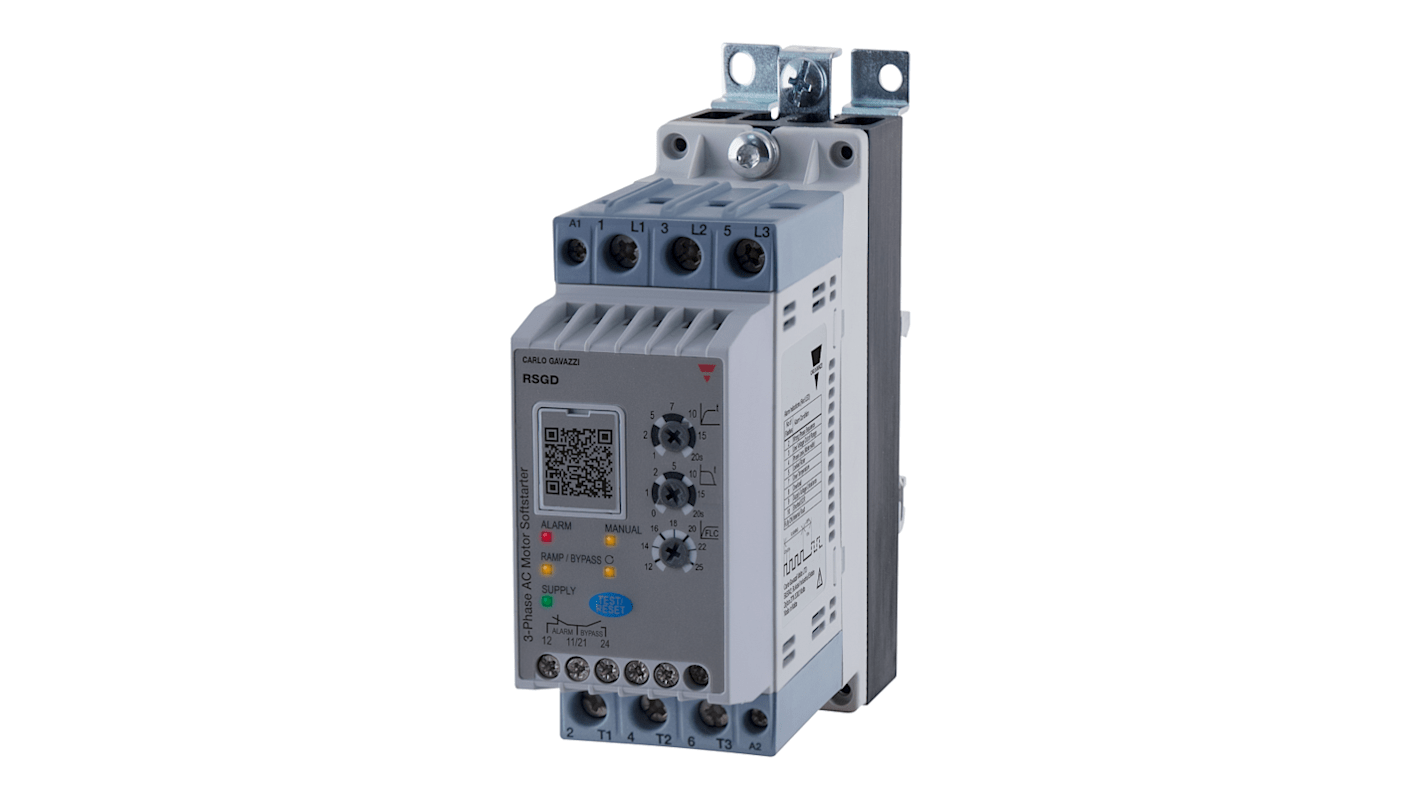

Carlo Gavazzi RSGD Soft Starter 400V, 3 Phase, IP20
- RS Stock No.:
- 263-2920
- Mfr. Part No.:
- RSGD4032E0VX210C
- Brand:
- Carlo Gavazzi
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 263-2920
- Mfr. Part No.:
- RSGD4032E0VX210C
- Brand:
- Carlo Gavazzi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Product Type | Soft Starter | |
| Number of Phases | 3 | |
| IP Rating | IP20 | |
| Mount Type | DIN Rail | |
| Maximum Supply Voltage | 400V | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | EAC, CE, cULus | |
| Overall Width | 45mm | |
| Series | RSGD | |
| Overall Depth | 137 mm | |
| Select all | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Product Type Soft Starter | ||
Number of Phases 3 | ||
IP Rating IP20 | ||
Mount Type DIN Rail | ||
Maximum Supply Voltage 400V | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals EAC, CE, cULus | ||
Overall Width 45mm | ||
Series RSGD | ||
Overall Depth 137 mm | ||
- COO (Country of Origin):
- MT
The Carlo Gavazzi three phase AC motor soft starter is an extremely compact and easy to use for AC induction motors rated up to 100 Arms. The starting parameters can be easily set-up through 3 selector switches. The integrated motor overload protection (Class 10) and Modbus communication result in a higher installation flexibility.
Easy to use
Fast installation and set-up, Only 3 settings are required (FLC, ramp-up and ramp-down)
Compact dimensions
Integrated protection
Torque control during ramp-down, Smoother deceleration of the load
Complete monitoring
