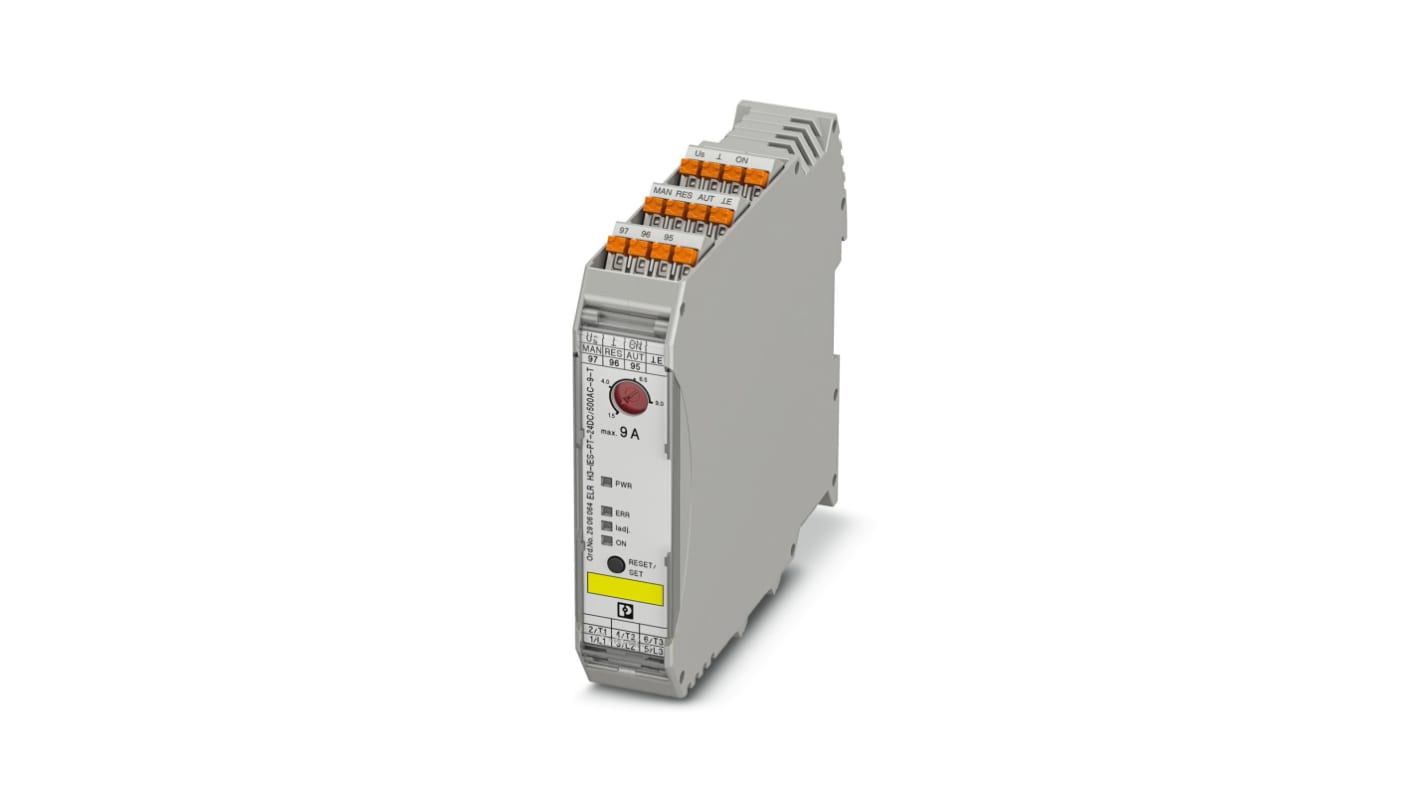

Phoenix Contact Contactron Motor Starter, DOL, 500V ac, 24 W, 3 Phase, IP20

View all Motor Starters

Subtotal (1 unit)*

£138.08

(exc. VAT)

£165.70

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 16 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£138.08

*price indicative

RS Stock No.:
130-051
Mfr. Part No.:
2906064
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Power Rating

24W

Product Type

Motor Starter

Sub Type

DOL

Number of Phases

3

Current Rating

9A

IP Rating

IP20

Mount Type

DIN Rail

Overall Length

107.5mm

Maximum Voltage

500V ac

Hazardous Area Certification

ATEX

Overall Width

22.5mm

Standards/Approvals

UL Listed, EU RoHS, EU REACH SVHC, EAC, cULus Listed, c UL Listed, CHINA RoHS, CCC, ATEX

Series

Contactron

Overall Depth

114mm

RoHS Status: Exempt

The Phoenix Contact hybrid motor starter, This motor starter is designed for starting motors, providing motor protection, and emergency stop functions. With a compact width of 22.5 mm, it offers space-saving installation. It has a safety level in accordance with IEC 61508-1: SIL 3 and ISO 13849: PL e, ensuring safe operation. The also offers a reduction in wiring and a long service life. It features 3-phase loop bridges and adjustable current for bimetal function, resulting in low-wear switching. With its higher resistance to transient voltages, it provides reliable performance. This hybrid motor starter is suitable for various applications.

22.5 mm wide for space-saving installation

Reduces wiring requirements

Long service life for reliable performance

3-phase loop bridges for efficient motor operation

Adjustable current for bimetal function

Low-wear switching for extended lifespan

Higher resistance to transient voltages for reliable operation
