Siemens ET 200SP DOL Starter, DOL, 500V ac, 0.12 kW, 3 Phase, IP20
- RS Stock No.:
- 203-2520
- Mfr. Part No.:
- 3RK1308-0AA00-0CP0
- Brand:
- Siemens
Subtotal (1 unit)*
£214.21
(exc. VAT)
£257.05
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £214.21 |
*price indicative
- RS Stock No.:
- 203-2520
- Mfr. Part No.:
- 3RK1308-0AA00-0CP0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | DOL Starter | |
| Power Rating | 0.12kW | |
| Sub Type | DOL | |
| Number of Phases | 3 | |
| Current Rating | 400mA | |
| IP Rating | IP20 | |
| Number of Poles | 3 | |
| Overall Length | 142mm | |
| Maximum Voltage | 500V ac | |
| Overall Width | 30mm | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | EAC Approved, IEC 60529, IEC 60721, CE Approved/IEC 60947-4-2, IEC 60947-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, CCC approved, IEC 61000-4-6, IEC 81346-2, UL Approved, CSA Approved | |
| Series | ET 200SP | |
| Overall Depth | 150mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type DOL Starter | ||
Power Rating 0.12kW | ||
Sub Type DOL | ||
Number of Phases 3 | ||
Current Rating 400mA | ||
IP Rating IP20 | ||
Number of Poles 3 | ||
Overall Length 142mm | ||
Maximum Voltage 500V ac | ||
Overall Width 30mm | ||
Hazardous Area Certification NO | ||
Standards/Approvals EAC Approved, IEC 60529, IEC 60721, CE Approved/IEC 60947-4-2, IEC 60947-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, CCC approved, IEC 61000-4-6, IEC 81346-2, UL Approved, CSA Approved | ||
Series ET 200SP | ||
Overall Depth 150mm | ||

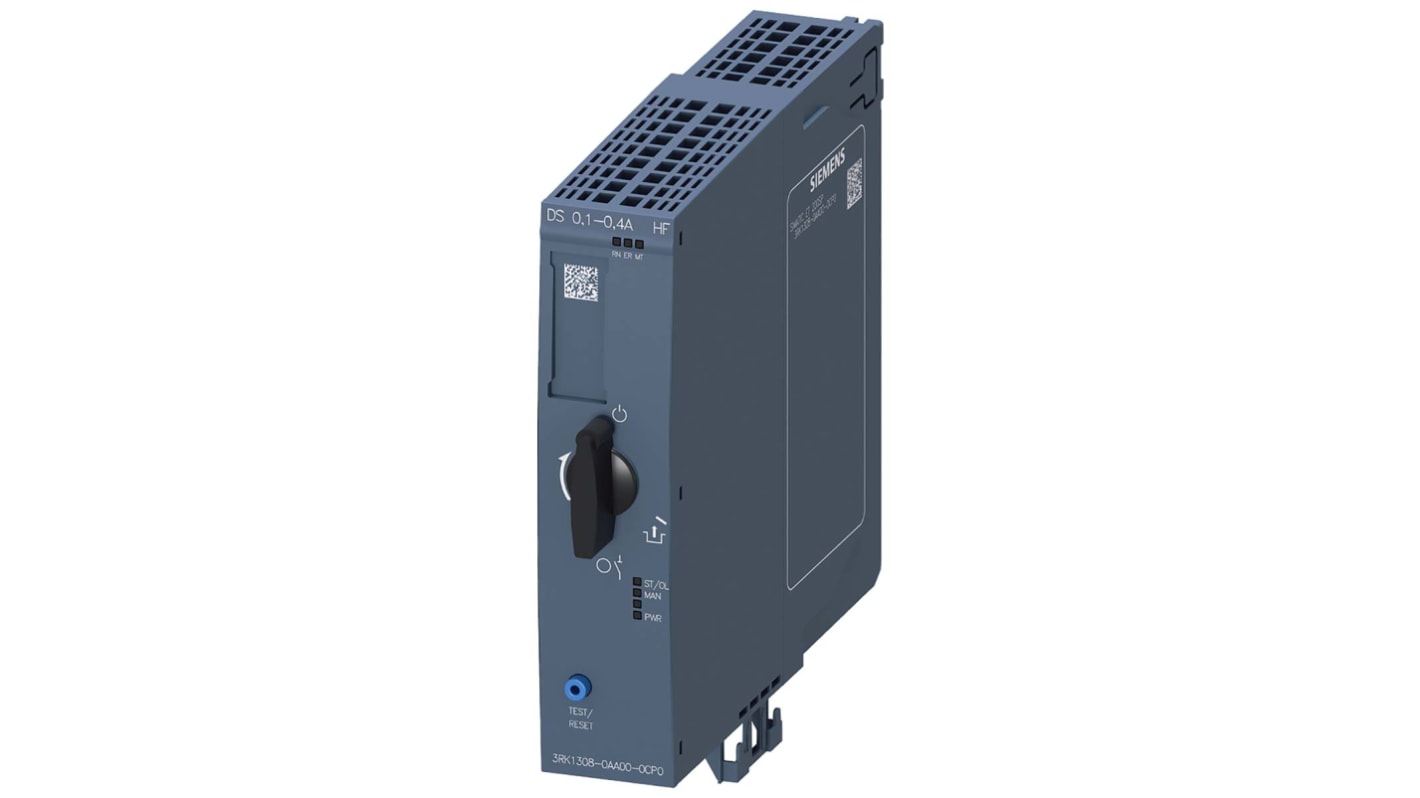

The Siemens DOL starter is a motor controller fitted with overload protection devices to prevent short circuits or the motor overheating. This controller protect overload power rating up to 0.25 kW with full line voltage of 500V.
Adjustment range is 0.1A to 4A
3 poles
IP20 rated
