Schneider Electric TeSyS GV Motor Protection Circuit Breaker, 690V, 60 °C, -20 °C

View all Motor Protection

Subtotal (1 unit)*

£102.30

(exc. VAT)

£122.76

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 17 unit(s) ready to ship
  • Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£102.30

*price indicative

RS Stock No.:
608-8337
Mfr. Part No.:
GV2L16
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Motor Protection Circuit Breaker

Motor Protection Component

Circuit Breaker

Supply Voltage

690V

Motor Protection System

Motor Protection Circuit Breaker

Series

TeSyS GV

Sensing Type

Thermal Magnetic

Overall Length

89mm

Overall Width

44.5mm

Overall Depth

97mm

IP Rating

IP20

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

60°C

Standards/Approvals

DNV GL, UL, RINA, REACH/RoHS, LROS, IECEE CB, EN/IEC 60947-4-1, EN/IEC 60947-2, EAC, CSA, CCC, BV, ATEX

Number of Poles

3

COO (Country of Origin):
FR

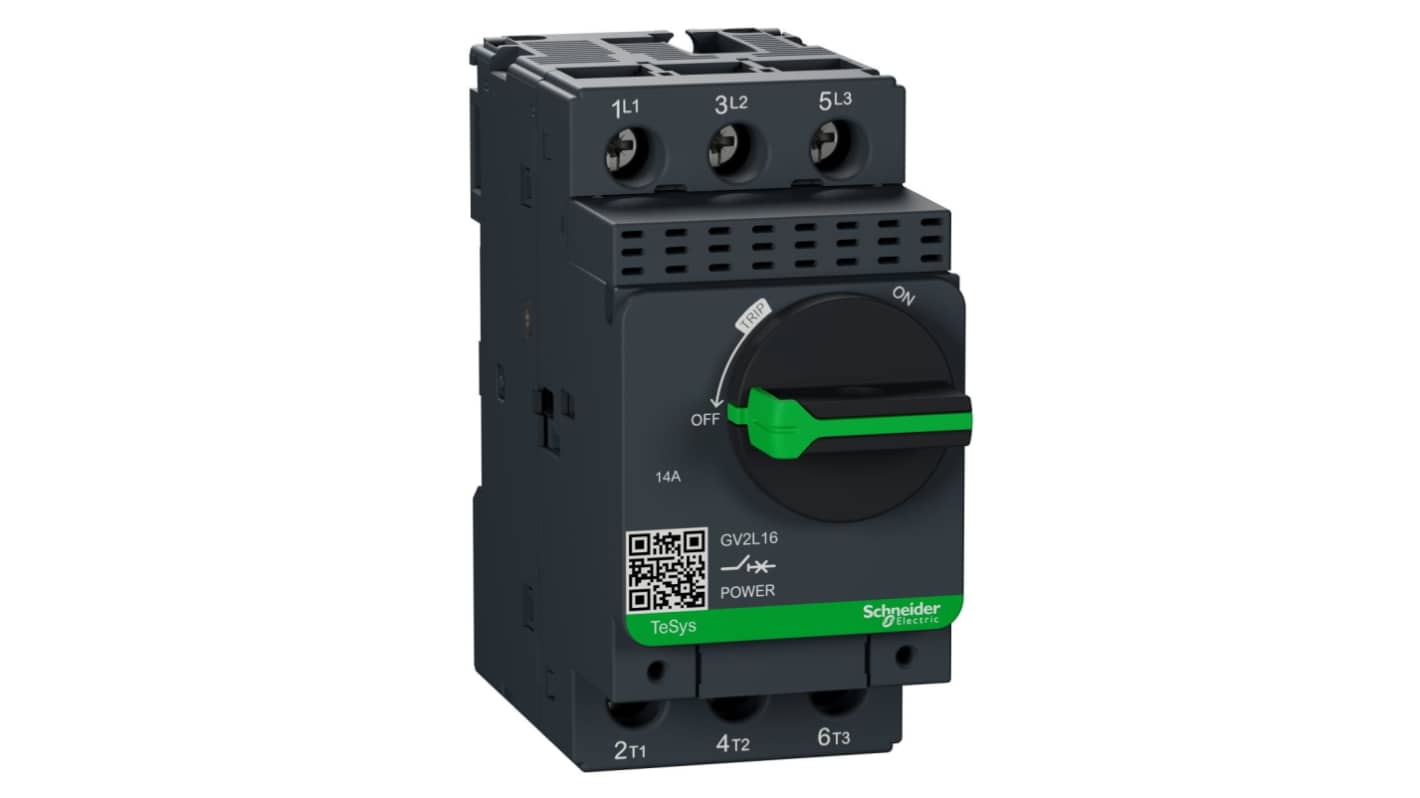

Schneider Electric GV2L Series Motor Protection Circuit Breaker, 12 to 18A Current Rating , 3 Poles - GV2L16


This motor protection circuit breaker is designed to safeguard electrical motors in various applications. Constructed under the TeSys range, this device boasts dimensions of 89mm in length, 44.5mm in width, and 97mm in depth. It is capable of operating effectively within a temperature range of -20 to 60 degrees Celsius, and offers a robust voltage rating of 690V and a breaking capacity of 4kA. This reliable unit serves as an essential component in safeguarding motors from unexpected electrical faults.

Features & Benefits


• Provides comprehensive protection for motors against overloads and short circuits
• Capable of handling current ratings from 12 to 18A
• Designed as a 3 pole circuit breaker for three-phase applications
• Features screw clamp terminals for secure and simple connections
• Suitable for a wide range of industrial motor protection solutions
• Ensures consistent performance within specified temperature ranges

Applications


• Used with three phase motors in industrial settings
• Suitable for machinery requiring reliable motor protection
• Utilised in automation systems to enhance operational safety
• Applied in electrical installations demanding high breaking capacities

What is the significance of the current rating range for this device?


The current rating range from 12 to 18A allows flexibility in protecting various motor applications, ensuring that the circuit breaker can be tailored to meet specific operational needs.

How does the temperature rating impact the performance of the device?


Operating within a temperature range of -20 to 60 degrees Celsius ensures reliability in diverse environments, thereby enhancing the longevity and stability of the protection device.

What kind of connections does this breaker support?


It employs screw clamp terminals, which provide a secure and efficient connection method, simplifying installation and maintenance while ensuring safety during operation.

How does the breaking capacity of this device affect its functionality?


A breaking capacity of 4kA ensures that the circuit breaker can handle fault conditions effectively, instantly disconnecting the circuit to mitigate risks of damage to the motor and other connected equipment.

Warning

Schneider are in the process of amending the colour of the TeSys range, from White to Black. This means that the stock you receive could be either of these colours. Please be assured that the colour change in no way affects the Fit, Form or Function of the product.”
