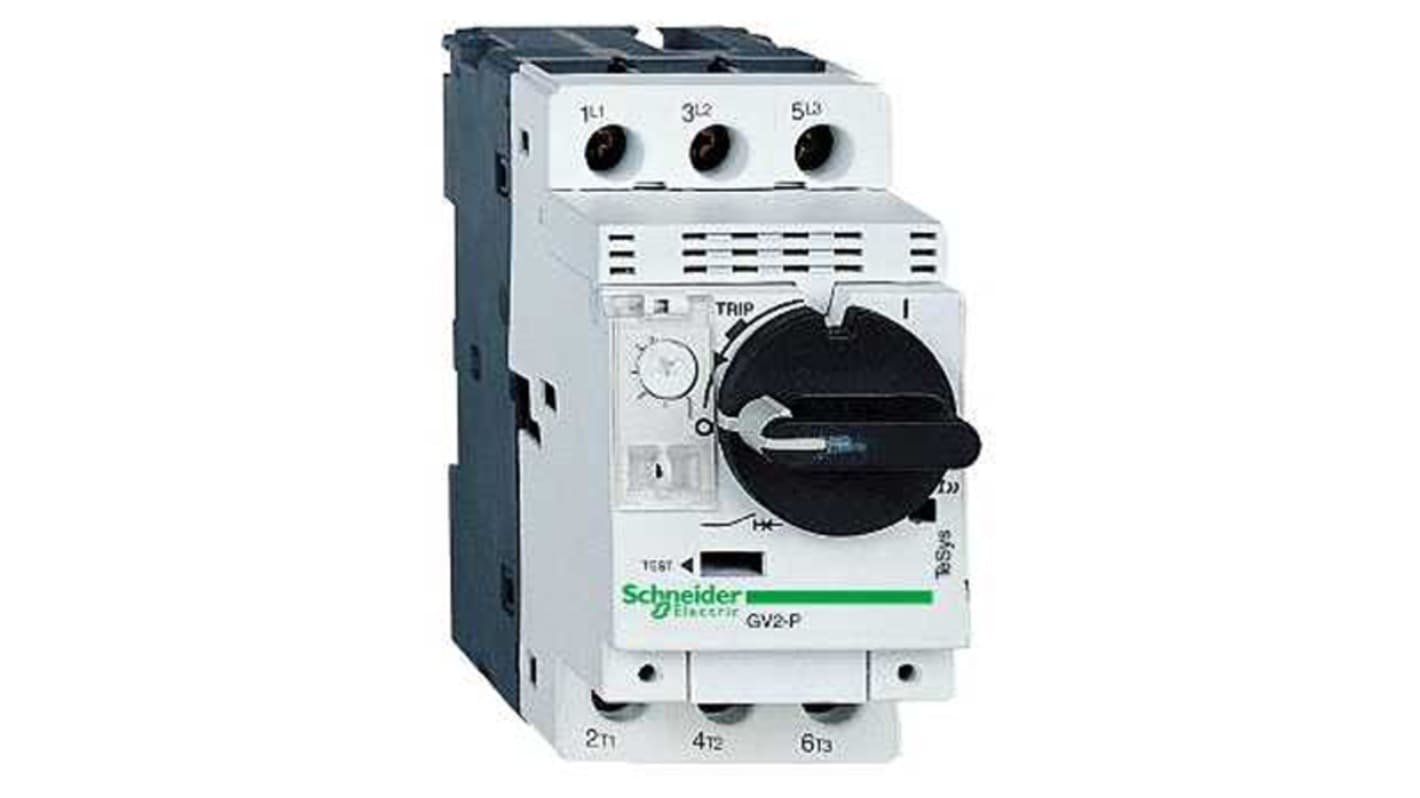

Schneider Electric 250mA, 400 mA TeSyS GV Motor Protection Circuit Breaker, 690V, 60 °C, -20 °C
- RS Stock No.:
- 608-8501
- Mfr. Part No.:
- GV2P03
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£102.64
(exc. VAT)
£123.17
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 11 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £102.64 |
*price indicative
- RS Stock No.:
- 608-8501
- Mfr. Part No.:
- GV2P03
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Motor Protection Circuit Breaker | |
| Current Rating | 250, 400mA | |
| Motor Protection Component | Circuit Breaker | |
| Supply Voltage | 690V | |
| Motor Protection System | Motor Protection Circuit Breaker | |
| Series | TeSyS GV | |
| Sensing Type | Thermal Magnetic | |
| Overall Length | 89mm | |
| Overall Width | 44.5mm | |
| Overall Depth | 97mm | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CCC, EN/IEC 60947-4-1, EN/IEC 60947-2, EAC, DNV GL, CSA, ATEX, BV, UL, RINA, REACH/RoHS, LROS, IECEE CB | |
| Number of Poles | 3 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Motor Protection Circuit Breaker | ||
Current Rating 250, 400mA | ||
Motor Protection Component Circuit Breaker | ||
Supply Voltage 690V | ||
Motor Protection System Motor Protection Circuit Breaker | ||
Series TeSyS GV | ||
Sensing Type Thermal Magnetic | ||
Overall Length 89mm | ||
Overall Width 44.5mm | ||
Overall Depth 97mm | ||
IP Rating IP20 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CCC, EN/IEC 60947-4-1, EN/IEC 60947-2, EAC, DNV GL, CSA, ATEX, BV, UL, RINA, REACH/RoHS, LROS, IECEE CB | ||
Number of Poles 3 | ||
- COO (Country of Origin):
- FR
Schneider Electric | GV2P Series | Motor Protection Circuit Breaker
Protecting your motors from faults such as an overload of high voltage, short circuits, or relay shutdowns is vital in an age where any downtime can be detrimental to a business and its operations. Schneider Electric has built a reliable, robust series known as the GV2P series of Motor Protection Circuit Breaker to act as an intermediary between your devices, protecting vital equipment in the event of unforeseen incidents.
Features and benefits:
• Flexibility in locking the N/C position via the use of 3 padlocks is available.
• Motor Protection Switch rotary knob style control type.
• 100,000 cycles of electrical/mechanical durability.
• Light-weight, robust and compact in its design, the GV2P series is perfect for tight spaces.
• If used on its own, the MPCB has manual or local control. Combined with a contactor and you have access to an automatic & remote control.
• Spring terminal & Screw clamping is available.
• Thermal- magnetic trip unit technology.
Protection ratings & Safety features:
• Live parts are inaccessible to any direct contact from external users, improving the safety of operations around the MPCB.
• Thermal-magnetic trip technology to help protect the unit built into the circuit-breaker.
• EN 60204, IEC 60947-1, IEC 60947-2, IEC 60947-4-1 standard ratings (full list in the datasheet).
• Certified ATEX, BV, CCC. CSA and more (full list in the datasheet).
• IP20 degree of protection, conforming to IEC 60529 - further protection against solid objects e.g a persons fingers.
• IK04 degree of protection - impacts of up to 0.5 Joules to the device offer limited protection.
Applications:
• Electrical Motor Control and protection
• Easily assembled into any configuration by screw or clip-fixing onto mounting rails.
How do you select the right Motor Protection Circuit Breaker?
MPCBs are more critical now than ever. Most infrastructure now relies on a motor behind the scenes to power critical uninterruptible systems such as heating, ventilation, cooling all of which we take for granted. These systems are vital in ensuring business productivity and therefore must be protected against overcurrent, thermal overloads and much more.
To select the right MPCB, consider the systems you and your business rely upon. Checking the features and benefits of each MPCB will prove invaluable when deciding what critical infrastructure you wish to protect.
