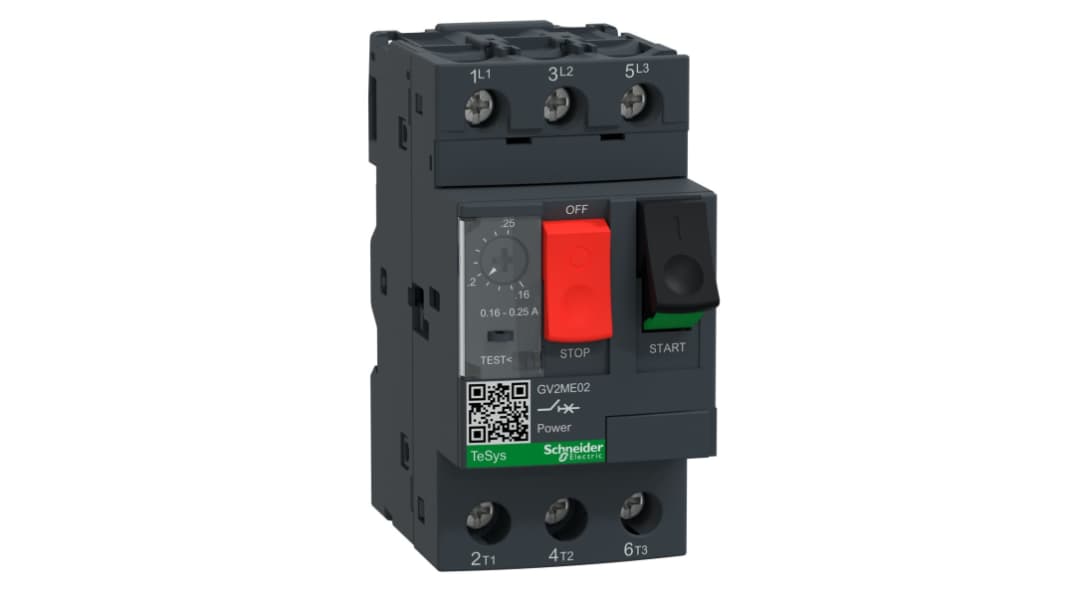

Schneider Electric 0.16 → 0.25 A TeSys Motor Protection Circuit Breaker, 690 V
- RS Stock No.:
- 395-0324
- Mfr. Part No.:
- GV2ME02
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£62.12
(exc. VAT)
£74.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
- Plus 9 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £62.12 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 395-0324
- Mfr. Part No.:
- GV2ME02
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Current Rating | 0.16 → 0.25 A | |
| Range | TeSys | |
| Motor Protection Component | Circuit Breaker | |
| Supply Voltage | 690 V | |
| Series | GV2ME | |
| Overall Length | 89mm | |
| Overall Width | 45mm | |
| Overall Depth | 78.5mm | |
| Minimum Operating Temperature | -20°C | |
| Voltage Rating | 690 V ac | |
| Maximum Operating Temperature | +60°C | |
| Terminal Type | Screw | |
| Number of Poles | 3 | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
| Breaking Capacity | 3 kA | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Current Rating 0.16 → 0.25 A | ||
Range TeSys | ||
Motor Protection Component Circuit Breaker | ||
Supply Voltage 690 V | ||
Series GV2ME | ||
Overall Length 89mm | ||
Overall Width 45mm | ||
Overall Depth 78.5mm | ||
Minimum Operating Temperature -20°C | ||
Voltage Rating 690 V ac | ||
Maximum Operating Temperature +60°C | ||
Terminal Type Screw | ||
Number of Poles 3 | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Breaking Capacity 3 kA | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Schneider Electric GV2ME02
TeSys GV motor circuit breaker, 3 poles (3P), 0.25A/690V, for 3-phase motor applications 0.06kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.16-0.25A, magnetic tripping at 9xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Features & Benefits
• 690V AC rating means it's suitable for use with high-voltage industrial systems
• Dimensions of 89 (H) x 45 (W) x 78.2mm (D) fit neatly into crowded panels
• IP20-rated housing is touch-proof and shields against objects larger than 12.5mm, such as small tools
• Dimensions of 89 (H) x 45 (W) x 78.2mm (D) fit neatly into crowded panels
• IP20-rated housing is touch-proof and shields against objects larger than 12.5mm, such as small tools
Applications
• Industrial pumps and fans
• Textile industry
• Agricultural equipment
• Textile industry
• Agricultural equipment
Can I easily cut the power supply with this motor protection circuit breaker?
Yes, it has front-facing stop and start buttons, which means you can quickly halt a process if something goes wrong. You can also use these to periodically test the breaker.
