Schneider Electric 630 mA, 1A GV2ME Motor Protection Circuit Breaker, 690V, 60 °C, -20 °C
- RS Stock No.:
- 395-0295
- Distrelec Article No.:
- 136-22-670
- Mfr. Part No.:
- GV2ME05
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£75.99
(exc. VAT)
£91.19
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 91 unit(s) ready to ship
- Plus 66 unit(s) ready to ship from another location
- Plus 19 unit(s) shipping from 22 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £75.99 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS Stock No.:
- 395-0295
- Distrelec Article No.:
- 136-22-670
- Mfr. Part No.:
- GV2ME05
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Current Rating | 630, 1mA | |
| Product Type | Motor Protection Circuit Breaker | |
| Motor Protection Component | Circuit Breaker | |
| Supply Voltage | 690V | |
| Motor Protection System | Motor Protection Circuit Breaker | |
| Series | GV2ME | |
| Sensing Type | Thermal Magnetic | |
| Overall Length | 89mm | |
| Overall Width | 45mm | |
| Overall Depth | 78.5mm | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UL, RINA, REACH/RoHS, LROS, IECEE CB, EN/IEC 60947-4-1, EN/IEC 60947-2, EAC, DNV GL, CSA, CCC, BV, ATEX | |
| Number of Poles | 3 | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Current Rating 630, 1mA | ||
Product Type Motor Protection Circuit Breaker | ||
Motor Protection Component Circuit Breaker | ||
Supply Voltage 690V | ||
Motor Protection System Motor Protection Circuit Breaker | ||
Series GV2ME | ||
Sensing Type Thermal Magnetic | ||
Overall Length 89mm | ||
Overall Width 45mm | ||
Overall Depth 78.5mm | ||
IP Rating IP20 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UL, RINA, REACH/RoHS, LROS, IECEE CB, EN/IEC 60947-4-1, EN/IEC 60947-2, EAC, DNV GL, CSA, CCC, BV, ATEX | ||
Number of Poles 3 | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

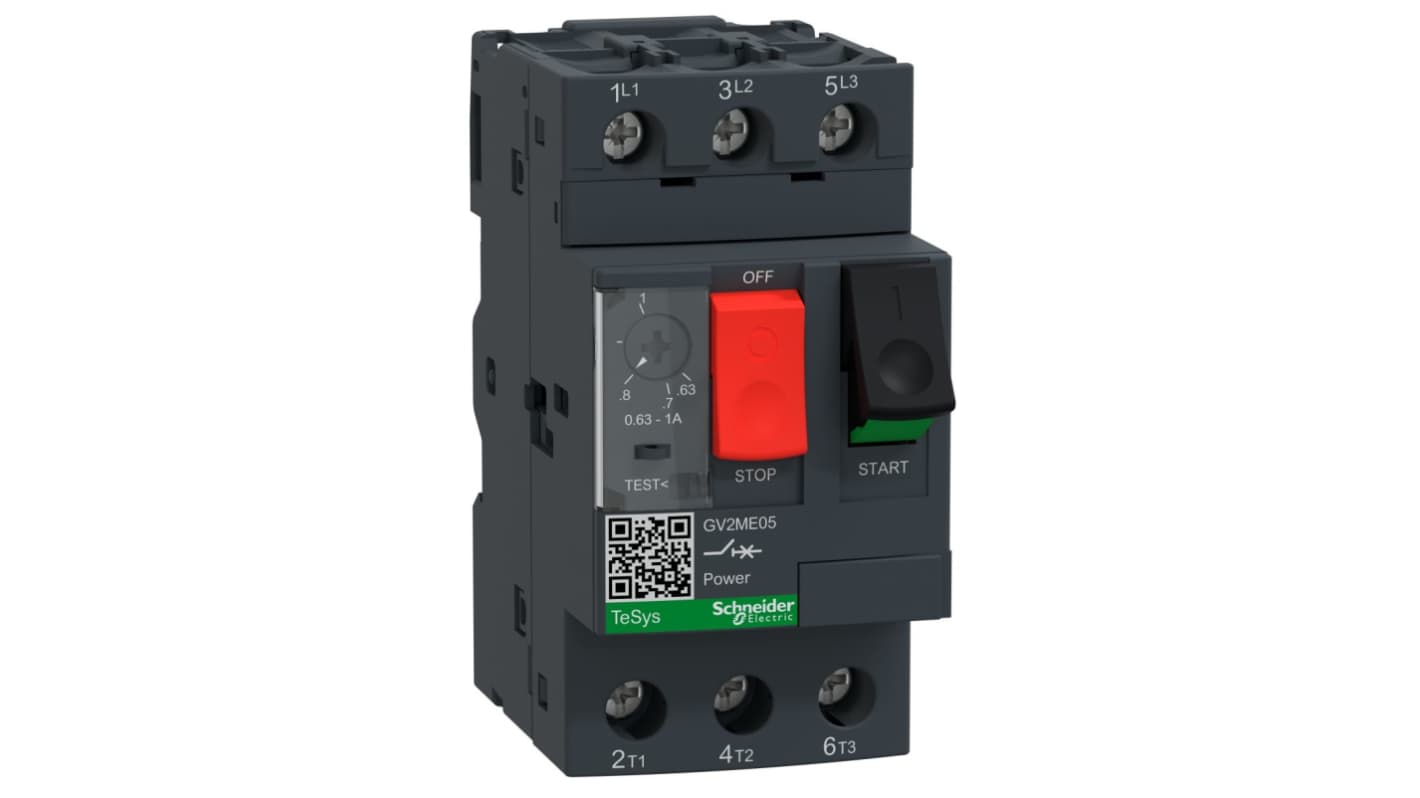

Schneider Electric GV2ME Series Motor Protection Circuit Breaker, 0.63 to 1A Current Rating, 690V Voltage Rating - GV2ME05
This motor protection circuit breaker is an essential component designed for safeguarding motors in automation and electrical applications. It belongs to the TeSys range, featuring three poles and a current rating adjustable from 0.63 A to 1 A. With a compact design of 89 mm in height, 45 mm in width, and 78.5 mm in depth, this circuit breaker offers reliable performance and ease of installation.
Features & Benefits
• Thermal-magnetic trip unit ensures reliable overload protection
• Rated at 690V AC, ideal for high voltage applications
• 100 kA breaking capacity for enhanced fault protection
• Screw clamp terminals allow for sturdy and secure connections
• Adjustable thermal protection range from 0.63 A to 1 A
• Designed for continuous duty, supporting AC network types
Applications
• Used for motor circuit protection in industrial systems
• Ideal for integration in electrical panels and distribution boards
• Suitable for requiring a three-pole configuration
• Utilised in environments with a temperature range of -20 °C to +60 °C
• Employed in both fixed and modular electrical setups
What is the maximum breaking capacity of this circuit breaker?
It offers a maximum breaking capacity of 100 kA, ensuring robust fault protection across multiple voltage levels.
How can the thermal protection be adjusted for specific motor requirements?
The thermal protection can be finely adjusted within the range of 0.63 A to 1A, allowing for tailored settings according to motor specifications.
What kind of terminals does it feature, and how do they affect installation?
It is equipped with screw clamp terminals, which facilitate secure and simple connections, making installation straightforward and reliable.
What type of network frequency does it operate with?
This device is suitable for network frequencies of 50/60 Hz, conforming to relevant IEC standards for electrical reliability.
How does the product perform in various environmental conditions?
It is designed to function optimally within an ambient temperature range of -20 °C to +60 °C, ensuring durability and reliability in challenging conditions.
