Infineon TLE94104EPXUMA1, DC Motor, Stepper Motor Driver IC 14-Pin, TSDSO
- RS Stock No.:
- 258-4154
- Mfr. Part No.:
- TLE94104EPXUMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 reel of 3000 units)*
£1,779.00
(exc. VAT)
£2,136.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
3000 - 3000 | £0.593 | £1,779.00 |
6000 - 6000 | £0.534 | £1,602.00 |
9000 + | £0.496 | £1,488.00 |
*price indicative
- RS Stock No.:
- 258-4154
- Mfr. Part No.:
- TLE94104EPXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Motor Type | DC Motor, Stepper | |
Configuration | Half Bridge | |
Output Configuration | Half Bridge | |
Maximum Supply Voltage | 20 V | |
Mounting Type | Surface Mount | |
Package Type | TSDSO | |
Pin Count | 14 | |
Select all | ||
---|---|---|
Brand Infineon | ||
Motor Type DC Motor, Stepper | ||
Configuration Half Bridge | ||
Output Configuration Half Bridge | ||
Maximum Supply Voltage 20 V | ||
Mounting Type Surface Mount | ||
Package Type TSDSO | ||
Pin Count 14 | ||

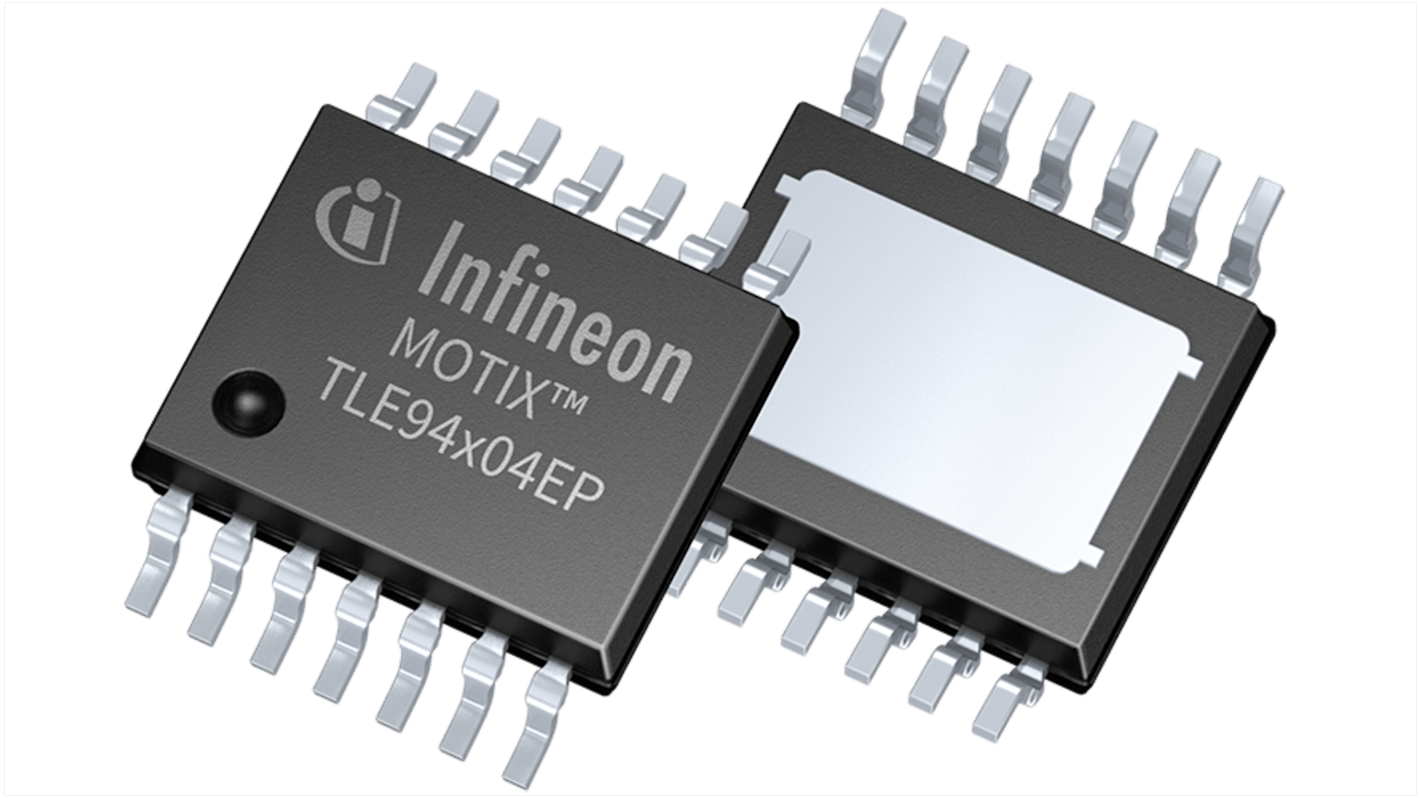

The MOTIX™ TLE9410EP is a protected four-fold half-bridge driver designed especially for automotive motion control applications
It is part of a larger family offering half-bridge drivers from three outputs to twelve outputs with direct interface or SPI interface. The half bridge drivers are designed to drive DC motor loads in sequential or parallel operation. Operation modes forward (cw), reverse (ccw), brake and high impedance are controlled from a 16-bit SPI interface. It offers diagnosis features such as short circuit, open load, power supply failure and overtemperature detection. In combination with its low quiescent current, this device is attractive among others for automotive applications. The small fine pitch exposed pad package, PG-TSDSO-14, provides good thermal performance and reduces PCB-board space and costs.
Summary of Features
Four half bridge power outputs
Very low power consumption in sleep mode
3.3V / 5V compatible inputs with hysteresis
All outputs with overload and short circuit protection
Independently diagnosable outputs (overcurrent, open load)
Open load diagnostics in ON-state for all high-side and low-side
16-bit Standard SPI interface with daisy chain and in-frame response capability for control and diagnosis
Fast diagnosis with the global error flag
Overtemperature pre-warning and protection
Over- and Undervoltage lockout
Cross-current protection
Very low power consumption in sleep mode
3.3V / 5V compatible inputs with hysteresis
All outputs with overload and short circuit protection
Independently diagnosable outputs (overcurrent, open load)
Open load diagnostics in ON-state for all high-side and low-side
16-bit Standard SPI interface with daisy chain and in-frame response capability for control and diagnosis
Fast diagnosis with the global error flag
Overtemperature pre-warning and protection
Over- and Undervoltage lockout
Cross-current protection
Potential Applications
HVAC Flap DC motors
Monostable and bistable Relays
Side mirror x-y adjustment and mirror fold
Monostable and bistable Relays
Side mirror x-y adjustment and mirror fold
