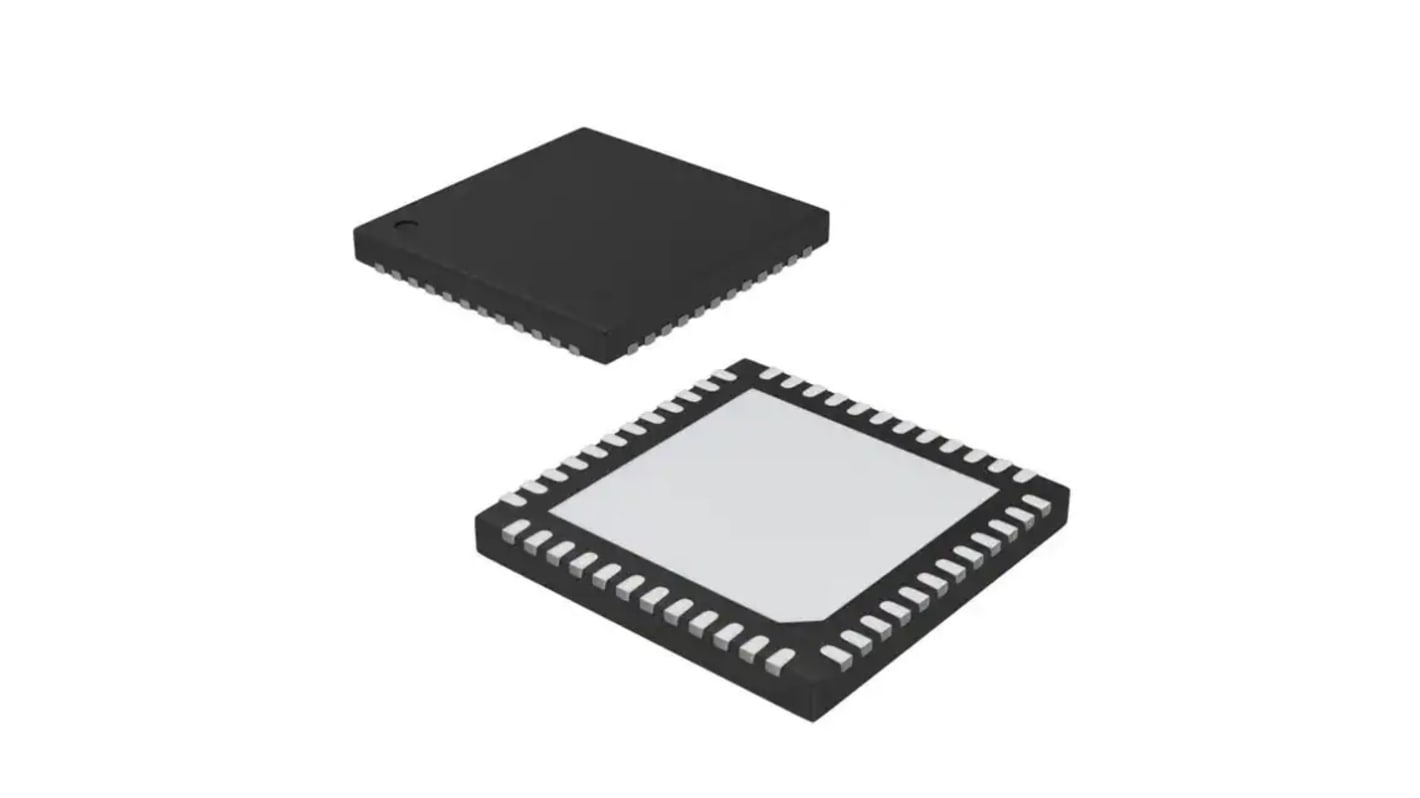

ROHM BD64547MUV-E2, Stepper Motor Driver IC 48-Pin, VQFN
- RS Stock No.:
- 235-2574
- Mfr. Part No.:
- BD64547MUV-E2
- Brand:
- ROHM
Subtotal (1 reel of 1500 units)*
£2,460.00
(exc. VAT)
£2,955.00
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 + | £1.64 | £2,460.00 |
*price indicative
- RS Stock No.:
- 235-2574
- Mfr. Part No.:
- BD64547MUV-E2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Motor Type | Stepper | |
| Output Configuration | H Bridge | |
| Maximum Output Current | 2A | |
| Maximum Supply Voltage | 50 V | |
| Mounting Type | Surface Mount | |
| Package Type | VQFN | |
| Pin Count | 48 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Motor Type Stepper | ||
Output Configuration H Bridge | ||
Maximum Output Current 2A | ||
Maximum Supply Voltage 50 V | ||
Mounting Type Surface Mount | ||
Package Type VQFN | ||
Pin Count 48 | ||
The ROHM system motor driver with integrated 2 channel H-bridge driver, 2 channel step-down switching regulator with built-in power MOS, and reset output. It is mainly used in inkjet printers and photo printers.
Built-in regular current chopping function
3-line serial type interface
Thermal shutdown function
Power ON reset
VBB drop detection function
Ultra-thin type and high heat dissipation package
3-line serial type interface
Thermal shutdown function
Power ON reset
VBB drop detection function
Ultra-thin type and high heat dissipation package
