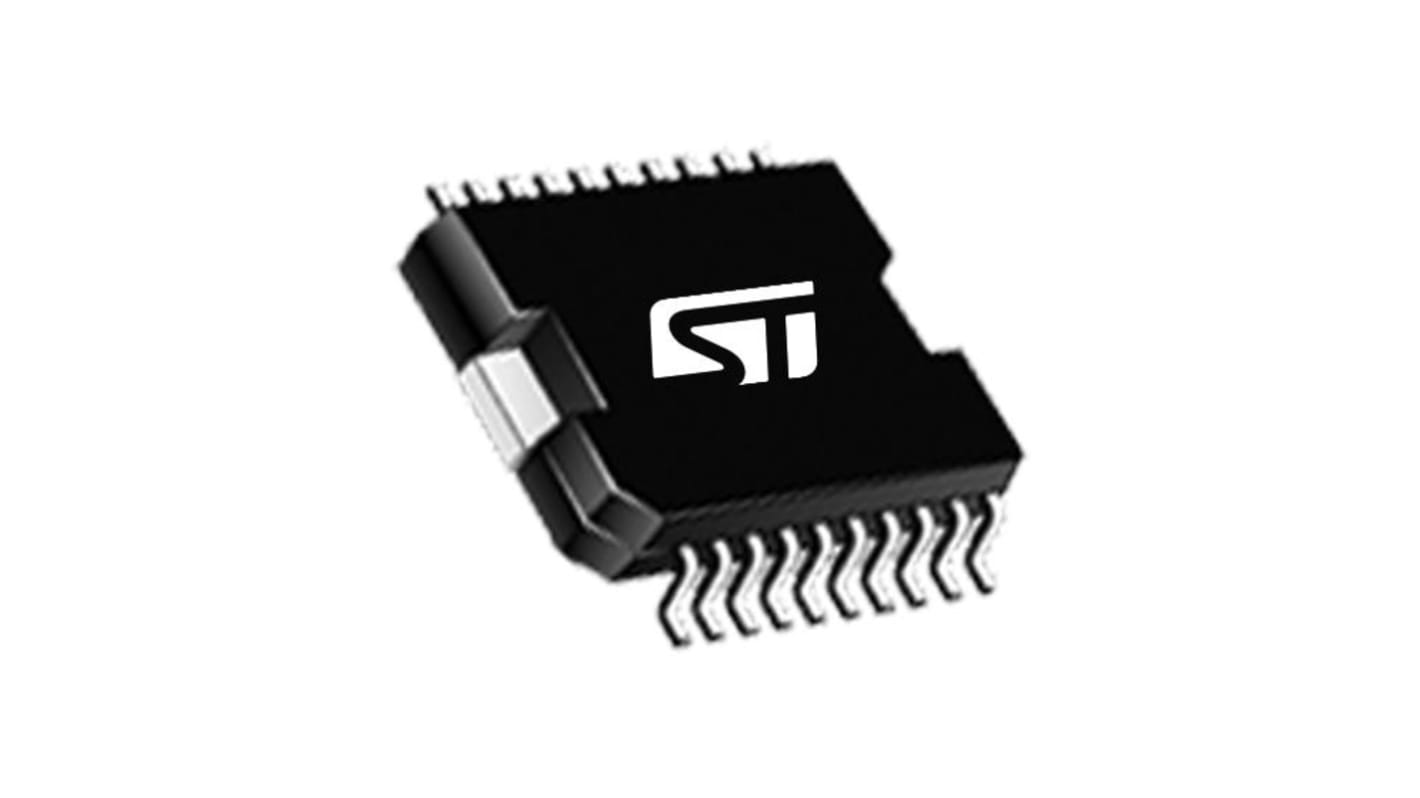

STMicroelectronics L6205PD013TR, Stepper, DC Motor Motor Driver IC 20-Pin, PowerSO-20

View all Motor Driver ICs
Bulk discount available

Subtotal (1 unit)*

£6.21

(exc. VAT)

£7.45

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 600 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£6.21
10 - 99£5.59
100 +£5.16

*price indicative

Packaging Options:
RS Stock No.:
152-002
Mfr. Part No.:
L6205PD013TR
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Motor Type

Stepper, DC Motor

Product Type

Motor Driver IC

Configuration

Full Bridge

Mount Type

Surface

Package Type

PowerSO-20

Output Current

2.5A

Pin Count

20

Minimum Supply Voltage

8V

Maximum Supply Voltage

52V

Typical Switching Frequency

100kHz

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Width

14.5 mm

Series

L205

Height

3.6mm

Length

16mm

Standards/Approvals

RoHS

Supply Current

10mA

Automotive Standard

No

COO (Country of Origin):
MY
The STMicroelectronics DMOS Dual Full Bridge designed for motor control applications, realized in MultiPower BCD technology, which combines isolated DMOS Power Transistors with CMOS and bipolar circuits on the same chip. Available in PowerDIP20 (16+2+2), PowerSO20 and SO20(16+2+2) packages, the L6205 features a non-dissipative protection of the high side Power MOSFETs and thermal shutdown.

Paralleled operation

Cross conduction protection

Thermal shutdown

Under voltage lockout

Integrated fast free wheeling diodes
