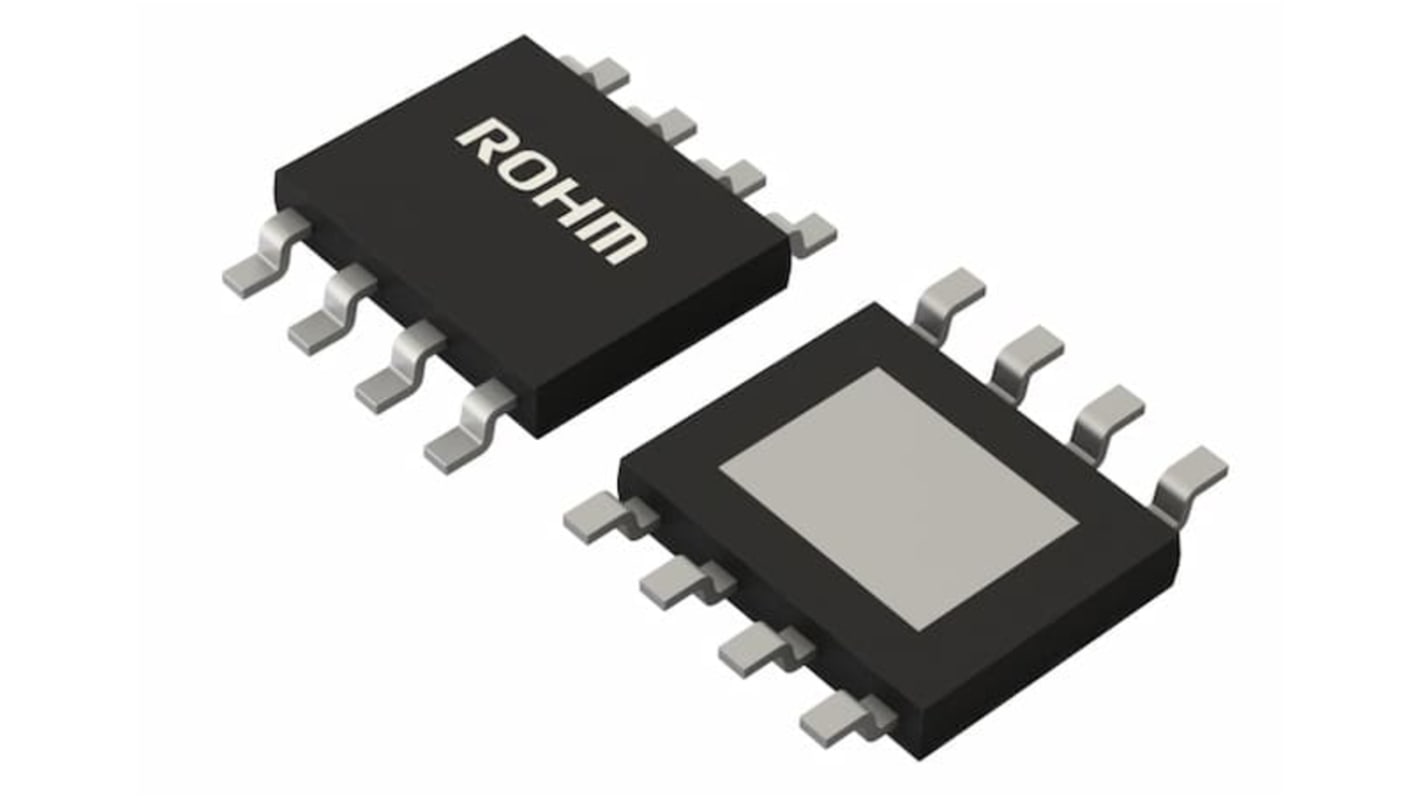

ROHM, Brushed DC Motor Motor Driver IC 8-Pin, HTSOP-J8
- RS Stock No.:
- 255-7666
- Mfr. Part No.:
- BD62130AEFJ-E2
- Brand:
- ROHM
Subtotal (1 reel of 2500 units)*
£2,685.00
(exc. VAT)
£3,222.50
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £1.074 | £2,685.00 |
*price indicative
- RS Stock No.:
- 255-7666
- Mfr. Part No.:
- BD62130AEFJ-E2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Motor Type | Brushed DC Motor | |
| Product Type | Motor Driver IC | |
| Configuration | Half Bridge | |
| Mount Type | Surface | |
| Package Type | HTSOP-J8 | |
| Pin Count | 8 | |
| Output Current | 3A | |
| Maximum Supply Voltage | 36V | |
| Minimum Supply Voltage | 8V | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 1mm | |
| Standards/Approvals | RoHS | |
| Series | BD62130AEFJ | |
| Length | 6mm | |
| Automotive Standard | No | |
| Supply Current | 1.4mA | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Motor Type Brushed DC Motor | ||
Product Type Motor Driver IC | ||
Configuration Half Bridge | ||
Mount Type Surface | ||
Package Type HTSOP-J8 | ||
Pin Count 8 | ||
Output Current 3A | ||
Maximum Supply Voltage 36V | ||
Minimum Supply Voltage 8V | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Height 1mm | ||
Standards/Approvals RoHS | ||
Series BD62130AEFJ | ||
Length 6mm | ||
Automotive Standard No | ||
Supply Current 1.4mA | ||
The ROHM DC brush motor driver is a built-in 1 channel H bridge motor driver for DC brush motors. This driver can drive high efficiency by direct PWM. There are built in protection circuits in this IC. Each protection circuit operation contributes to set high reliability.
Single power supply input (rated voltage of 36 V)
Rated output current (peak): 3.0 A (4.0 A)
Low ON-resistance DMOS output
Direct PWM control
Drive DC brush motor
Built-in logic input pull-down resistor
Cross-conduction prevention circuit
Thermal Shutdown
