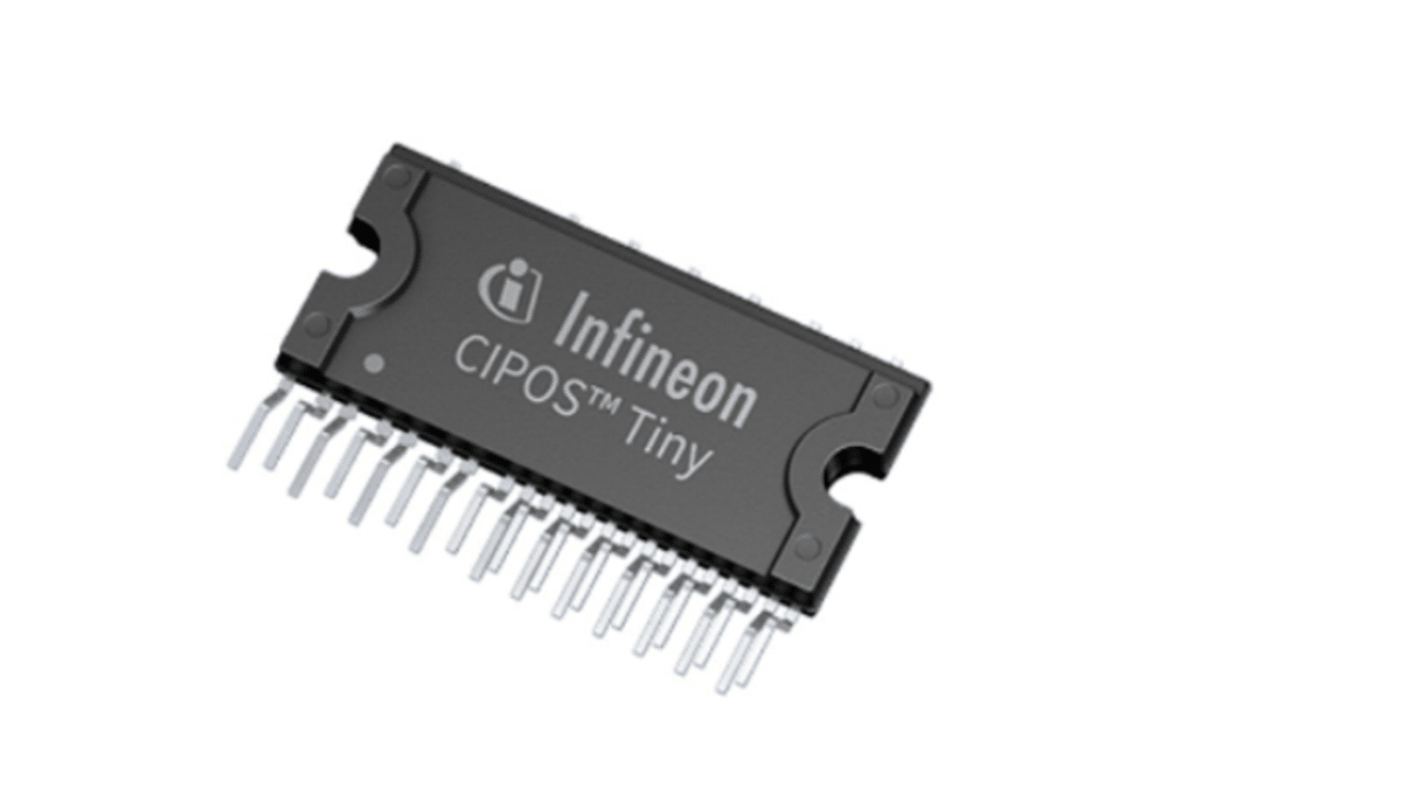

Infineon, AC Motor Integrated Power Hybrid IC, 600 V 10 A 22-Pin, SIP
- RS Stock No.:
- 226-6129
- Mfr. Part No.:
- IM393M6FXKLA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 15 units)*
£102.135
(exc. VAT)
£122.565
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 14 February 2028
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 15 - 15 | £6.809 | £102.14 |
| 30 - 60 | £6.469 | £97.04 |
| 75 + | £6.197 | £92.96 |
*price indicative
- RS Stock No.:
- 226-6129
- Mfr. Part No.:
- IM393M6FXKLA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Integrated Power Hybrid IC | |
| Motor Type | AC Motor | |
| Configuration | 3 Phase | |
| Maximum IGBT Collector Current | 10A | |
| Maximum Collector Emitter Voltage Vceo | 600V | |
| Mount Type | Through Hole | |
| Package Type | SIP | |
| Pin Count | 22 | |
| Output Current | 10A | |
| Maximum Supply Voltage | 17.5V | |
| Minimum Supply Voltage | 12.5V | |
| Minimum Operating Temperature | -40°C | |
| Typical Switching Frequency | 20kHz | |
| Maximum Operating Temperature | 150°C | |
| Length | 32mm | |
| Series | IM393-M6F | |
| Width | 15mm | |
| Standards/Approvals | UL | |
| Height | 4.45mm | |
| Inverter Power Rating | 600W | |
| Automotive Standard | No | |
| Supply Current | 3.2mA | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Integrated Power Hybrid IC | ||
Motor Type AC Motor | ||
Configuration 3 Phase | ||
Maximum IGBT Collector Current 10A | ||
Maximum Collector Emitter Voltage Vceo 600V | ||
Mount Type Through Hole | ||
Package Type SIP | ||
Pin Count 22 | ||
Output Current 10A | ||
Maximum Supply Voltage 17.5V | ||
Minimum Supply Voltage 12.5V | ||
Minimum Operating Temperature -40°C | ||
Typical Switching Frequency 20kHz | ||
Maximum Operating Temperature 150°C | ||
Length 32mm | ||
Series IM393-M6F | ||
Width 15mm | ||
Standards/Approvals UL | ||
Height 4.45mm | ||
Inverter Power Rating 600W | ||
Automotive Standard No | ||
Supply Current 3.2mA | ||
The Infineon IM393-M6F is a 15A, 600V integrated power hybrid IC with open emitter pins for advanced appliance motor drives applications such as energy efficient fan and pumps. This technology offers an extremely compact, high performance AC motor-driver in a single isolated package to simplify design. It is built-in high precision temperature monitor and over-current protection feature, along with the short-circuit rated IGBTs.
Matched propagation delay for all channels
3.3V Schmitt-triggered input logic
Cross-conduction prevention logic
Isolation 2000VRMS min and CTI > 600
