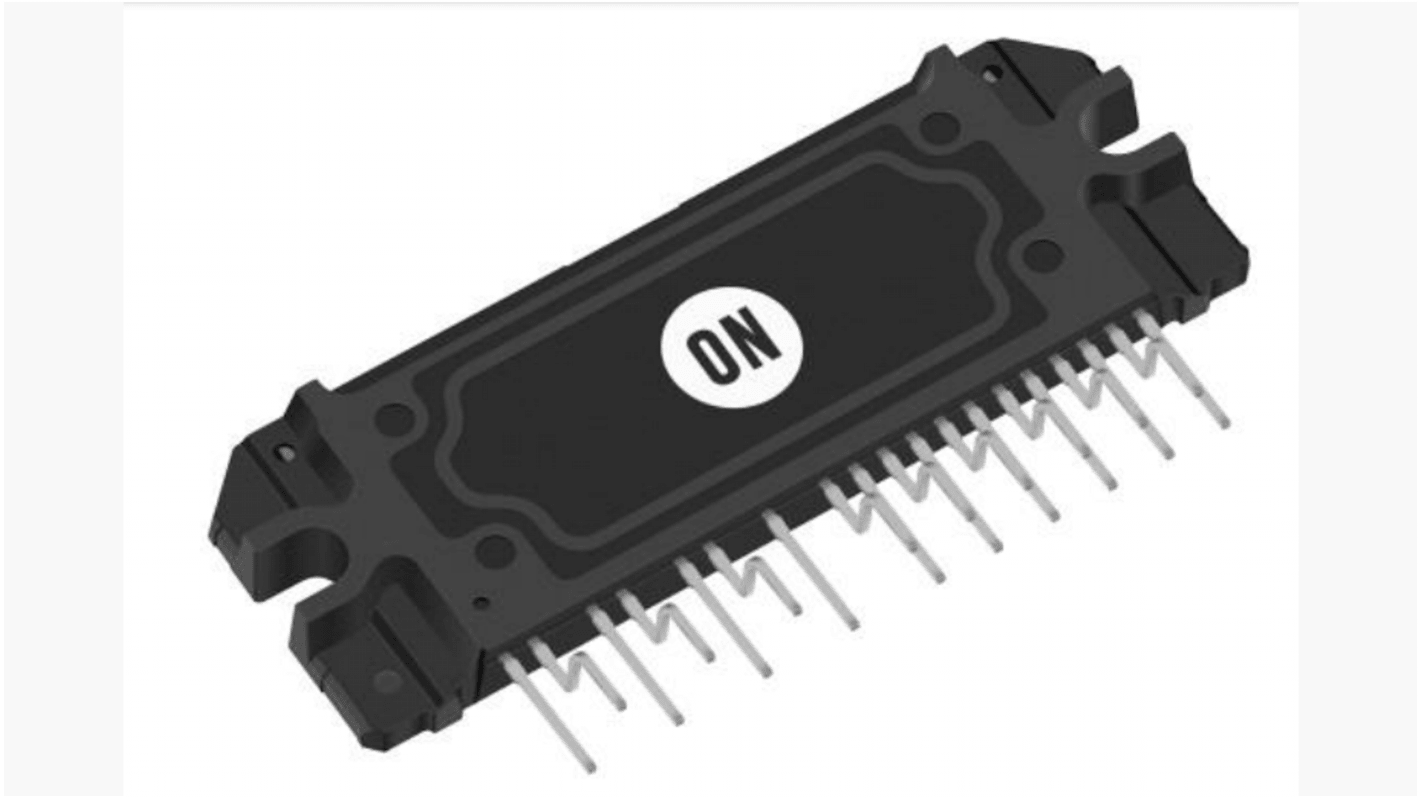

onsemi STK544UC63K-E, Brushless DC Motor, AC Motor Driver IC, 600 V 23-Pin, SIP
- RS Stock No.:
- 189-0522
- Mfr. Part No.:
- STK544UC63K-E
- Brand:
- onsemi
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£16.48
(exc. VAT)
£19.78
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 07 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £16.48 |
| 10 + | £14.21 |
*price indicative
- RS Stock No.:
- 189-0522
- Mfr. Part No.:
- STK544UC63K-E
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Motor Type | Brushless DC Motor, AC | |
| Product Type | Motor Driver IC | |
| Configuration | 3 Phase | |
| Maximum Collector Emitter Voltage Vceo | 600V | |
| Mount Type | Surface | |
| Package Type | SIP | |
| Pin Count | 23 | |
| Output Current | 20A | |
| Minimum Supply Voltage | 0V | |
| Maximum Supply Voltage | 450V | |
| Typical Switching Frequency | 20kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Height | 5.5mm | |
| Length | 62.5mm | |
| Series | STK544 | |
| Standards/Approvals | No | |
| Inverter Power Rating | 20W | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Motor Type Brushless DC Motor, AC | ||
Product Type Motor Driver IC | ||
Configuration 3 Phase | ||
Maximum Collector Emitter Voltage Vceo 600V | ||
Mount Type Surface | ||
Package Type SIP | ||
Pin Count 23 | ||
Output Current 20A | ||
Minimum Supply Voltage 0V | ||
Maximum Supply Voltage 450V | ||
Typical Switching Frequency 20kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Height 5.5mm | ||
Length 62.5mm | ||
Series STK544 | ||
Standards/Approvals No | ||
Inverter Power Rating 20W | ||
Automotive Standard No | ||
- COO (Country of Origin):
- VN
This Inverter IPM (Intelligent Power Module) includes the output stage of a 3-phase inverter, pre-drive circuits, bootstrap circuits, and protection circuits in one package.
Over-current Protection Circuit
Under-voltage LockOut for all channels
Upper/lower ON prevention circuit
Thermistor for case temperature monitor
Direct input of CMOS level control signals without an insulating is possible
Having separate emitters and VITRIP terminal for protection
All IGBT Gate shutdown at abnormal for safety
System malfunction can reduce by noise
High precision monitor is possible
No need photo-coupler design
Applications
Motor Driver modules
End Products
Motor controll system
Industrial /General Control System
HVAC
Clothes Washer /Dryer
Dish Washer
Refrigerator
