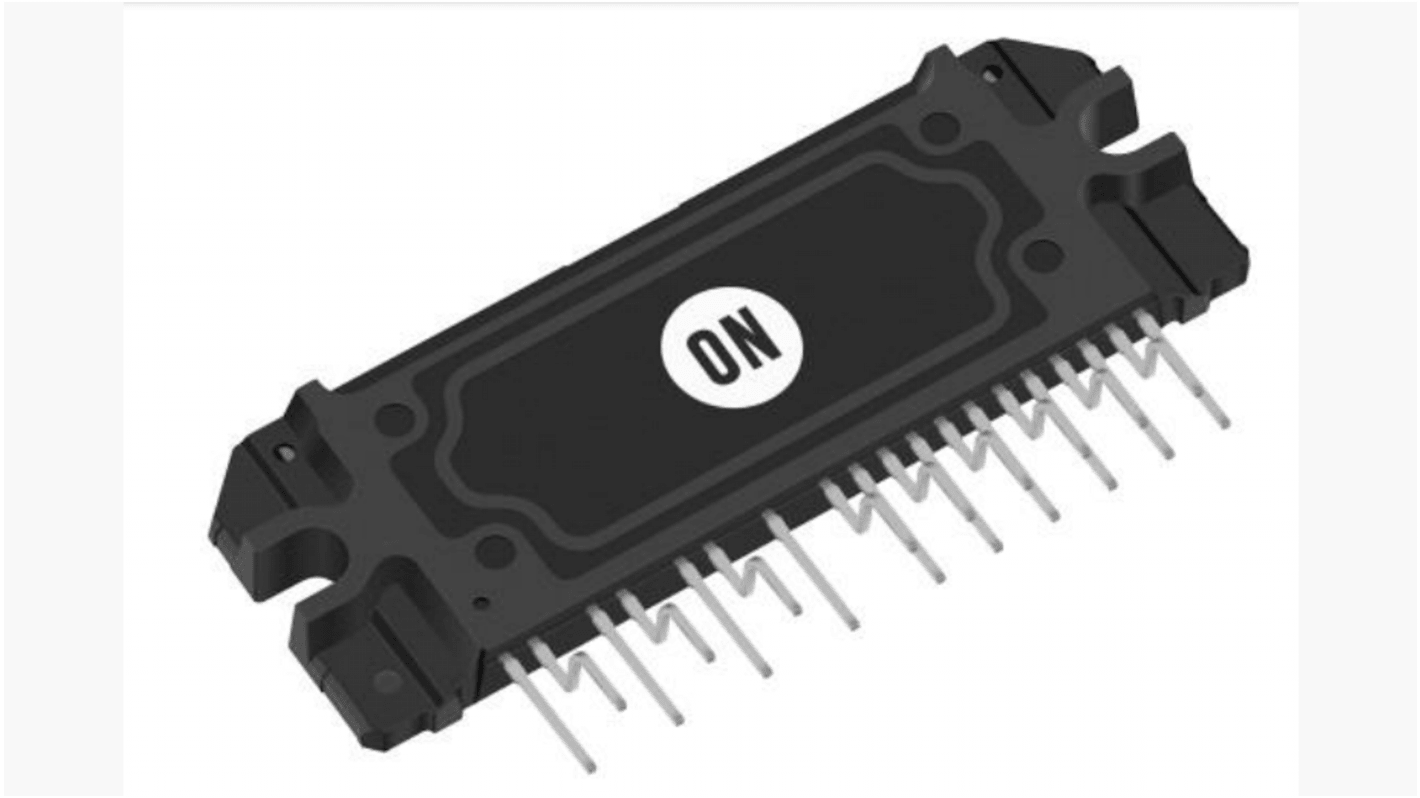

onsemi STK544UC63K-E, AC Induction, BLDC Motor, PMSM Motor Intelligent Power Module, 600 V 23-Pin, SIP
- RS Stock No.:
- 189-0271
- Mfr. Part No.:
- STK544UC63K-E
- Brand:
- onsemi
Subtotal (1 tube of 80 units)*
£862.72
(exc. VAT)
£1,035.28
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 20 February 2026
Units | Per unit | Per Tube* |
---|---|---|
80 + | £10.784 | £862.72 |
*price indicative
- RS Stock No.:
- 189-0271
- Mfr. Part No.:
- STK544UC63K-E
- Brand:
- onsemi
Select all | Attribute | Value |
---|---|---|
Brand | onsemi | |
Motor Type | AC Induction, BLDC Motor, PMSM Motor | |
Output Configuration | 3 Phase | |
Maximum Output Current | 10 A, 20 A | |
Maximum Supply Voltage | 450 V | |
Maximum Collector Emitter Voltage | 600 V | |
Mounting Type | Surface Mount | |
Package Type | SIP | |
Pin Count | 23 | |
Maximum Operating Supply Voltage | 450 V | |
Minimum Operating Supply Voltage | 0 V | |
Typical Switching Frequency | 20 (Maximum PWM)kHz | |
Maximum Isolation Rating | 2000Vrms | |
Length | 62.5mm | |
Product Length | 62.5mm | |
Height | 5.5mm | |
Width | 22.3mm | |
Product Height | 5.5mm | |
Minimum Operating Temperature | -40 °C | |
Dimensions | 62.5 x 22.3 x 5.5mm | |
Product Width | 22.3mm | |
Maximum Operating Temperature | +100 °C | |
Select all | ||
---|---|---|
Brand onsemi | ||
Motor Type AC Induction, BLDC Motor, PMSM Motor | ||
Output Configuration 3 Phase | ||
Maximum Output Current 10 A, 20 A | ||
Maximum Supply Voltage 450 V | ||
Maximum Collector Emitter Voltage 600 V | ||
Mounting Type Surface Mount | ||
Package Type SIP | ||
Pin Count 23 | ||
Maximum Operating Supply Voltage 450 V | ||
Minimum Operating Supply Voltage 0 V | ||
Typical Switching Frequency 20 (Maximum PWM)kHz | ||
Maximum Isolation Rating 2000Vrms | ||
Length 62.5mm | ||
Product Length 62.5mm | ||
Height 5.5mm | ||
Width 22.3mm | ||
Product Height 5.5mm | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 62.5 x 22.3 x 5.5mm | ||
Product Width 22.3mm | ||
Maximum Operating Temperature +100 °C | ||
Under-voltage LockOut for all channels
Upper/lower ON prevention circuit
Thermistor for case temperature monitor
Direct input of CMOS level control signals without an insulating is possible
Having separate emitters and VITRIP terminal for protection
All IGBT Gate shutdown at abnormal for safety
System malfunction can reduce by noise
High precision monitor is possible
No need photo-coupler design
Applications
Motor Driver modules
End Products
Motor controll system
Industrial /General Control System
HVAC
Clothes Washer /Dryer
Dish Washer
Refrigerator
