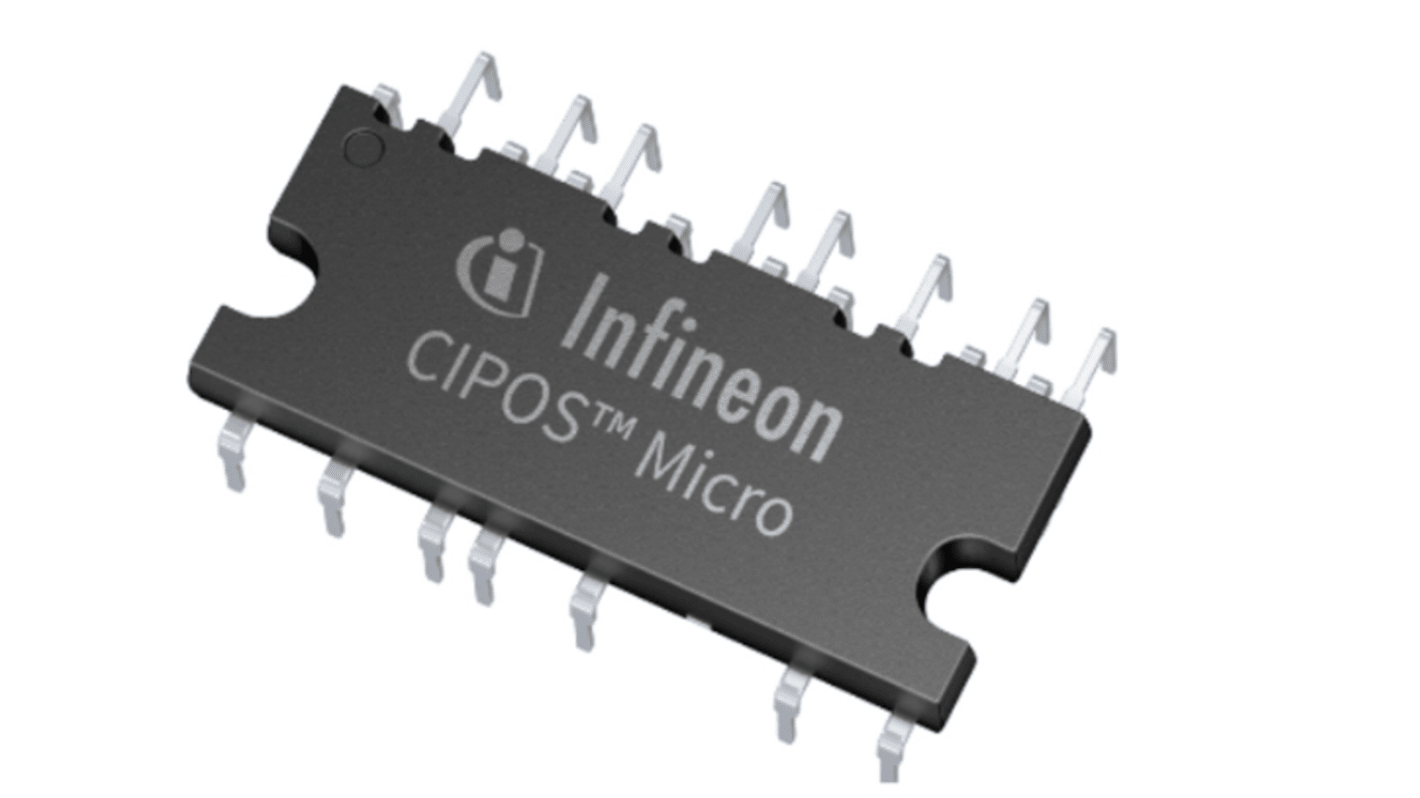

Infineon IM231M6T2BAKMA1, Stepper Motor Driver IC, 600 V 23-Pin, DIP
- RS Stock No.:
- 226-6125
- Mfr. Part No.:
- IM231M6T2BAKMA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (15 units, in tubes of 15)*
£128.06
(exc. VAT)
£153.66
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 February 2028
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 15 - 15 | £8.537 | £128.06 |
| 30 - 60 | £8.11 | £121.65 |
| 75 + | £7.769 | £116.54 |
*price indicative
- RS Stock No.:
- 226-6125
- Mfr. Part No.:
- IM231M6T2BAKMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Motor Driver IC | |
| Motor Type | Stepper | |
| Configuration | 3 Phase | |
| Maximum Collector Emitter Voltage Vceo | 600V | |
| Mount Type | Through Hole | |
| Package Type | DIP | |
| Pin Count | 23 | |
| Output Current | 4A | |
| Maximum Supply Voltage | 17.5V | |
| Minimum Supply Voltage | 12.5V | |
| Typical Switching Frequency | 20kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Height | 2.9mm | |
| Standards/Approvals | No | |
| Width | 12mm | |
| Series | IM231M6T2 | |
| Length | 29mm | |
| Inverter Power Rating | 320W | |
| Automotive Standard | AEC-Q101 | |
| Supply Current | 2.6mA | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Motor Driver IC | ||
Motor Type Stepper | ||
Configuration 3 Phase | ||
Maximum Collector Emitter Voltage Vceo 600V | ||
Mount Type Through Hole | ||
Package Type DIP | ||
Pin Count 23 | ||
Output Current 4A | ||
Maximum Supply Voltage 17.5V | ||
Minimum Supply Voltage 12.5V | ||
Typical Switching Frequency 20kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Height 2.9mm | ||
Standards/Approvals No | ||
Width 12mm | ||
Series IM231M6T2 | ||
Length 29mm | ||
Inverter Power Rating 320W | ||
Automotive Standard AEC-Q101 | ||
Supply Current 2.6mA | ||
The Infineon IM231-M6-series 3-phase intelligent power modules (IPM) are designed for high-efficiency appliance motor drives such as air-conditioner fans and refrigerator compressors. These advanced IPMs, available in both surface mount and through-hole configuration, offer a combination of low VCE(sat) TRENCHSTOPTM IGBT6 technology and the industry benchmark rugged half-bridge driver.
Temperature monitor
Accurate overcurrent shutdown (±5%)
Fault reporting and programmable fault clear
Advanced input filter with shoot-through protection
