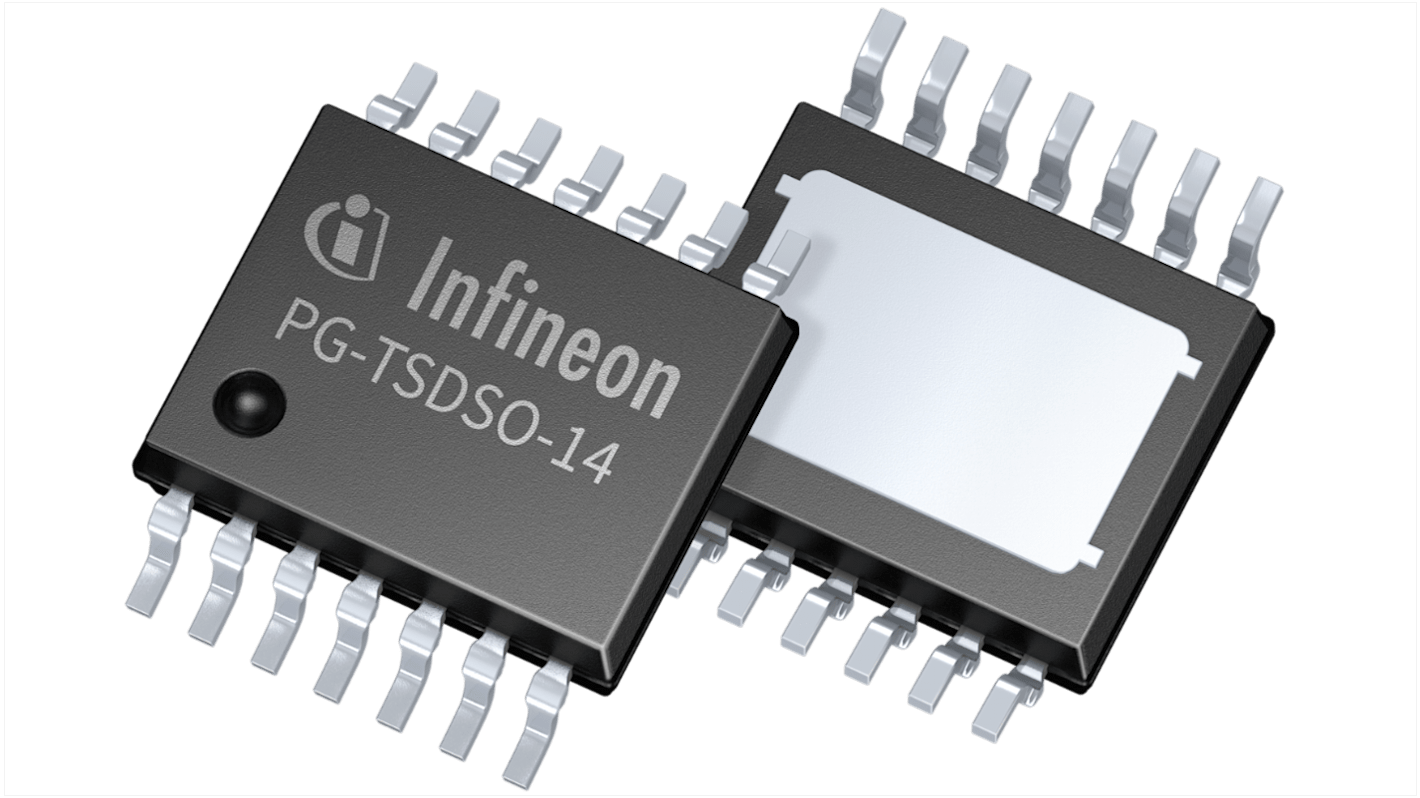

Infineon TLE94004EPXUMA1, BLDC Motor Driver IC 14-Pin, TSDSO
- RS Stock No.:
- 223-8608
- Mfr. Part No.:
- TLE94004EPXUMA1
- Brand:
- Infineon
Subtotal (1 pack of 5 units)*
£9.24
(exc. VAT)
£11.09
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 + | £1.848 | £9.24 |
*price indicative
- RS Stock No.:
- 223-8608
- Mfr. Part No.:
- TLE94004EPXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Motor Type | BLDC | |
Output Configuration | Half Bridge | |
Configuration | Quad | |
Maximum Output Current | 2A | |
Maximum Supply Voltage | 5.5 V | |
Package Type | TSDSO | |
Pin Count | 14 | |
Select all | ||
---|---|---|
Brand Infineon | ||
Motor Type BLDC | ||
Output Configuration Half Bridge | ||
Configuration Quad | ||
Maximum Output Current 2A | ||
Maximum Supply Voltage 5.5 V | ||
Package Type TSDSO | ||
Pin Count 14 | ||
The Infineon TLE94004EP series is a protected four fold half-bridge driver designed especially for automotive motion control applications such as heating, ventilation and air conditioning flap and DC motor control. The half bridge drivers are designed to drive DC motor loads in sequential or parallel operation.
Very low power consumption in sleep mode
3.3V / 5V compatible inputs with hysteresis
All outputs with overload and short circuit protection
Direct interface for control and diagnosis
Over temperature protection
Over and Under voltage lockout
Cross current protection
3.3V / 5V compatible inputs with hysteresis
All outputs with overload and short circuit protection
Direct interface for control and diagnosis
Over temperature protection
Over and Under voltage lockout
Cross current protection
