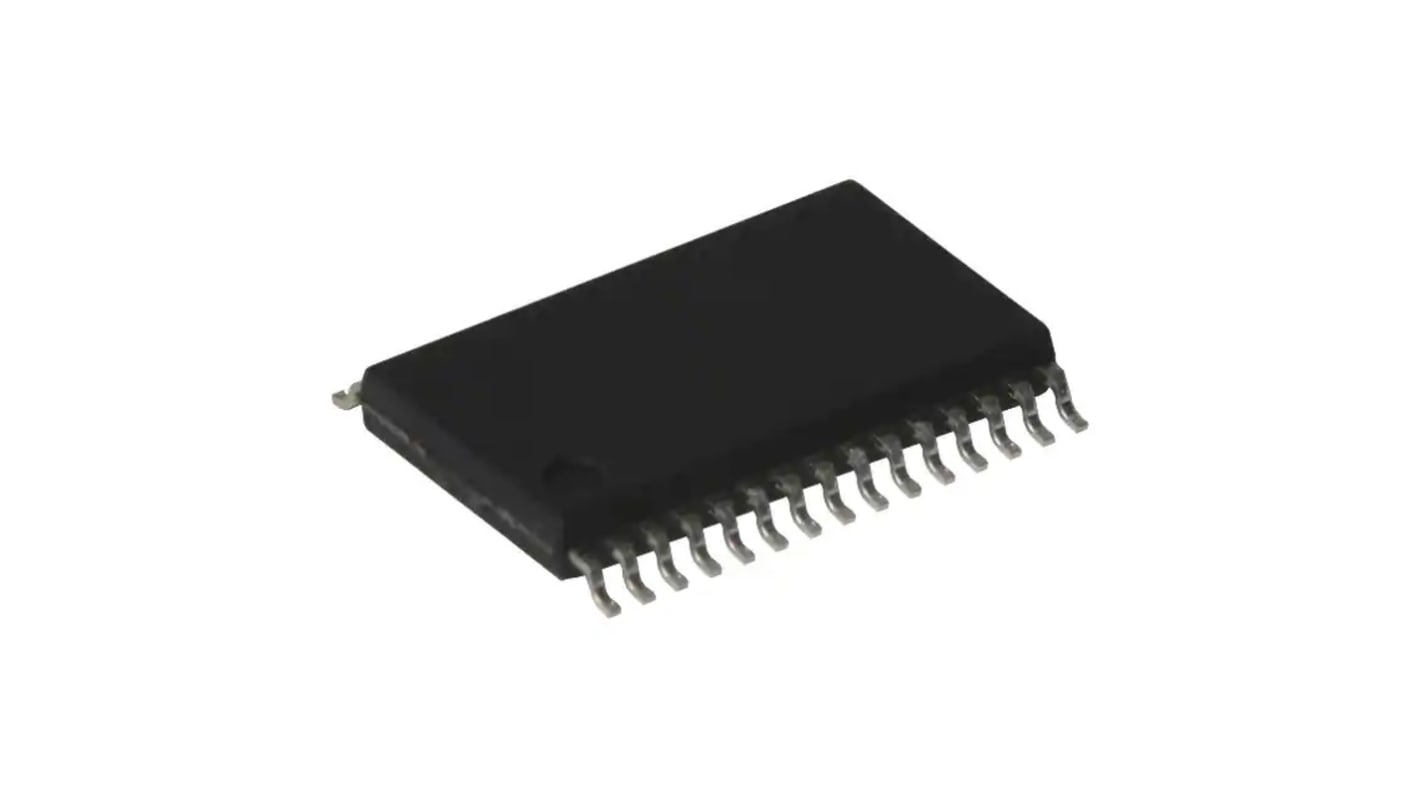

Toshiba, Brushless Motor Driver IC 30-Pin, SSOP
- RS Stock No.:
- 214-8095
- Mfr. Part No.:
- TC78B041FNG(Z,EL)
- Brand:
- Toshiba
Subtotal (1 reel of 2000 units)*
£3,688.00
(exc. VAT)
£4,426.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 30 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £1.844 | £3,688.00 |
*price indicative
- RS Stock No.:
- 214-8095
- Mfr. Part No.:
- TC78B041FNG(Z,EL)
- Brand:
- Toshiba
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Motor Type | Brushless | |
| Product Type | Motor Driver IC | |
| Configuration | 3 Phase | |
| Mount Type | Surface | |
| Package Type | SSOP | |
| Output Current | 2mA | |
| Pin Count | 30 | |
| Minimum Supply Voltage | 6V | |
| Maximum Supply Voltage | 16.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 115°C | |
| Series | TC78B041FNG | |
| Standards/Approvals | RoHS | |
| Height | 1.6mm | |
| Length | 10.2mm | |
| Supply Current | 8mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Motor Type Brushless | ||
Product Type Motor Driver IC | ||
Configuration 3 Phase | ||
Mount Type Surface | ||
Package Type SSOP | ||
Output Current 2mA | ||
Pin Count 30 | ||
Minimum Supply Voltage 6V | ||
Maximum Supply Voltage 16.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 115°C | ||
Series TC78B041FNG | ||
Standards/Approvals RoHS | ||
Height 1.6mm | ||
Length 10.2mm | ||
Supply Current 8mA | ||
Automotive Standard No | ||
The Toshiba sine-wave PWM Drive is developed for three-phase brushless DC fan motors. It adopts SSOP30 type package.
Automatic lead angle control (InPAC: Intelligent Phase Control)
Lead angle control with external input
Hall sensor input/Hall IC input
Forward rotation/Reverse rotation switch
Number of pulses of rotation pulse signal output is selectable
Output current can be limited
Built-in regulator circuit (VREF= 5 V (typ.), 35 mA (max))
Operating supply voltage range: VCC = 6 V to 16.5 V
Built-in motor lock detection
