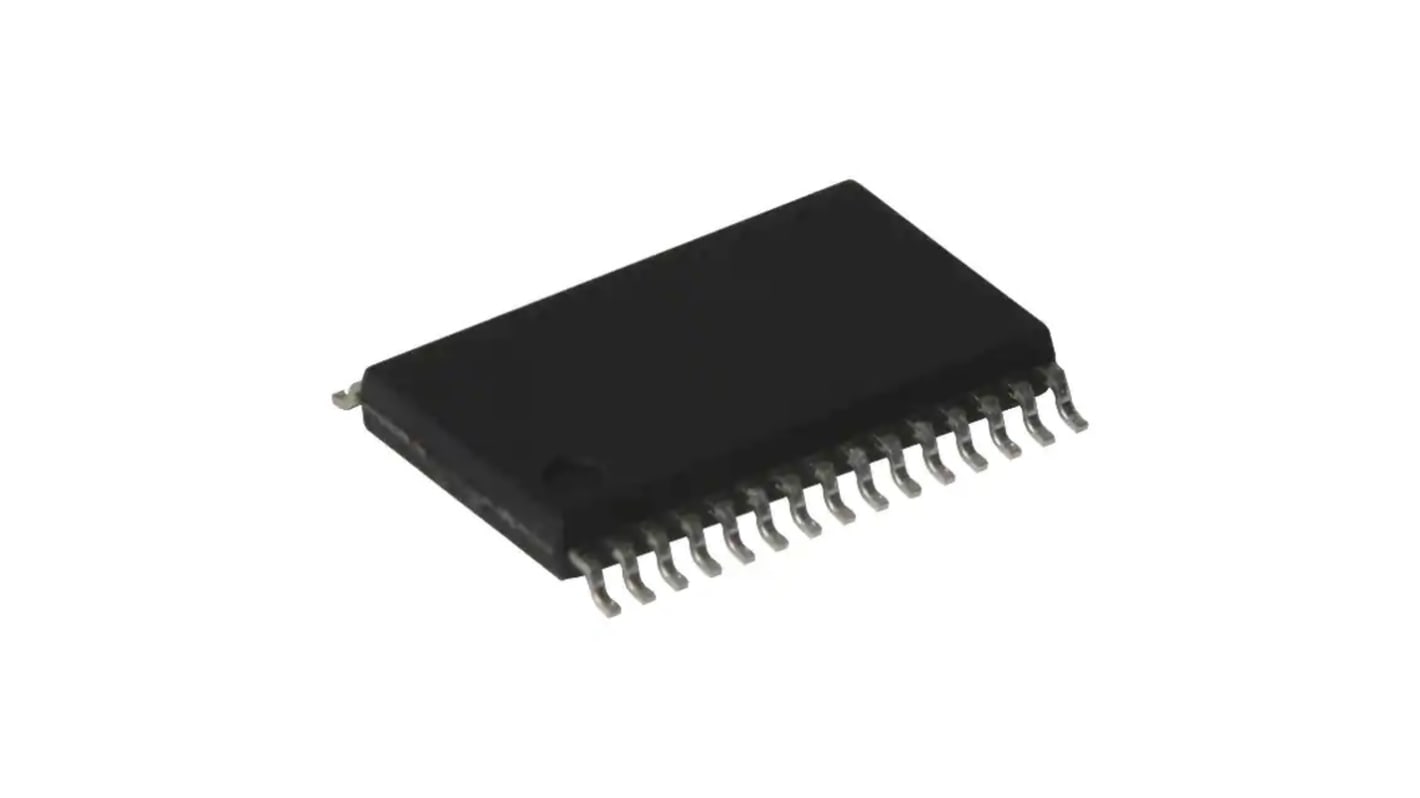

Toshiba TC78B041FNG(Z,EL), BLDC Motor Driver IC 30-Pin, SSOP
- RS Stock No.:
- 214-8096
- Mfr. Part No.:
- TC78B041FNG(Z,EL)
- Brand:
- Toshiba
1965 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£2.382
(exc. VAT)
£2.858
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £2.382 | £11.91 |
*price indicative
- RS Stock No.:
- 214-8096
- Mfr. Part No.:
- TC78B041FNG(Z,EL)
- Brand:
- Toshiba
Technical Reference
Legislation and Compliance
Product Details
The Toshiba sine-wave PWM Drive is developed for three-phase brushless DC fan motors. It adopts SSOP30 type package.
Automatic lead angle control (InPAC: Intelligent Phase Control)
Lead angle control with external input
Hall sensor input/Hall IC input
Forward rotation/Reverse rotation switch
Number of pulses of rotation pulse signal output is selectable
Output current can be limited
Built-in regulator circuit (VREF= 5 V (typ.), 35 mA (max))
Operating supply voltage range: VCC = 6 V to 16.5 V
Built-in motor lock detection
Lead angle control with external input
Hall sensor input/Hall IC input
Forward rotation/Reverse rotation switch
Number of pulses of rotation pulse signal output is selectable
Output current can be limited
Built-in regulator circuit (VREF= 5 V (typ.), 35 mA (max))
Operating supply voltage range: VCC = 6 V to 16.5 V
Built-in motor lock detection
Specifications
Attribute | Value |
|---|---|
| Motor Type | BLDC |
| Output Configuration | PWM |
| Configuration | 3 Phase |
| Maximum Output Current | 2mA |
| Maximum Supply Voltage | 16.5 V |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Pin Count | 30 |
