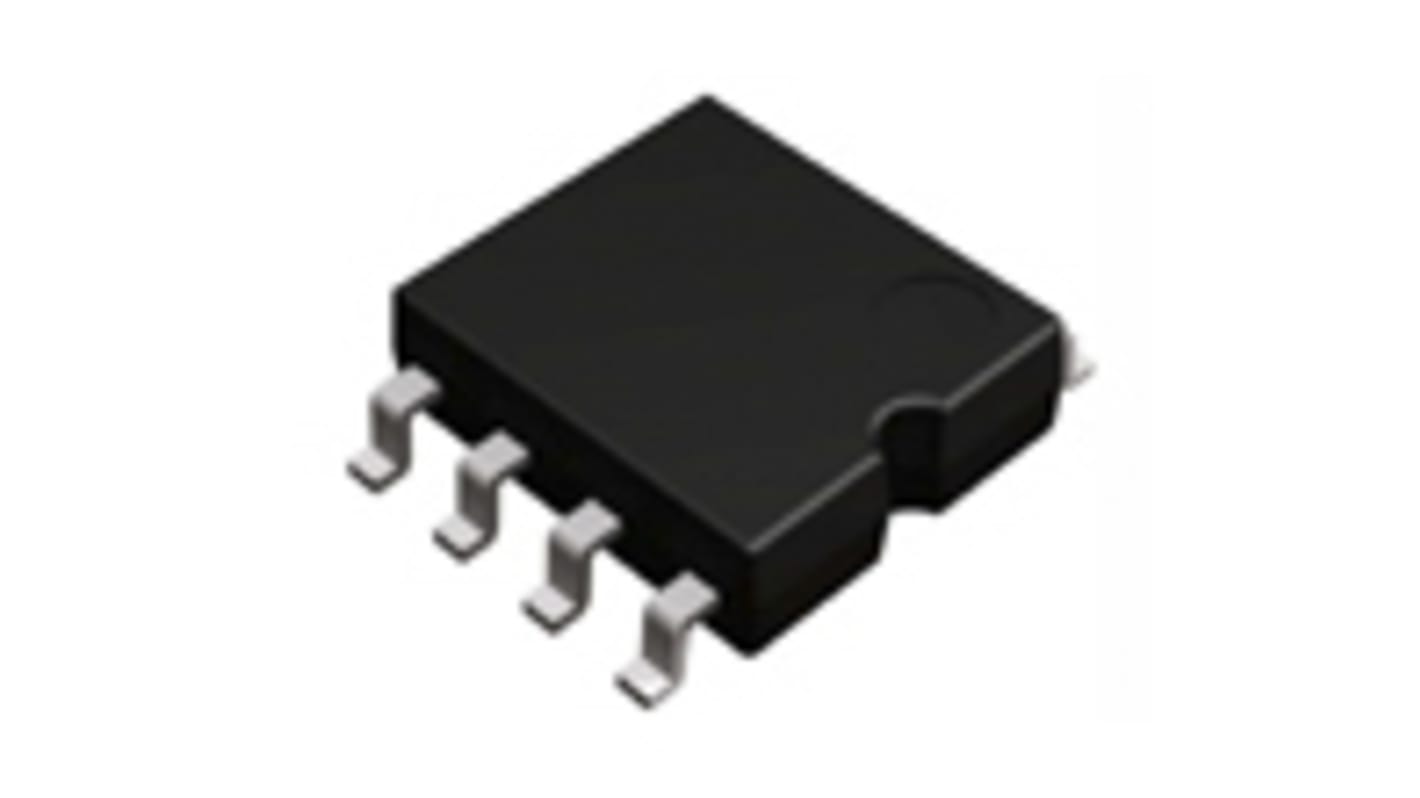

ROHM BA6287F-E2, Brushed Motor Driver IC 8-Pin, SOP
- RS Stock No.:
- 167-7333
- Mfr. Part No.:
- BA6287F-E2
- Brand:
- ROHM
Save 6% when you buy 200 units
Subtotal (1 pack of 10 units)*
£8.29
(exc. VAT)
£9.95
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 30 left, ready to ship
- Plus 10 left, ready to ship from another location
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.829 | £8.29 |
| 50 - 190 | £0.797 | £7.97 |
| 200 + | £0.773 | £7.73 |
*price indicative
- RS Stock No.:
- 167-7333
- Mfr. Part No.:
- BA6287F-E2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Motor Type | Brushed DC | |
| Configuration | H Bridge | |
| Output Configuration | Full Bridge | |
| Maximum Output Current | 1A | |
| Maximum Supply Voltage | 15 V | |
| Mounting Type | Surface Mount | |
| Package Type | SOP | |
| Maximum Operating Supply Voltage | 15 V | |
| Pin Count | 8 | |
| Minimum Operating Supply Voltage | 4.5 V | |
| Series | BA6287F | |
| Product Length | 5mm | |
| Length | 5mm | |
| Product Height | 1.39mm | |
| Maximum Operating Temperature | +75 °C | |
| Minimum Operating Temperature | -25 °C | |
| Width | 4.4mm | |
| Height | 1.39mm | |
| Dimensions | 5 x 4.4 x 1.39mm | |
| Product Width | 4.4mm | |
Select all | ||
|---|---|---|
Brand ROHM | ||
Motor Type Brushed DC | ||
Configuration H Bridge | ||
Output Configuration Full Bridge | ||
Maximum Output Current 1A | ||
Maximum Supply Voltage 15 V | ||
Mounting Type Surface Mount | ||
Package Type SOP | ||
Maximum Operating Supply Voltage 15 V | ||
Pin Count 8 | ||
Minimum Operating Supply Voltage 4.5 V | ||
Series BA6287F | ||
Product Length 5mm | ||
Length 5mm | ||
Product Height 1.39mm | ||
Maximum Operating Temperature +75 °C | ||
Minimum Operating Temperature -25 °C | ||
Width 4.4mm | ||
Height 1.39mm | ||
Dimensions 5 x 4.4 x 1.39mm | ||
Product Width 4.4mm | ||
- COO (Country of Origin):
- JP
The reversible motor driver for output 1.0A for 1 motor can set the output modes to four modes, normal, reverse, stop(idling), and braking in accordance with logic input (2 inputs).
Built-in surge absorption diode
By built-in power save circuit, current consumption when a motor stops (idles) can be suppressed
Output voltage can be optionally set by reference voltage setting pin
Built-in thermal shutdown circuit (TSD)
Applications:
Coin Processing Machines
By built-in power save circuit, current consumption when a motor stops (idles) can be suppressed
Output voltage can be optionally set by reference voltage setting pin
Built-in thermal shutdown circuit (TSD)
Applications:
Coin Processing Machines
