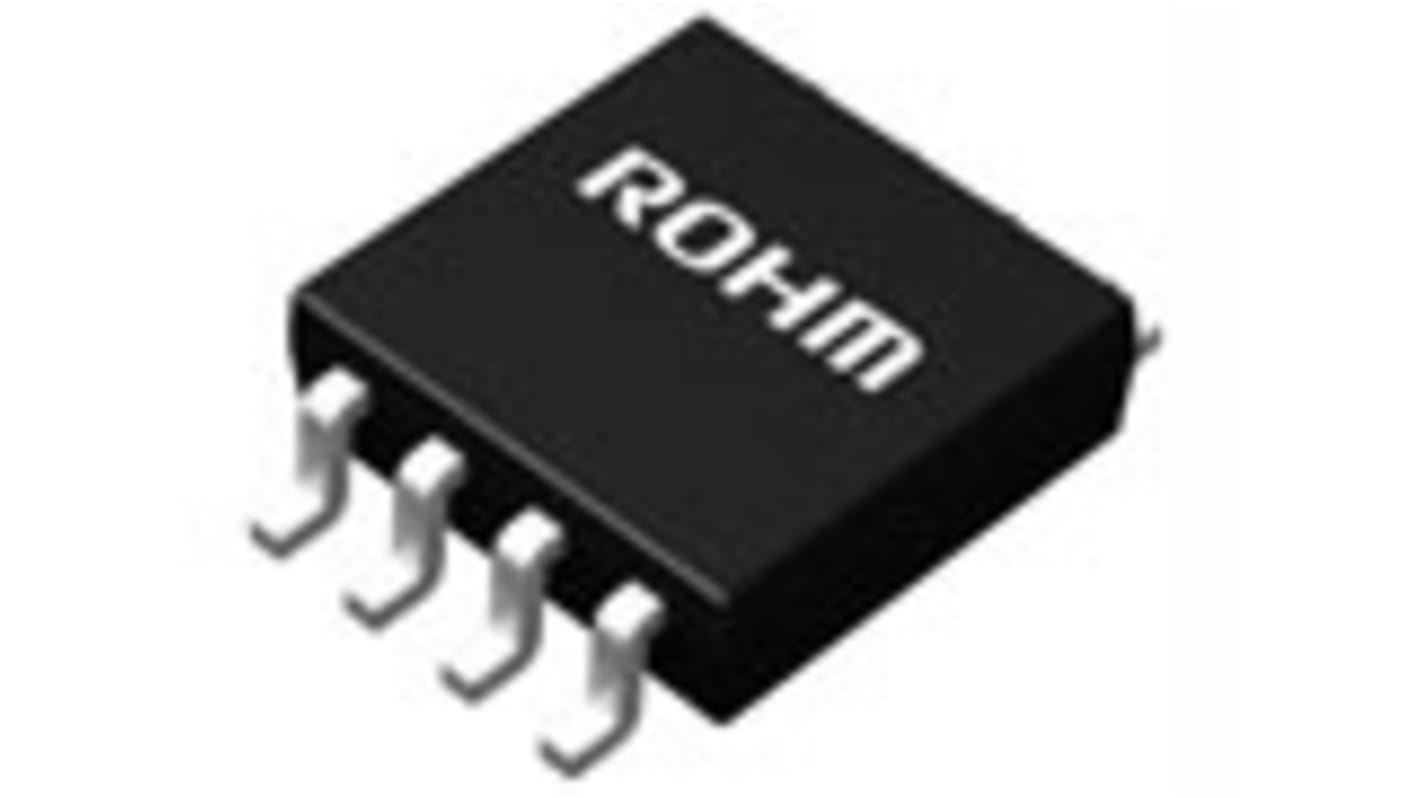

ROHM BD62105AFVM-TR, Brushed DC Motor Motor Driver IC 8-Pin, MSOP
- RS Stock No.:
- 178-0019
- Mfr. Part No.:
- BD62105AFVM-TR
- Brand:
- ROHM
Subtotal (1 reel of 3000 units)*
£2,049.00
(exc. VAT)
£2,460.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.683 | £2,049.00 |
*price indicative
- RS Stock No.:
- 178-0019
- Mfr. Part No.:
- BD62105AFVM-TR
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Motor Type | Brushed DC Motor | |
| Product Type | Motor Driver IC | |
| Configuration | H Bridge | |
| Mount Type | Surface | |
| Package Type | MSOP | |
| Output Current | 1A | |
| Pin Count | 8 | |
| Maximum Supply Voltage | 28V | |
| Minimum Supply Voltage | 8V | |
| Minimum Operating Temperature | -25°C | |
| Typical Switching Frequency | 100kHz | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Height | 0.75mm | |
| Series | BD62105AFVM | |
| Length | 2.9mm | |
| Inverter Power Rating | 0.59W | |
| Supply Current | 2.5mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Motor Type Brushed DC Motor | ||
Product Type Motor Driver IC | ||
Configuration H Bridge | ||
Mount Type Surface | ||
Package Type MSOP | ||
Output Current 1A | ||
Pin Count 8 | ||
Maximum Supply Voltage 28V | ||
Minimum Supply Voltage 8V | ||
Minimum Operating Temperature -25°C | ||
Typical Switching Frequency 100kHz | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Height 0.75mm | ||
Series BD62105AFVM | ||
Length 2.9mm | ||
Inverter Power Rating 0.59W | ||
Supply Current 2.5mA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- JP
BD62105AFVM is a built-in 1 channel H-bridge motor driver for DC brush motors. This driver can facilitate low power consumption by direct PWM. There are built in protection circuits in this IC. Each protection circuit operation, which contributes to set high reliability.
Single Power Supply Input (rated voltage of 36V)
Rated Output Current (peak):0.5A(1.0A)
Low ON-Resistance DMOS Output
Forward, Reverse, Brake, Open
Power Save Function
External PWM Control
Driver for DC Brush Motor
Built-in logic input pull-down resistor
Cross-conduction Prevention Circuit
Thermal Shutdown Circuit (TSD)
Over-current Protection Circuit (OCP)
Under Voltage Lock out Circuit (UVLO)
Over Voltage Lock out Circuit (OVLO)
Ghost Supply Prevention (protects against malfunction when power supply is disconnected)
Adjacent Pins Short Protection
Inverted Mounting Protection
MSOP8 package
