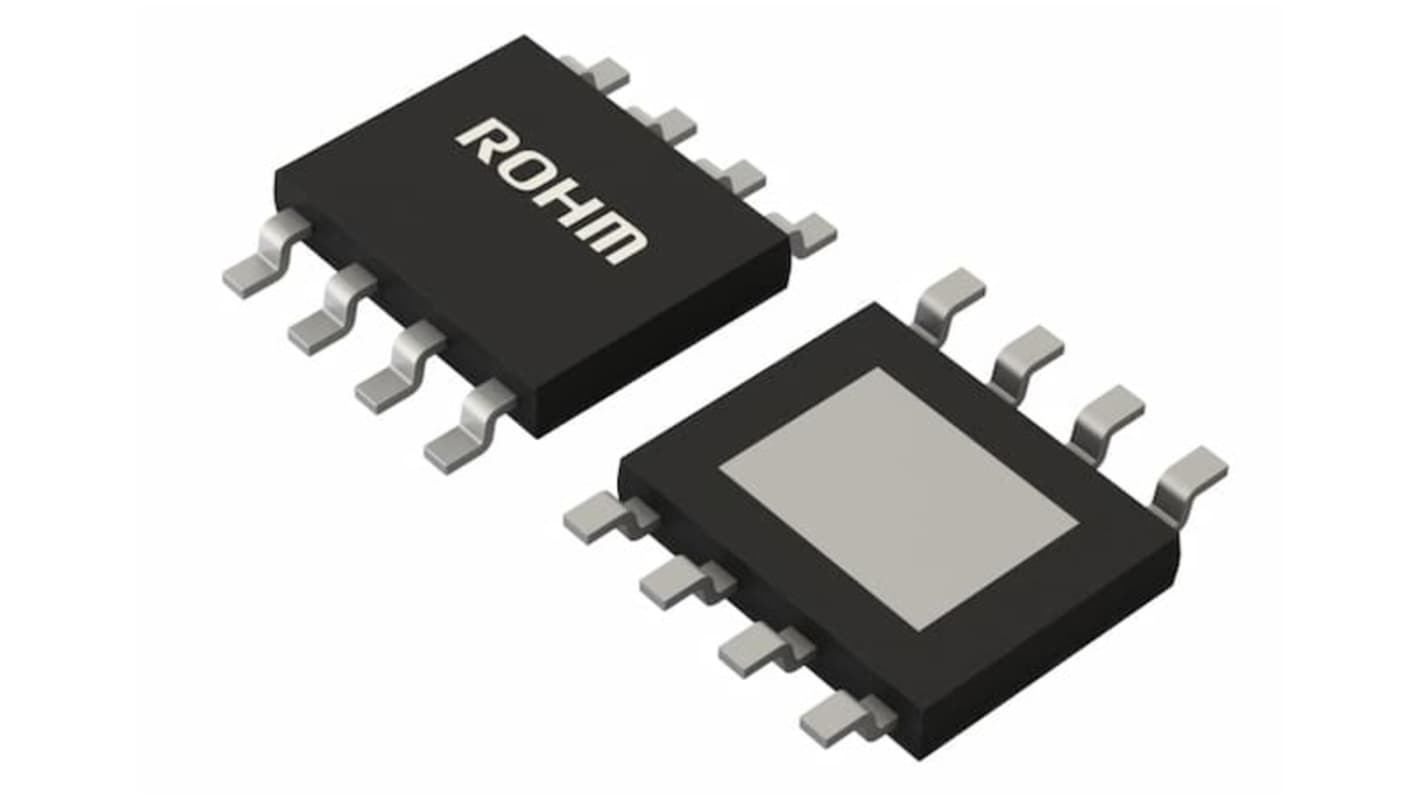

ROHM BD64950EFJ-E2, Brushed Motor Driver IC 8-Pin, HTSOP-J8
- RS Stock No.:
- 264-385P
- Mfr. Part No.:
- BD64950EFJ-E2
- Brand:
- ROHM
Bulk discount available
Subtotal 50 units (supplied on a continuous strip)*
£51.90
(exc. VAT)
£62.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 80 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
50 - 95 | £1.038 |
100 - 495 | £0.96 |
500 - 995 | £0.884 |
1000 + | £0.85 |
*price indicative
- RS Stock No.:
- 264-385P
- Mfr. Part No.:
- BD64950EFJ-E2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ROHM | |
Motor Type | Brushed DC | |
Configuration | 1 Phase | |
Output Configuration | H Bridge | |
Maximum Output Current | 3.5A | |
Maximum Supply Voltage | 40 V | |
Package Type | HTSOP-J8 | |
Pin Count | 8 | |
Select all | ||
---|---|---|
Brand ROHM | ||
Motor Type Brushed DC | ||
Configuration 1 Phase | ||
Output Configuration H Bridge | ||
Maximum Output Current 3.5A | ||
Maximum Supply Voltage 40 V | ||
Package Type HTSOP-J8 | ||
Pin Count 8 | ||
The ROHM H-bridge motor driver designed for efficient control of DC brush motors. This innovative device offers a compact solution for various applications, significantly enhancing performance while ensuring low power consumption through direct PWM control or constant current modes. With built-in protection circuits, including thermal shutdown and overcurrent protection, this driver ensures a reliable operation even in demanding conditions.
Robust thermal shutdown circuit protects against overheating
Current limit function prevents excessive output current prolonging device life
Supports PWM constant current control for precise motor operation
Cross conduction prevention circuit ensures safe operation
Versatile applications include use in robotic cleaners and multi function printers
Current limit function prevents excessive output current prolonging device life
Supports PWM constant current control for precise motor operation
Cross conduction prevention circuit ensures safe operation
Versatile applications include use in robotic cleaners and multi function printers
