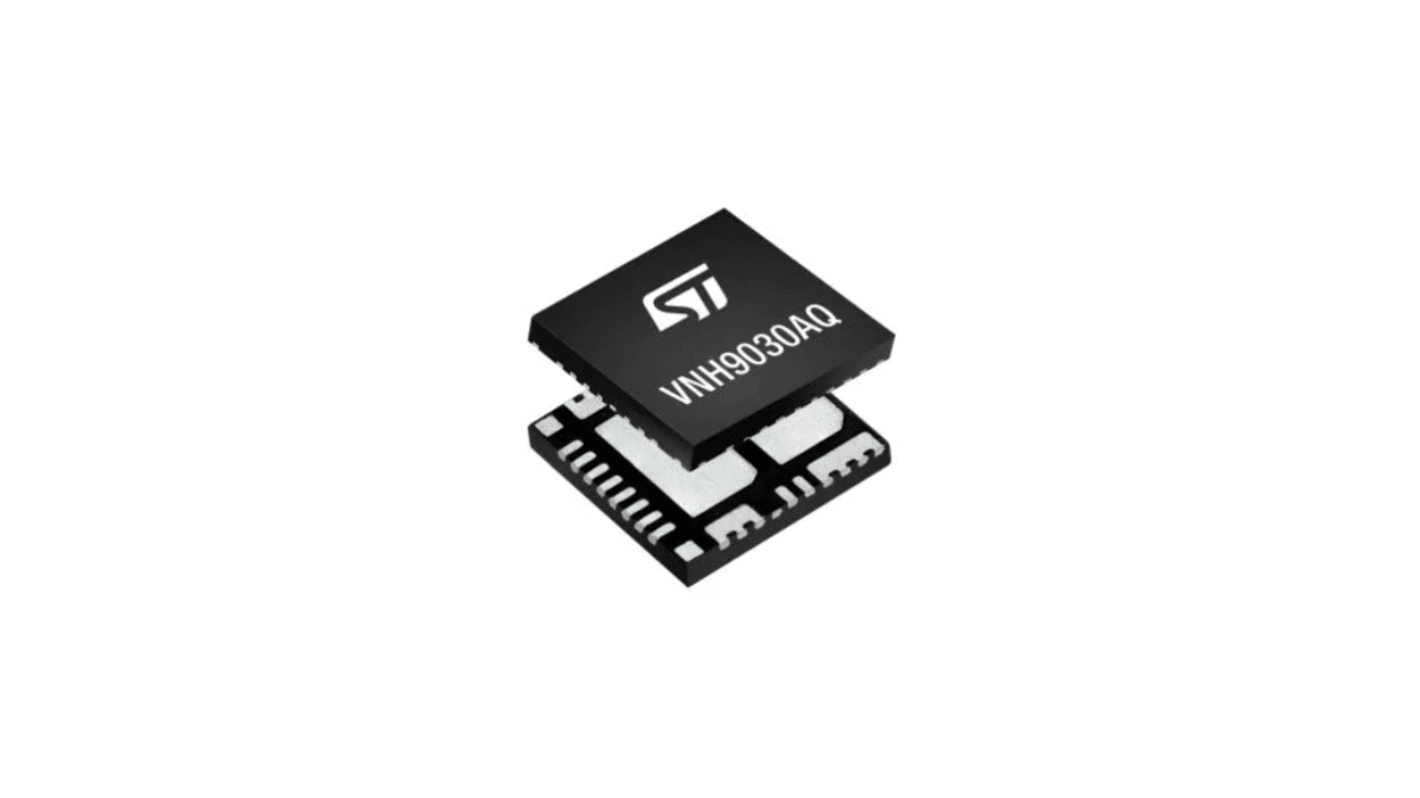

STMicroelectronics VNH9030AQTR, Brushed DC Motor Motor Driver IC 28-Pin, QFN 6 x 6
- RS Stock No.:
- 365-230
- Mfr. Part No.:
- VNH9030AQTR
- Brand:
- STMicroelectronics
Subtotal (1 reel of 3000 units)*
£11,091.00
(exc. VAT)
£13,308.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £3.697 | £11,091.00 |
*price indicative
- RS Stock No.:
- 365-230
- Mfr. Part No.:
- VNH9030AQTR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Motor Type | Brushed DC Motor | |
| Product Type | Motor Driver IC | |
| Configuration | Half Bridge | |
| Mount Type | Surface | |
| Package Type | QFN 6 x 6 | |
| Output Current | 35A | |
| Pin Count | 28 | |
| Minimum Supply Voltage | 4V | |
| Maximum Supply Voltage | 36V | |
| Typical Switching Frequency | 25kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Series | VNH9030AQ | |
| Automotive Standard | AEC-Q100 | |
| Supply Current | 3mA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Motor Type Brushed DC Motor | ||
Product Type Motor Driver IC | ||
Configuration Half Bridge | ||
Mount Type Surface | ||
Package Type QFN 6 x 6 | ||
Output Current 35A | ||
Pin Count 28 | ||
Minimum Supply Voltage 4V | ||
Maximum Supply Voltage 36V | ||
Typical Switching Frequency 25kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Series VNH9030AQ | ||
Automotive Standard AEC-Q100 | ||
Supply Current 3mA | ||
The STMicroelectronics Automotive fully integrated H-bridge is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual monolithic high-side driver and two low-side switches. All switches are designed using STMicroelectronics well known and proven proprietary VI Power technology that allows to efficiently integrate on the same die a true Power MOSFET with an intelligent signal or protection circuitry. The three dices are assembled in a QFN 6x6 triple pad 26+2L package equipped with three exposed islands for optimized dissipation performances. This package is specifically designed for the harsh automotive environment and offers improved thermal performance thanks to exposed die pads. The input signals INA and INB can directly Interface the microcontroller to select the motor direction and the brake to Vcc condition.
AEC-Q100 qualified
3 V CMOS compatible inputs
Under voltage shutdown
Overvoltage clamp
Thermal shutdown
Cross-conduction protection
Current and power limitation
Very low standby power consumption
Protection against loss of ground and loss of VCC
PWM operation up to 25 kHz
