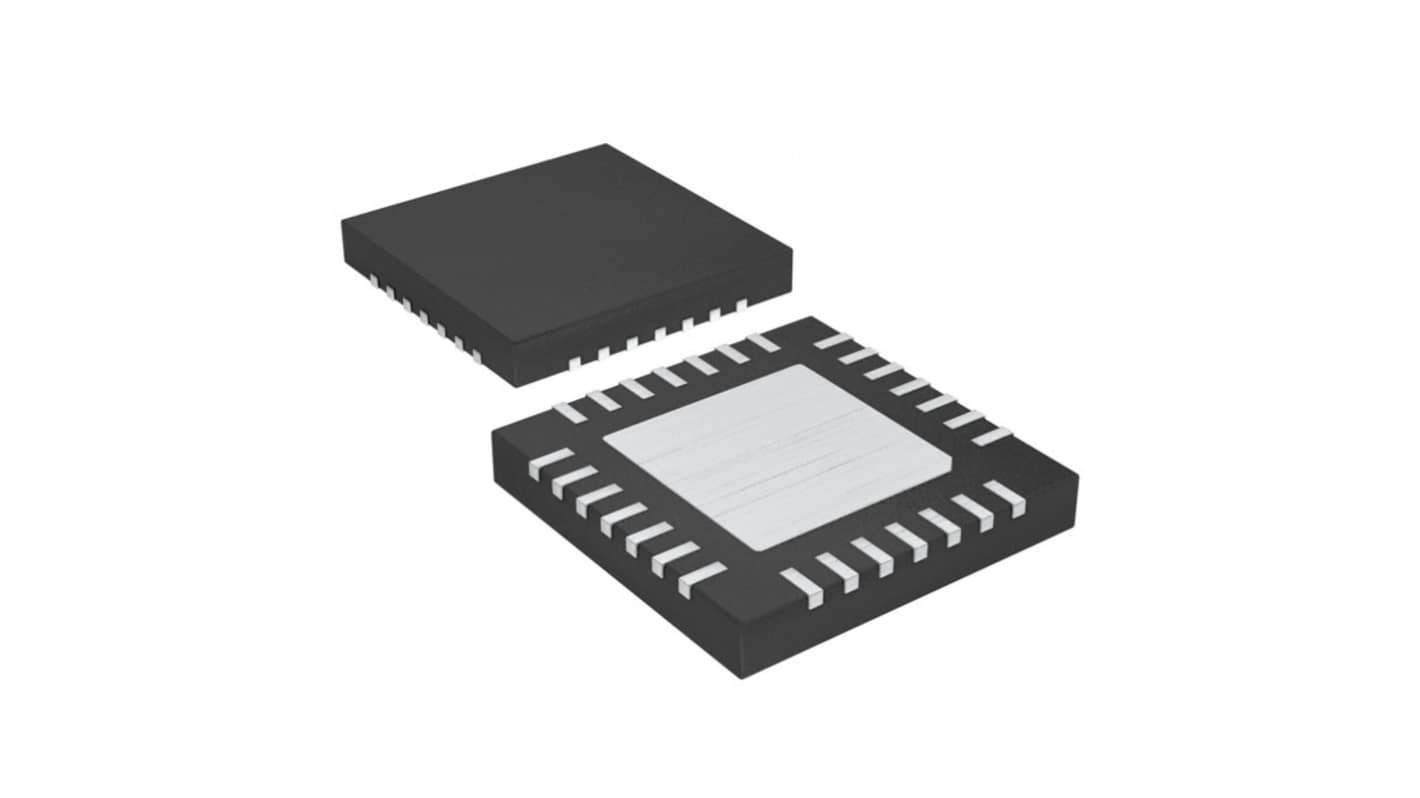

MPS MP6528GR-P, Brushed DC Motor Gate Driver Module 28-Pin, QFN-28
- RS Stock No.:
- 337-285
- Mfr. Part No.:
- MP6528GR-P
- Brand:
- MPS
Subtotal (1 reel of 500 units)*
£817.50
(exc. VAT)
£981.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 + | £1.635 | £817.50 |
*price indicative
- RS Stock No.:
- 337-285
- Mfr. Part No.:
- MP6528GR-P
- Brand:
- MPS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MPS | |
| Product Type | Gate Driver Module | |
| Motor Type | Brushed DC Motor | |
| Configuration | H Bridge | |
| Package Type | QFN-28 | |
| Pin Count | 28 | |
| Maximum Supply Voltage | 60V | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand MPS | ||
Product Type Gate Driver Module | ||
Motor Type Brushed DC Motor | ||
Configuration H Bridge | ||
Package Type QFN-28 | ||
Pin Count 28 | ||
Maximum Supply Voltage 60V | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The MPS International Ltd Gate driver IC designed for H bridge driver applications; it is capable of driving two half bridges consisting of four N channel power MOSFETs up to 60V. Its uses a bootstrap capacitor to generate a supply voltage for the high side MOSFET driver. An internal trickle charge circuit maintains a sufficient gate driver voltage at 100% duty cycle.
Adjustable dead time control to prevent shoot through
Thermal shutdown and UVLO protection
Fault indication output
Thermally enhanced surface mount package
