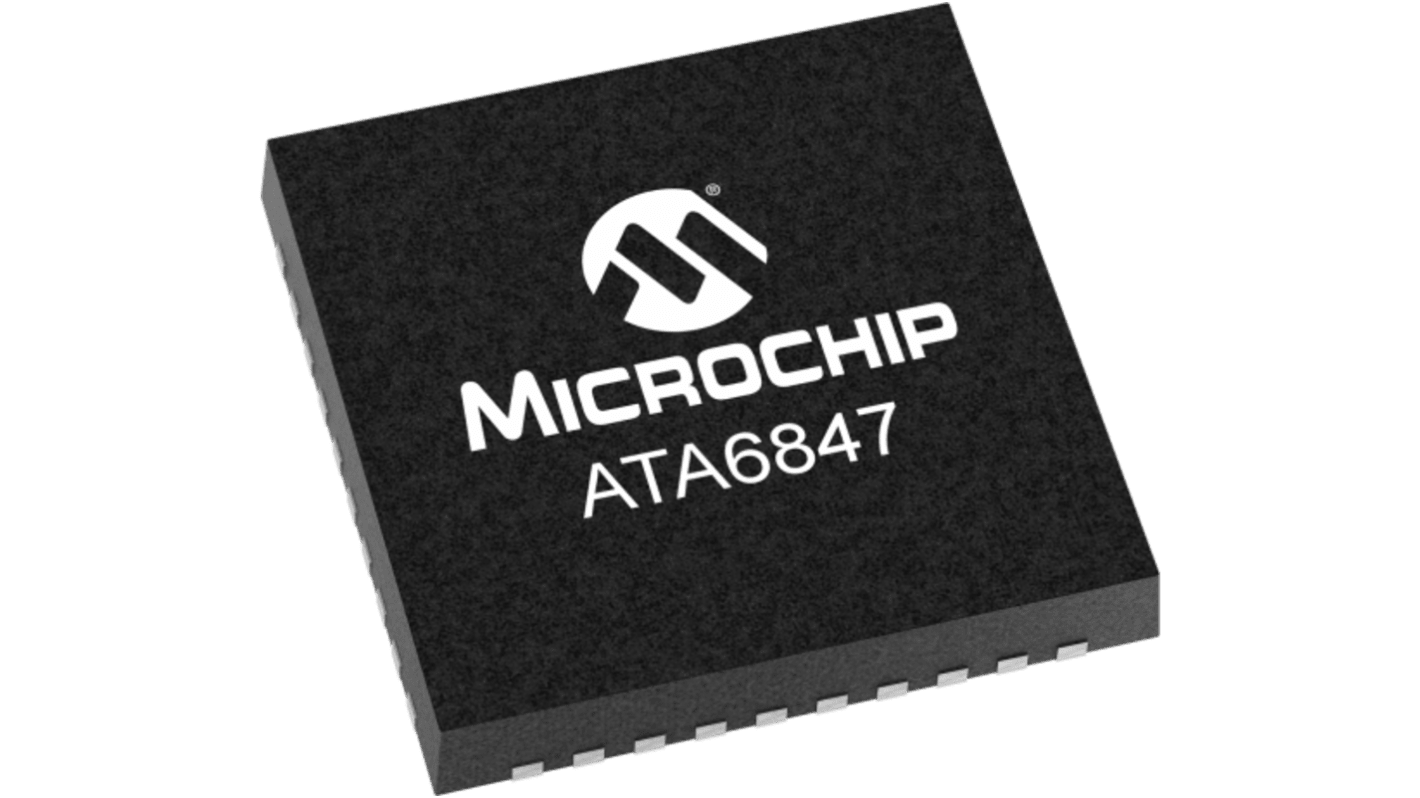

Microchip ATA6847T-5050E/NHX, Three Phase Brushless Motor DC Motor Driver 40-Pin, VQFN

View all Motor Driver ICs
Bulk discount available

Subtotal (1 tape of 2 units)*

£3.59

(exc. VAT)

£4.308

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3,300 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tape*
2 - 18£1.795£3.59
20 - 198£1.62£3.24
200 - 998£1.49£2.98
1000 - 1998£1.38£2.76
2000 +£1.125£2.25

*price indicative

Packaging Options:
RS Stock No.:
352-276
Mfr. Part No.:
ATA6847T-5050E/NHX
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Motor Type

Three Phase Brushless Motor

Configuration

3 Phase

Output Configuration

3 Phase

Maximum Output Current

2A

Maximum Supply Voltage

42 V

Package Type

VQFN

Pin Count

40

COO (Country of Origin):
TH
The Microchip 3 Phase Brushless Motor Gate Driver System Basis Chip (SBC) for brushless motor control, designed using advanced SOI technology. In combination with a microcontroller and six discrete power MOSFETs, the SBC forms a brushless DC motor control unit for motor control applications. Through six dedicated parallel inputs, the gate driver units (GDU) can be controlled independently, supporting duty cycle operations from 0% to 100%, due to the implementation of two charge pumps, for low and high-side gate drives.

Shoot-through protection
Overcurrent and short-circuit protection
Dedicated Fault Pin NIRQ
Gate Drive Under voltage Lockout 4.5V
Supply Voltage Under voltage Shutdown 3.0V
Supply Voltage Under voltage Lockout (UVLO) 4.55V
Overvoltage Lockout (OVLO) 32.5V
