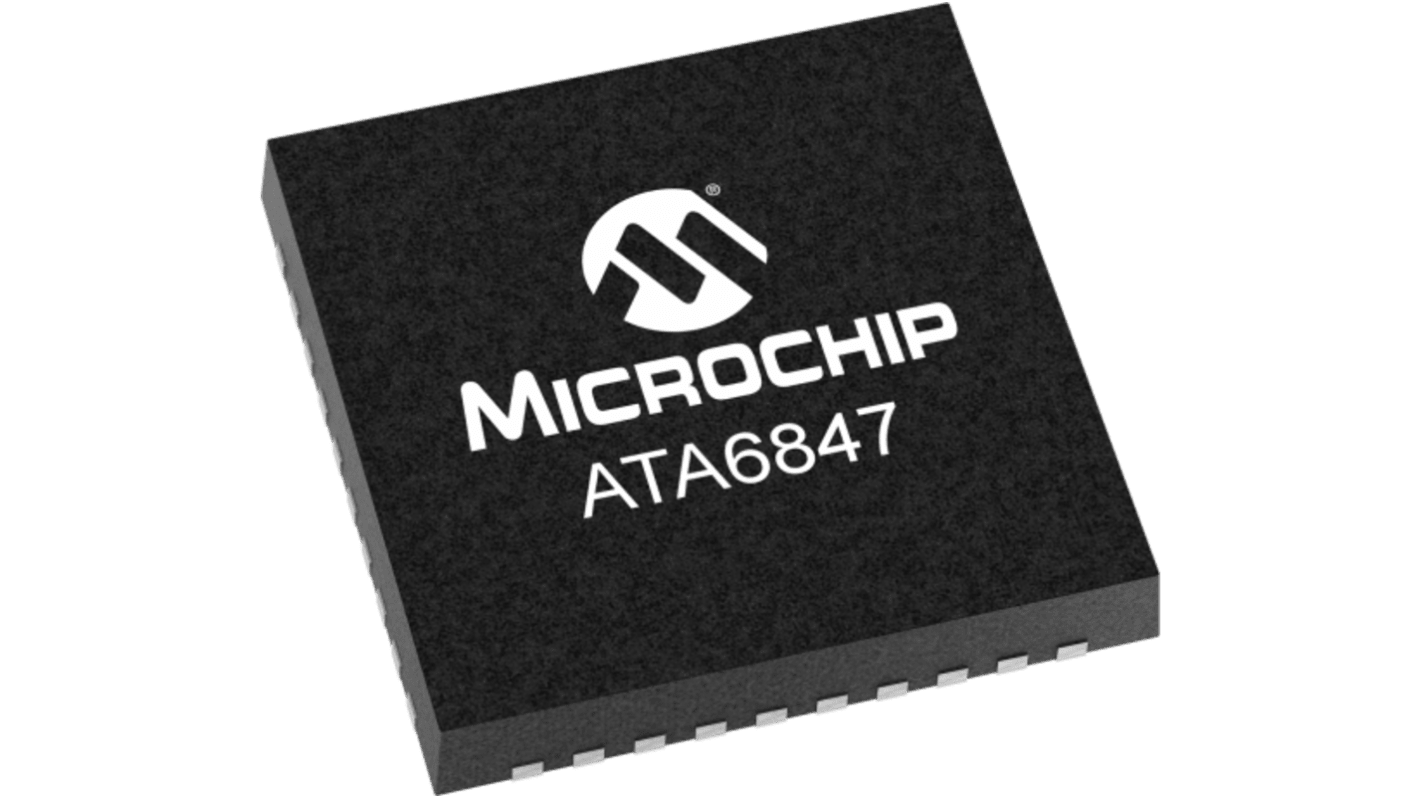

Microchip ATA6847T-5033E/NHX, Brushless DC Motor Driver 40-Pin, VQFN
- RS Stock No.:
- 352-274
- Mfr. Part No.:
- ATA6847T-5033E/NHX
- Brand:
- Microchip
Bulk discount available
Subtotal (1 tape of 2 units)*
£2.78
(exc. VAT)
£3.34
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 3,300 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 2 - 18 | £1.39 | £2.78 |
| 20 - 198 | £1.255 | £2.51 |
| 200 - 998 | £1.155 | £2.31 |
| 1000 - 1998 | £1.07 | £2.14 |
| 2000 + | £0.87 | £1.74 |
*price indicative
- RS Stock No.:
- 352-274
- Mfr. Part No.:
- ATA6847T-5033E/NHX
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | DC Motor Driver | |
| Motor Type | Brushless | |
| Configuration | 3 Phase | |
| Mount Type | Surface | |
| Package Type | VQFN | |
| Output Current | 2A | |
| Pin Count | 40 | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 42V | |
| Typical Switching Frequency | 50kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | IEC 61508:2010, ISO 26262:2018, RoHS | |
| Height | 0.9mm | |
| Length | 5mm | |
| Supply Current | 15μA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type DC Motor Driver | ||
Motor Type Brushless | ||
Configuration 3 Phase | ||
Mount Type Surface | ||
Package Type VQFN | ||
Output Current 2A | ||
Pin Count 40 | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 42V | ||
Typical Switching Frequency 50kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals IEC 61508:2010, ISO 26262:2018, RoHS | ||
Height 0.9mm | ||
Length 5mm | ||
Supply Current 15μA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
The Microchip 3-Phase Brushless Motor Gate Driver System Basis Chip (SBC) for brushless motor control, designed using advanced SOI technology. In combination with a microcontroller and six discrete power MOSFETs, the SBC forms a brushless DC motor control unit for motor control applications. Through six dedicated parallel inputs, the gate driver units (GDU) can be controlled independently, supporting duty cycle operations from 0% to 100%, due to the implementation of two charge pumps, for low and high-side gate drives.
Shoot-through protection
Overcurrent and short-circuit protection
Dedicated Fault Pin NIRQ
Gate Drive Under voltage Lockout 4.5V
Supply Voltage Under voltage Shutdown 3.0V
Supply Voltage Under voltage Lockout 4.55V
