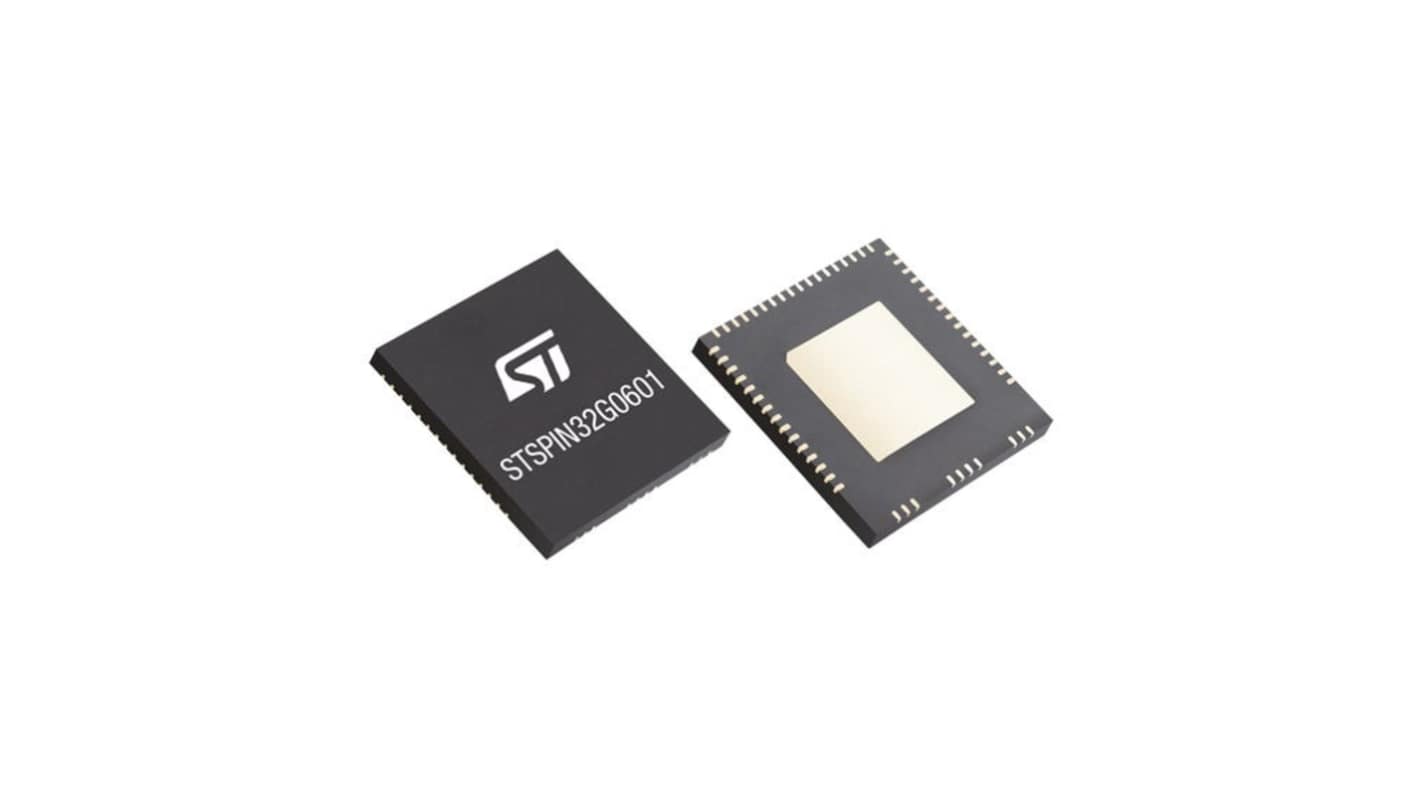

STMicroelectronics STSPIN32G0601Q, AC/DC Motor Controller 72-Pin, VFQFPN
- RS Stock No.:
- 215-056
- Mfr. Part No.:
- STSPIN32G0601Q
- Brand:
- STMicroelectronics
Subtotal (1 unit)*
£3.40
(exc. VAT)
£4.08
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 136 unit(s) shipping from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3.40 |
*price indicative
- RS Stock No.:
- 215-056
- Mfr. Part No.:
- STSPIN32G0601Q
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Motor Type | AC/DC | |
| Product Type | Motor Controller | |
| Configuration | 3 Phase | |
| Mount Type | Surface | |
| Package Type | VFQFPN | |
| Pin Count | 72 | |
| Output Current | 80A | |
| Minimum Supply Voltage | 1.7V | |
| Maximum Supply Voltage | 21V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Series | STSPIN32G0601 | |
| Supply Current | 5.2mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Motor Type AC/DC | ||
Product Type Motor Controller | ||
Configuration 3 Phase | ||
Mount Type Surface | ||
Package Type VFQFPN | ||
Pin Count 72 | ||
Output Current 80A | ||
Minimum Supply Voltage 1.7V | ||
Maximum Supply Voltage 21V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Series STSPIN32G0601 | ||
Supply Current 5.2mA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
The STMicroelectronics System-in-package providing an integrated solution suitable for driving three-phase applications. It embeds an MCU (STM32G031x8x3) featuring an Arm 32-bit Cortex-M0+ CPU and a 600 V triple half-bridge gate driver, able to drive N-channel power MOSFETs or IGBTs. A comparator featuring an Advanced smartSD function is integrated in the device, ensuring fast and effective protection against overload and overcurrent.
Matched propagation delay for all channels
Integrated bootstrap diodes
Comparator for fast overcurrent protection
