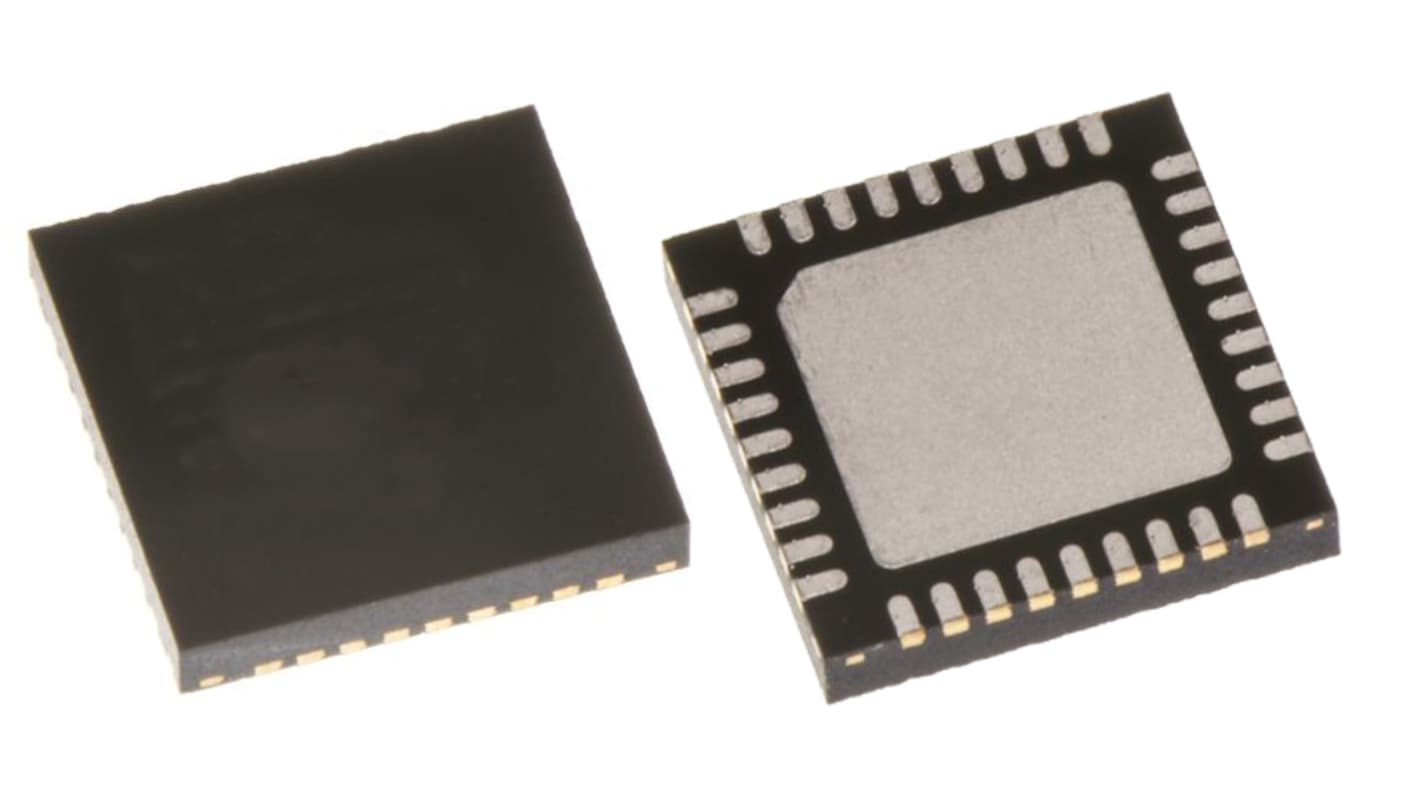

STMicroelectronics PWD5T60, Brushless DC Motor DC Motor Driver 36-Pin, VFQFPN
- RS Stock No.:
- 214-967
- Mfr. Part No.:
- PWD5T60
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 unit)*
£4.93
(exc. VAT)
£5.92
(inc. VAT)
FREE delivery for orders over £50.00
New product - Preorder today
- Shipping from 06 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £4.93 |
10 + | £4.44 |
*price indicative
- RS Stock No.:
- 214-967
- Mfr. Part No.:
- PWD5T60
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Motor Type | Brushless DC Motor | |
Configuration | 3 Phase | |
Output Configuration | Full Bridge | |
Maximum Supply Voltage | 20 V | |
Package Type | VFQFPN | |
Pin Count | 36 | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Motor Type Brushless DC Motor | ||
Configuration 3 Phase | ||
Output Configuration Full Bridge | ||
Maximum Supply Voltage 20 V | ||
Package Type VFQFPN | ||
Pin Count 36 | ||
- COO (Country of Origin):
- CN
The STMicroelectronics Three-phase high-density power driver integrating gate driver and six N-channel power MOSFETs. The PWD5T60 is the optimal solution for motor drive applications such as fans, pumps and small appliances. The integrated power MOSFETs have RDS(on) of 1.38 Ω and 500 V blocking voltage. The high integration of the device allows to efficiently drive loads with reduced footprint, making PWD5T60 the optimal solution for space constrained applications.
UVLO function on low side and high side
Interlocking and dead time functions
Dedicated enable pin
Interlocking and dead time functions
Dedicated enable pin
