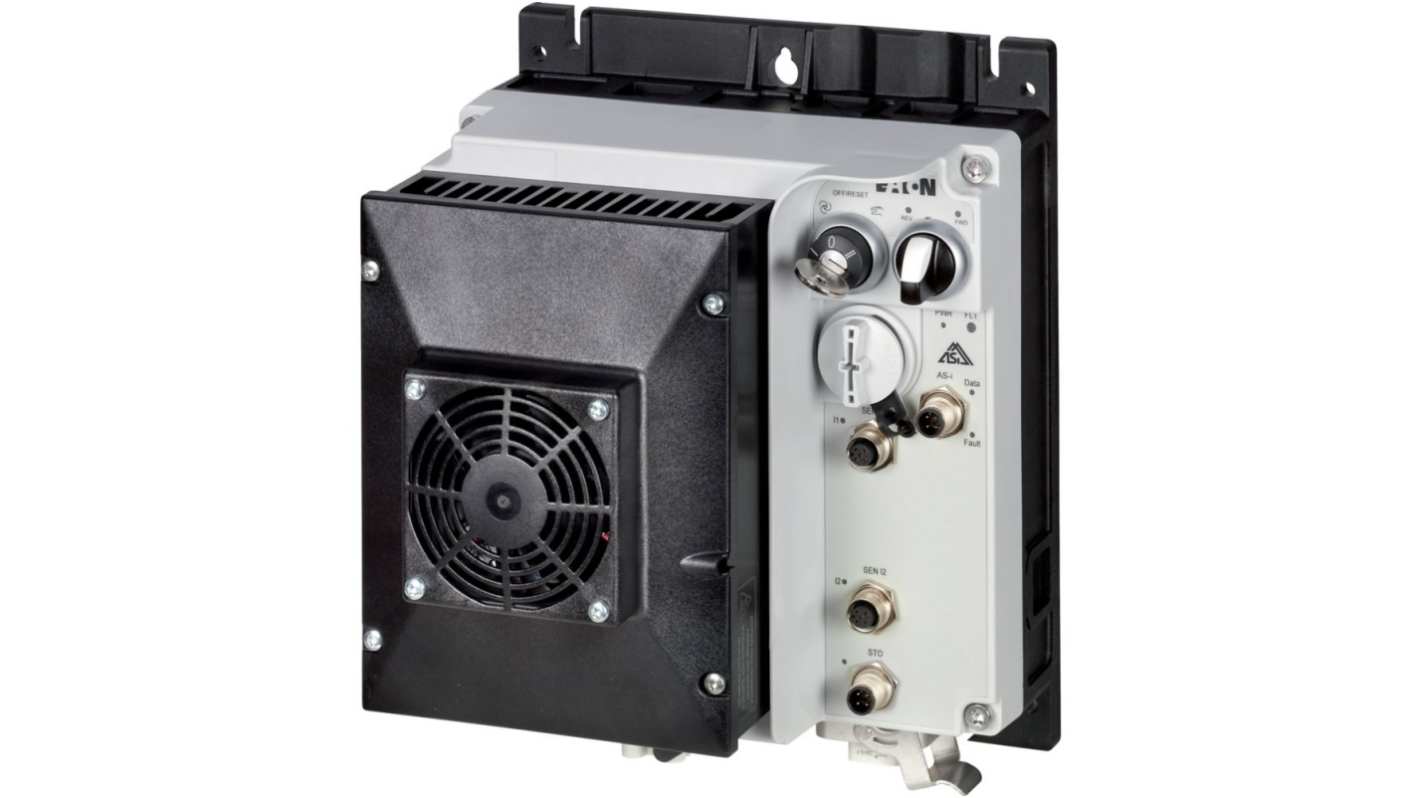

Eaton 4 kW Motor Controller, 400V ac, 480 V ac, 3 Phase, 8.5A, Speed Controller Function
- RS Stock No.:
- 252-353
- Mfr. Part No.:
- 198850 RASP5-8402A31-4120111S1
- Brand:
- Eaton
Subtotal (1 unit)*
£1,322.59
(exc. VAT)
£1,587.11
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,322.59 |
*price indicative
- RS Stock No.:
- 252-353
- Mfr. Part No.:
- 198850 RASP5-8402A31-4120111S1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Motor Controller | |
| Number of Phases | 3 | |
| Control Function | Speed Controller | |
| Supply Voltage | 400, 480V ac | |
| Output Voltage | 480V | |
| Current Rating | 8.5A | |
| Power Rating | 4kW | |
| Overall Length | 270mm | |
| Overall Width | 220mm | |
| Overall Depth | 195mm | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Series | Moeller | |
| Standards/Approvals | IEC/EN 61800-5-1, RoHS, UL 61800-5-1, CE | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Motor Controller | ||
Number of Phases 3 | ||
Control Function Speed Controller | ||
Supply Voltage 400, 480V ac | ||
Output Voltage 480V | ||
Current Rating 8.5A | ||
Power Rating 4kW | ||
Overall Length 270mm | ||
Overall Width 220mm | ||
Overall Depth 195mm | ||
IP Rating IP65 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Series Moeller | ||
Standards/Approvals IEC/EN 61800-5-1, RoHS, UL 61800-5-1, CE | ||
- COO (Country of Origin):
- GB
The Eaton Speed controller is a state-of-the-art solution designed for precise control and monitoring in various applications. With a robust design tailored for 8.5 A and 4 kW capabilities, it seamlessly integrates into systems requiring reliable speed management. The device not only supports multiple motor types, including BLDC and synchronous reluctance motors, but also features intelligent diagnostics through AS-Interface connectivity.
Adjustable current limitation for tailored motor performance
Offers rapid speed control with fixed speeds and potentiometer options
Designed for efficient heat dissipation enhancing reliability
IP65 rated for superior protection against dust and moisture
