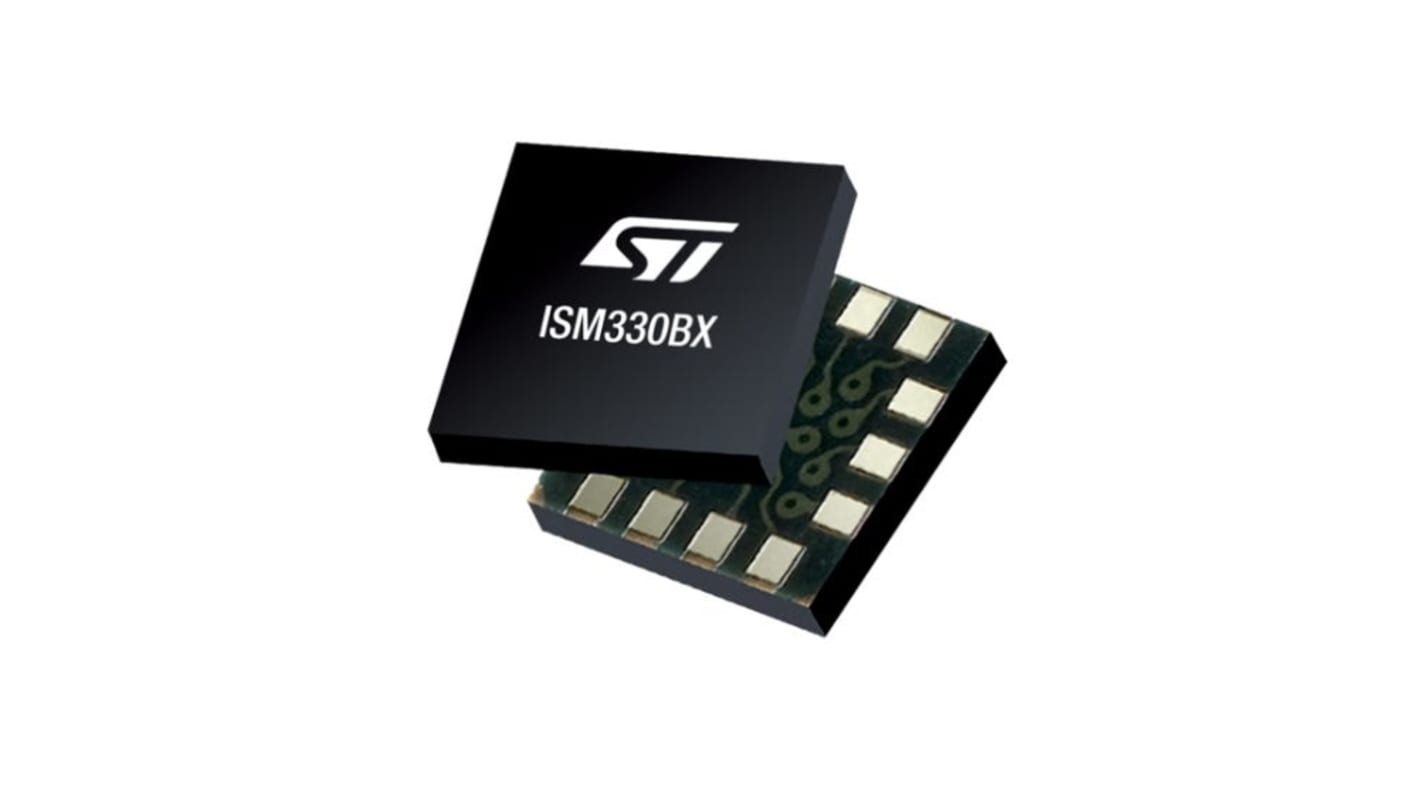

STMicroelectronics 6-Axis Surface Sensor 1.71 V 3.6 V, LGA-14L, 14-Pin

View all Motion Sensor ICs

Subtotal (1 reel of 10000 units)*

£36,210.00

(exc. VAT)

£43,450.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
10000 +£3.621£36,210.00

*price indicative

RS Stock No.:
151-683
Mfr. Part No.:
ISM330BXTR
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

Sensor

Sensor Type

Gyroscope, Accelerometer

Number of Axis

6

Technology

Inertial Sensor

Mount Type

Surface

Maximum Frequency Response

2.8kHz

Minimum Frequency Response

1.875Hz

Minimum Supply Voltage

1.71V

Maximum Supply Voltage

3.6V

Package Type

LGA-14L

Minimum Operating Temperature

-40°C

Sensitivity

1%

Pin Count

14

Maximum Operating Temperature

85°C

Length

2.5mm

Height

0.71mm

Standards/Approvals

ECOPACK and RoHS

Series

ISM330BX

Width

3 mm

Supply Current

0.6mA

Automotive Standard

No

Response Time

0.8s

COO (Country of Origin):
PH
The STMicroelectronics inertial measurement unit having 6 Axis with wide bandwidth. It is system-in-package inertial measurement unit (IMU) featuring a3‑Axis digital accelerometer and a 3-Axis digital gyroscope with triple channels for processing acceleration and angular rate data for motion tracking and vibrationmeasurements along with Qvar sensing on up to three separate channels with dedicated configuration, processing, and filtering.

Embedded temperature sensor

TDM controller Interface

RoHS compliant
