STMicroelectronics 6-Axis Surface Accelerometer & Gyroscope 1.71 V 3.6 V, MIPI I3CSM, I2C, SPI, LGA-14L, 14-Pin

View all Motion Sensor ICs
Bulk discount available

Subtotal (1 unit)*

£4.35

(exc. VAT)

£5.22

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 300 unit(s) shipping from 18 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£4.35
10 +£3.92

*price indicative

RS Stock No.:
396-400
Mfr. Part No.:
LSM6DSV320XTR
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Sensor Type

Accelerometer, Gyroscope

Product Type

Accelerometer & Gyroscope

Number of Axis

6

Technology

MEMS, Analogue

Mount Type

Surface

Interface Type

MIPI I3CSM, I2C, SPI

Maximum Frequency Response

7.68kHz

Minimum Frequency Response

1.875Hz

Minimum Supply Voltage

1.71V

Package Type

LGA-14L

Maximum Supply Voltage

3.6V

Minimum Operating Temperature

-40°C

Pin Count

14

Maximum Operating Temperature

85°C

Series

LSM6DSV320X

Height

0.83mm

Length

2.5mm

Standards/Approvals

ECOPACK and RoHS

Width

3 mm

Supply Current

0.80mA

Automotive Standard

No

COO (Country of Origin):
PH

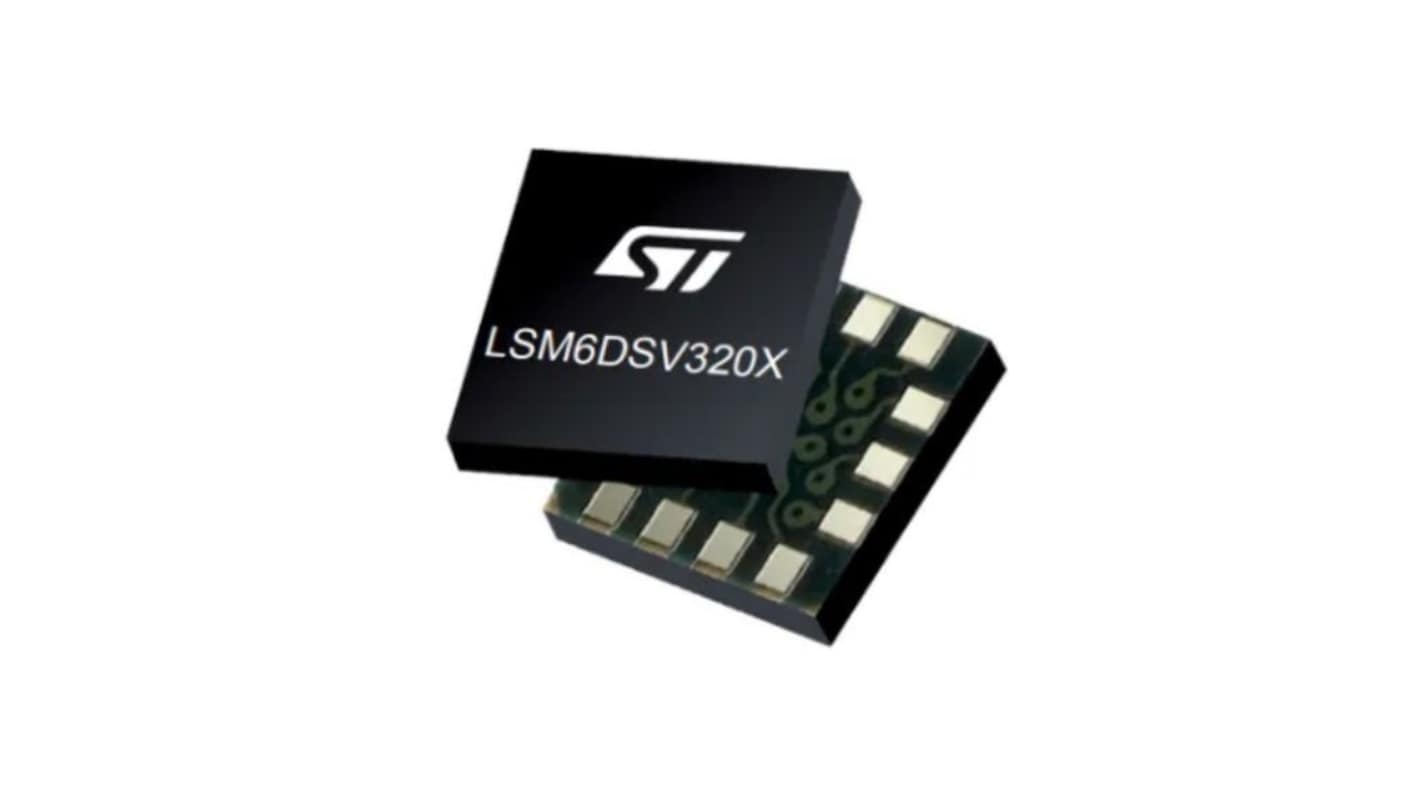

The STMicroelectronics Inertial Measurement Unit is a high end, low noise, low power small IMU. Its featuring a 3 axis digital low-g accelerometer at 16 g, a 3 axis digital high-g accelerometer at 320 g, and a 3-axis digital gyroscope, which offers the best IMU sensor with a quad channel architecture for processing acceleration and angular rate data on four separate channels such as user interface, OIS, EIS, and high g accelerometer data with dedicated configuration, processing, and filtering along with a dedicated high-g sensor for high-g shock and car crash detection.

OIS configurable from the auxiliary or primary interface

EIS dedicated channel on primary interface with dedicated filtering

Significant motion detection and tilt detection

Embedded temperature sensor
