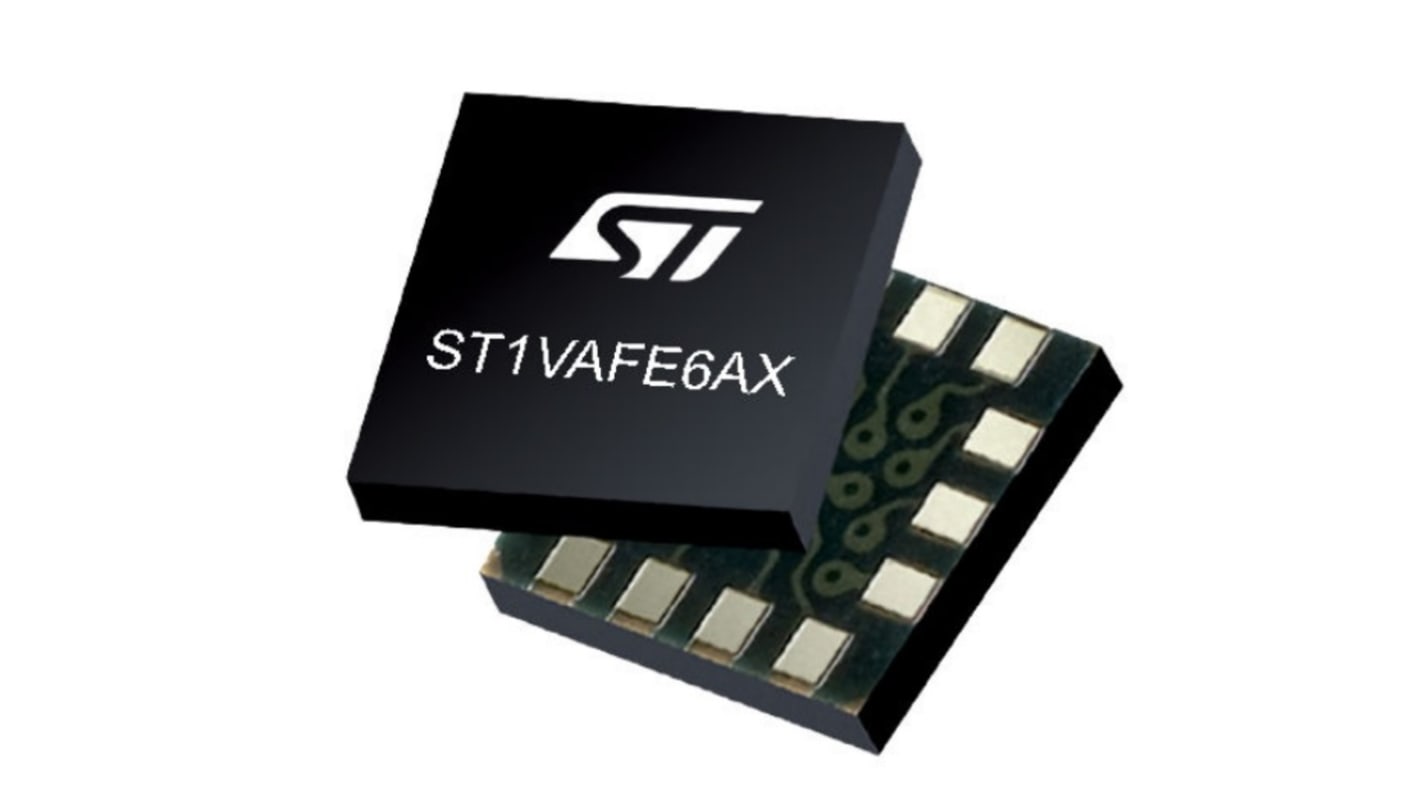

STMicroelectronics 6-Axis Surface Motion Sensor Module 1.71 V 3.6 V, SPI, I2C, LGA-14L, 14-Pin
- RS Stock No.:
- 136-268
- Mfr. Part No.:
- ST1VAFE6AXTR
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 tape of 1 unit)*
£3.88
(exc. VAT)
£4.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 293 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tape(s) | Per Tape |
|---|---|
| 1 - 9 | £3.88 |
| 10 - 99 | £3.50 |
| 100 - 499 | £3.22 |
| 500 - 999 | £2.99 |
| 1000 + | £2.76 |
*price indicative
- RS Stock No.:
- 136-268
- Mfr. Part No.:
- ST1VAFE6AXTR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Motion Sensor Module | |
| Sensor Type | Gyroscope, Accelerometer | |
| Number of Axis | 6 | |
| Technology | Accelerometer | |
| Mount Type | Surface | |
| Interface Type | SPI, I2C | |
| Maximum Frequency Response | 7.68kHz | |
| Minimum Frequency Response | 1.875Hz | |
| Minimum Supply Voltage | 1.71V | |
| Maximum Supply Voltage | 3.6V | |
| Package Type | LGA-14L | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 14 | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | ECOPACK and RoHS | |
| Length | 2.5mm | |
| Height | 0.71mm | |
| Width | 3 mm | |
| Series | ST1VAFE6AX | |
| Response Time | 500μs | |
| Automotive Standard | No | |
| Supply Current | 0.6mA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Motion Sensor Module | ||
Sensor Type Gyroscope, Accelerometer | ||
Number of Axis 6 | ||
Technology Accelerometer | ||
Mount Type Surface | ||
Interface Type SPI, I2C | ||
Maximum Frequency Response 7.68kHz | ||
Minimum Frequency Response 1.875Hz | ||
Minimum Supply Voltage 1.71V | ||
Maximum Supply Voltage 3.6V | ||
Package Type LGA-14L | ||
Minimum Operating Temperature -40°C | ||
Pin Count 14 | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals ECOPACK and RoHS | ||
Length 2.5mm | ||
Height 0.71mm | ||
Width 3 mm | ||
Series ST1VAFE6AX | ||
Response Time 500μs | ||
Automotive Standard No | ||
Supply Current 0.6mA | ||
- COO (Country of Origin):
- PH
The STMicroelectronics biosensor combines a vertical analog front-end for bio potential signals with a 6-axis IMU for motion tracking in a compact form factor. It features advanced data processing capabilities including a finite state machine and machine learning core for context-aware analysis. Designed for low power consumption, the device integrates bio potential and motion data, allowing efficient standalone processing. It is suitable for applications in digital healthcare, wearables, and activity tracking, with versatile communication options and built-in sensor fusion algorithms.
Dual channels for bio potential detection and motion tracking
Programmable finite state machine with high data rate
Machine learning core with exportable AI features
Compact 2.5 mm x 3 mm x 0.71 mm LGA package
