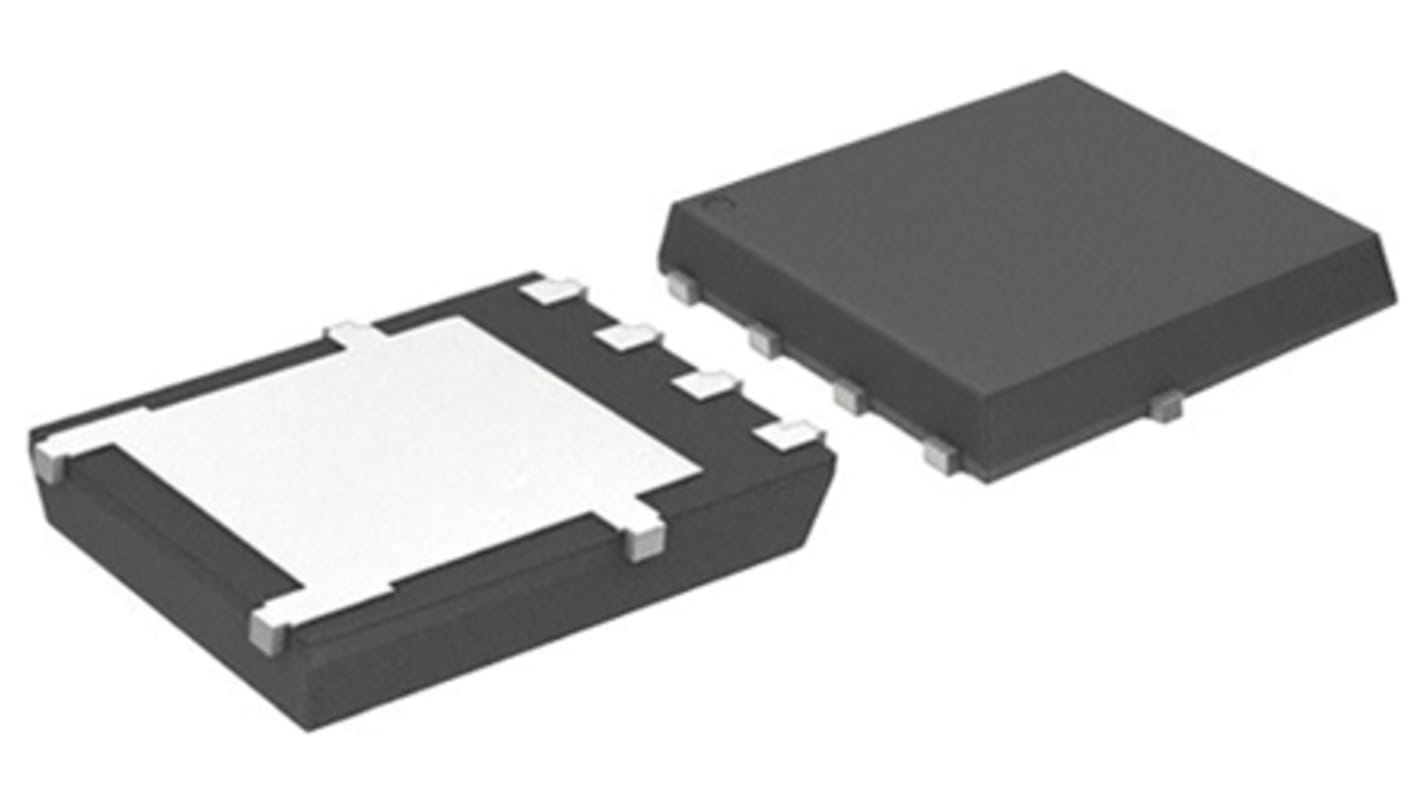

onsemi NTMFS Type N-Channel MOSFET, 37 A, 40 V Enhancement, 5-Pin DFN NTMFS5C468NLT1G
- RS Stock No.:
- 922-9578
- Mfr. Part No.:
- NTMFS5C468NLT1G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 25 units)*
£5.925
(exc. VAT)
£7.10
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 8,325 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 100 | £0.237 | £5.93 |
| 125 - 475 | £0.147 | £3.68 |
| 500 - 1225 | £0.144 | £3.60 |
| 1250 - 3725 | £0.14 | £3.50 |
| 3750 + | £0.136 | £3.40 |
*price indicative
- RS Stock No.:
- 922-9578
- Mfr. Part No.:
- NTMFS5C468NLT1G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 37A | |
| Maximum Drain Source Voltage Vds | 40V | |
| Package Type | DFN | |
| Series | NTMFS | |
| Mount Type | Surface | |
| Pin Count | 5 | |
| Maximum Drain Source Resistance Rds | 17.6mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Power Dissipation Pd | 28W | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 7.3nC | |
| Forward Voltage Vf | 1.2V | |
| Maximum Operating Temperature | 175°C | |
| Height | 1.05mm | |
| Width | 6.1 mm | |
| Length | 5.1mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 37A | ||
Maximum Drain Source Voltage Vds 40V | ||
Package Type DFN | ||
Series NTMFS | ||
Mount Type Surface | ||
Pin Count 5 | ||
Maximum Drain Source Resistance Rds 17.6mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Power Dissipation Pd 28W | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 7.3nC | ||
Forward Voltage Vf 1.2V | ||
Maximum Operating Temperature 175°C | ||
Height 1.05mm | ||
Width 6.1 mm | ||
Length 5.1mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
N-Channel Power MOSFET, 40V, ON Semiconductor
MOSFET Transistors, ON Semiconductor
