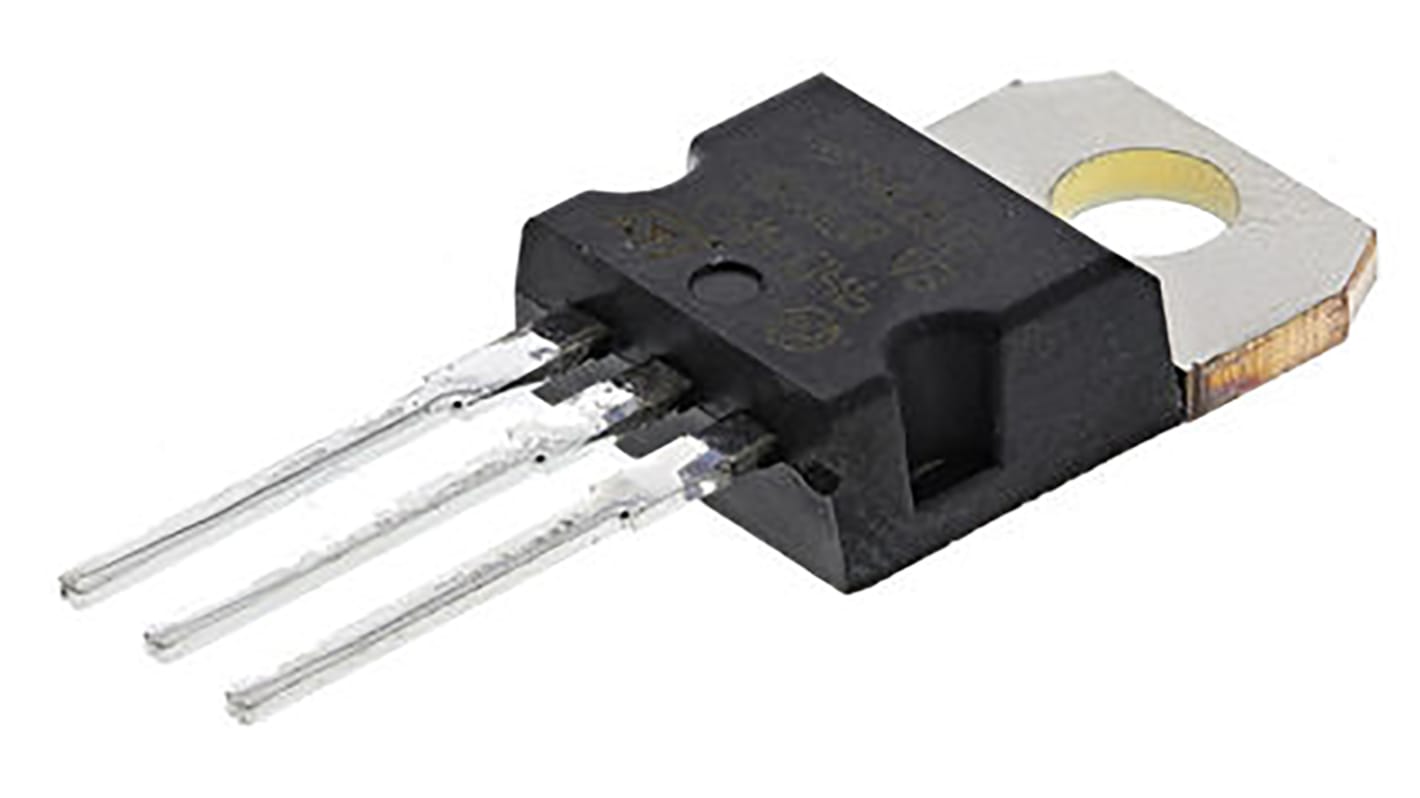

STMicroelectronics Type N-Channel MOSFET, 5.2 A, 800 V Enhancement, 3-Pin TO-220

View all MOSFETs
Bulk discount available

Subtotal (1 tube of 50 units)*

£56.00

(exc. VAT)

£67.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,850 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
50 - 50£1.12£56.00
100 - 450£0.875£43.75
500 - 950£0.743£37.15
1000 - 4950£0.619£30.95
5000 +£0.582£29.10

*price indicative

RS Stock No.:
920-6626
Mfr. Part No.:
STP7NK80Z
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

5.2A

Maximum Drain Source Voltage Vds

800V

Package Type

TO-220

Mount Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance Rds

1.8Ω

Channel Mode

Enhancement

Minimum Operating Temperature

-55°C

Maximum Gate Source Voltage Vgs

30 V

Maximum Power Dissipation Pd

125W

Typical Gate Charge Qg @ Vgs

40nC

Forward Voltage Vf

1.6V

Maximum Operating Temperature

150°C

Standards/Approvals

No

Width

4.6 mm

Length

10.4mm

Height

9.15mm

Automotive Standard

No

N-Channel MDmesh™ SuperMESH™, 700V to 1200V, STMicroelectronics


MOSFET Transistors, STMicroelectronics
