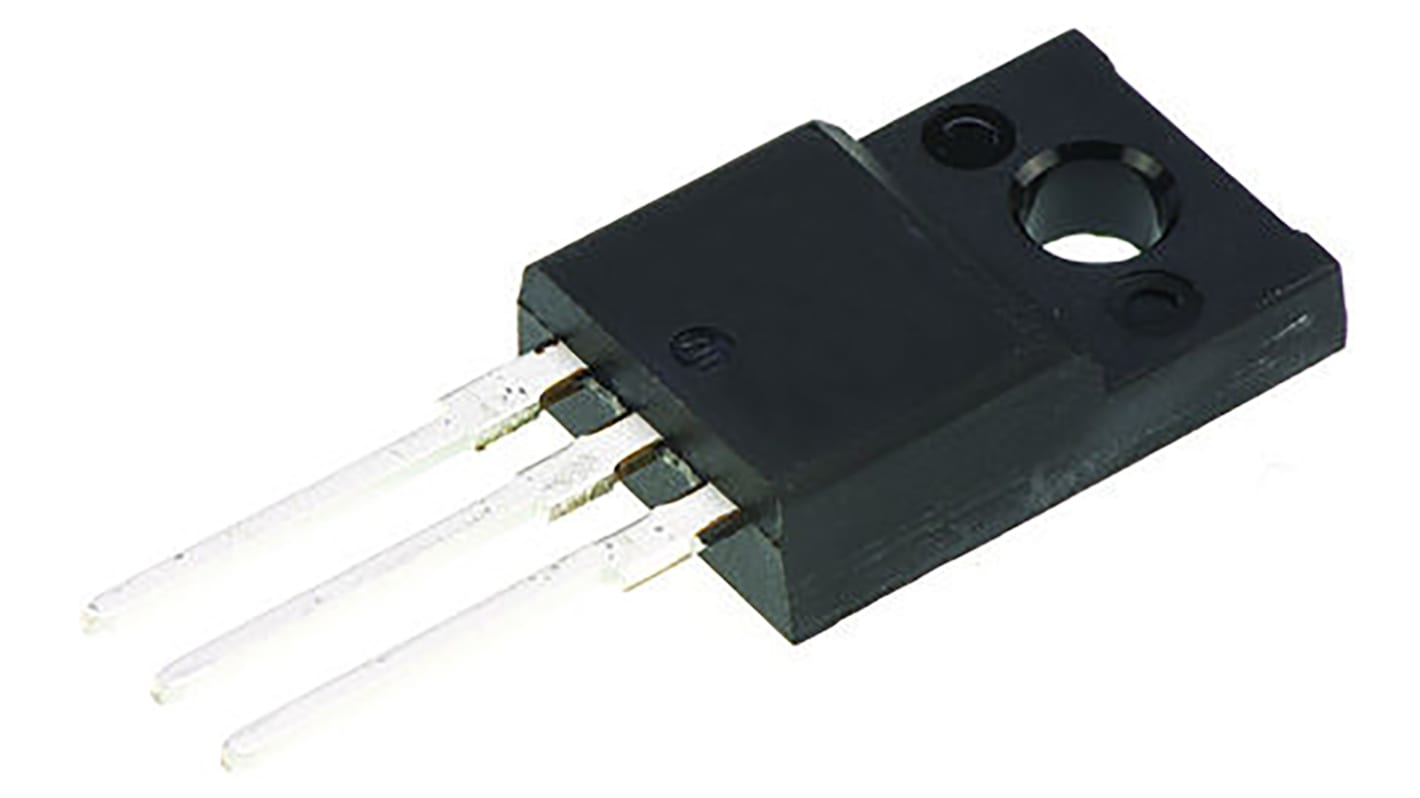

STMicroelectronics STripFET II N-Channel MOSFET, 80 A, 100 V, 3-Pin TO-220FP STP80NF10FP
- RS Stock No.:
- 920-6572
- Mfr. Part No.:
- STP80NF10FP
- Brand:
- STMicroelectronics
Subtotal (1 tube of 50 units)*
£83.30
(exc. VAT)
£99.95
(inc. VAT)
FREE delivery for orders over £50.00
- 600 unit(s) ready to ship
Units | Per unit | Per Tube* |
---|---|---|
50 - 50 | £1.666 | £83.30 |
100 - 450 | £1.419 | £70.95 |
500 - 950 | £1.261 | £63.05 |
1000 - 4950 | £1.173 | £58.65 |
5000 + | £0.988 | £49.40 |
*price indicative
- RS Stock No.:
- 920-6572
- Mfr. Part No.:
- STP80NF10FP
- Brand:
- STMicroelectronics
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Channel Type | N | |
Maximum Continuous Drain Current | 80 A | |
Maximum Drain Source Voltage | 100 V | |
Package Type | TO-220FP | |
Series | STripFET II | |
Mounting Type | Through Hole | |
Pin Count | 3 | |
Maximum Drain Source Resistance | 15 mΩ | |
Channel Mode | Enhancement | |
Maximum Gate Threshold Voltage | 4V | |
Minimum Gate Threshold Voltage | 2V | |
Maximum Power Dissipation | 45 W | |
Transistor Configuration | Single | |
Maximum Gate Source Voltage | -20 V, +20 V | |
Width | 4.6mm | |
Length | 10.4mm | |
Typical Gate Charge @ Vgs | 135 nC @ 10 V | |
Number of Elements per Chip | 1 | |
Transistor Material | Si | |
Maximum Operating Temperature | +175 °C | |
Minimum Operating Temperature | -55 °C | |
Height | 9.3mm | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Channel Type N | ||
Maximum Continuous Drain Current 80 A | ||
Maximum Drain Source Voltage 100 V | ||
Package Type TO-220FP | ||
Series STripFET II | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 15 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 4V | ||
Minimum Gate Threshold Voltage 2V | ||
Maximum Power Dissipation 45 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage -20 V, +20 V | ||
Width 4.6mm | ||
Length 10.4mm | ||
Typical Gate Charge @ Vgs 135 nC @ 10 V | ||
Number of Elements per Chip 1 | ||
Transistor Material Si | ||
Maximum Operating Temperature +175 °C | ||
Minimum Operating Temperature -55 °C | ||
Height 9.3mm | ||
