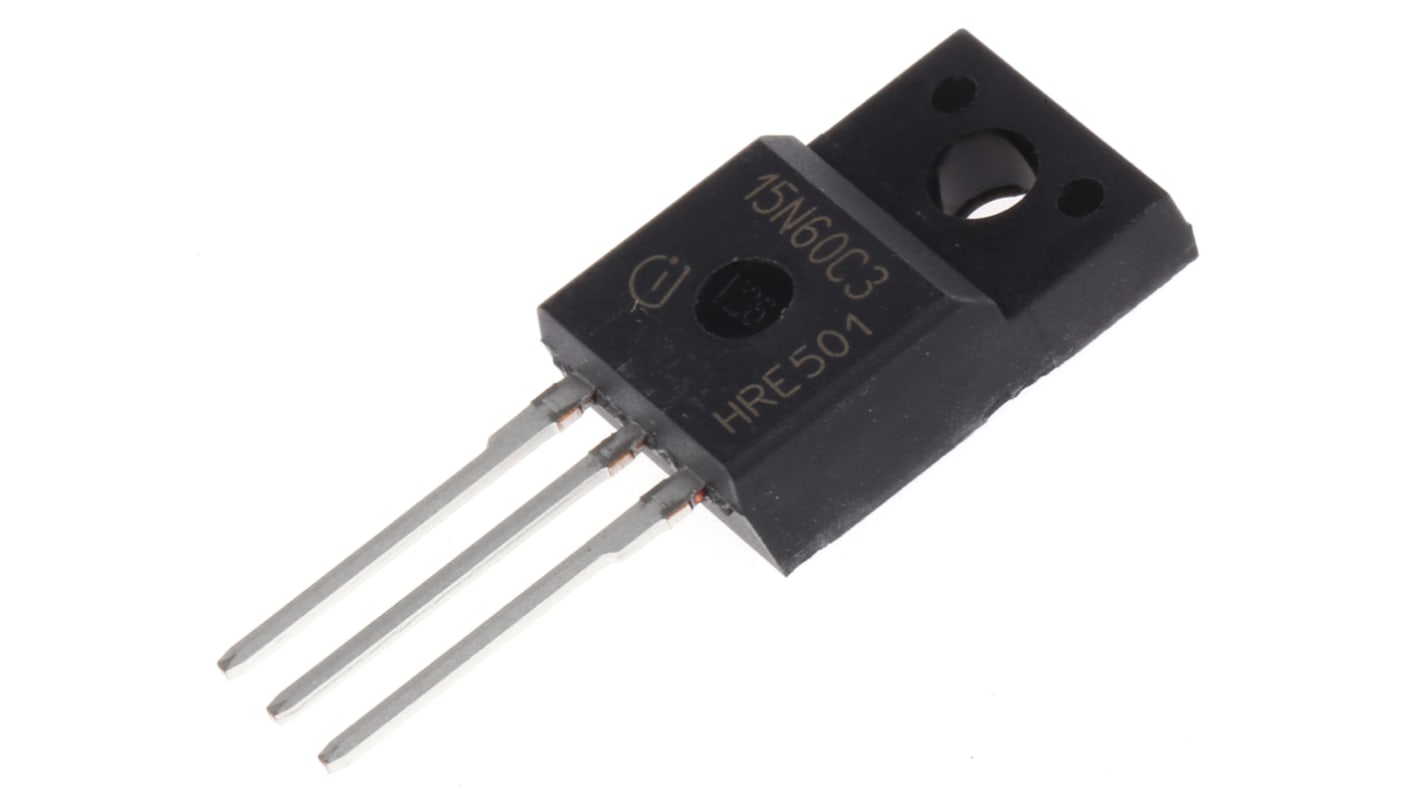

Infineon CoolMOS™ C3 N-Channel MOSFET, 15 A, 650 V, 3-Pin TO-220 FP SPA15N60C3XKSA1
- RS Stock No.:
- 753-3144
- Distrelec Article No.:
- 303-41-444
- Mfr. Part No.:
- SPA15N60C3XKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 unit)*
£1.96
(exc. VAT)
£2.35
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 24 left, ready to ship
- Final 22 unit(s) shipping from 30 October 2025
Units | Per unit |
|---|---|
| 1 - 9 | £1.96 |
| 10 - 24 | £1.86 |
| 25 - 49 | £1.78 |
| 50 - 99 | £1.71 |
| 100 + | £1.59 |
*price indicative
- RS Stock No.:
- 753-3144
- Distrelec Article No.:
- 303-41-444
- Mfr. Part No.:
- SPA15N60C3XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 15 A | |
| Maximum Drain Source Voltage | 650 V | |
| Series | CoolMOS™ C3 | |
| Package Type | TO-220 FP | |
| Mounting Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance | 280 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 3.9V | |
| Minimum Gate Threshold Voltage | 2.1V | |
| Maximum Power Dissipation | 34 W | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | -20 V, +20 V | |
| Width | 4.85mm | |
| Typical Gate Charge @ Vgs | 63 nC @ 10 V | |
| Maximum Operating Temperature | +150 °C | |
| Length | 10.65mm | |
| Number of Elements per Chip | 1 | |
| Transistor Material | Si | |
| Height | 9.83mm | |
| Minimum Operating Temperature | -55 °C | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 15 A | ||
Maximum Drain Source Voltage 650 V | ||
Series CoolMOS™ C3 | ||
Package Type TO-220 FP | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 280 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 3.9V | ||
Minimum Gate Threshold Voltage 2.1V | ||
Maximum Power Dissipation 34 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage -20 V, +20 V | ||
Width 4.85mm | ||
Typical Gate Charge @ Vgs 63 nC @ 10 V | ||
Maximum Operating Temperature +150 °C | ||
Length 10.65mm | ||
Number of Elements per Chip 1 | ||
Transistor Material Si | ||
Height 9.83mm | ||
Minimum Operating Temperature -55 °C | ||
Infineon CoolMOS™C3 Power MOSFET
MOSFET Transistors, Infineon
Infineon offers a large and comprehensive portfolio of MOSFET devices which includes the CoolMOS, OptiMOS and StrongIRFET families. They deliver best-in-class performance to bring more efficiency, power density and cost effectiveness. Designs requiring high quality and enhanced protection features benefit from AEC-Q101 industry standards Automotive qualified MOSFETs.
