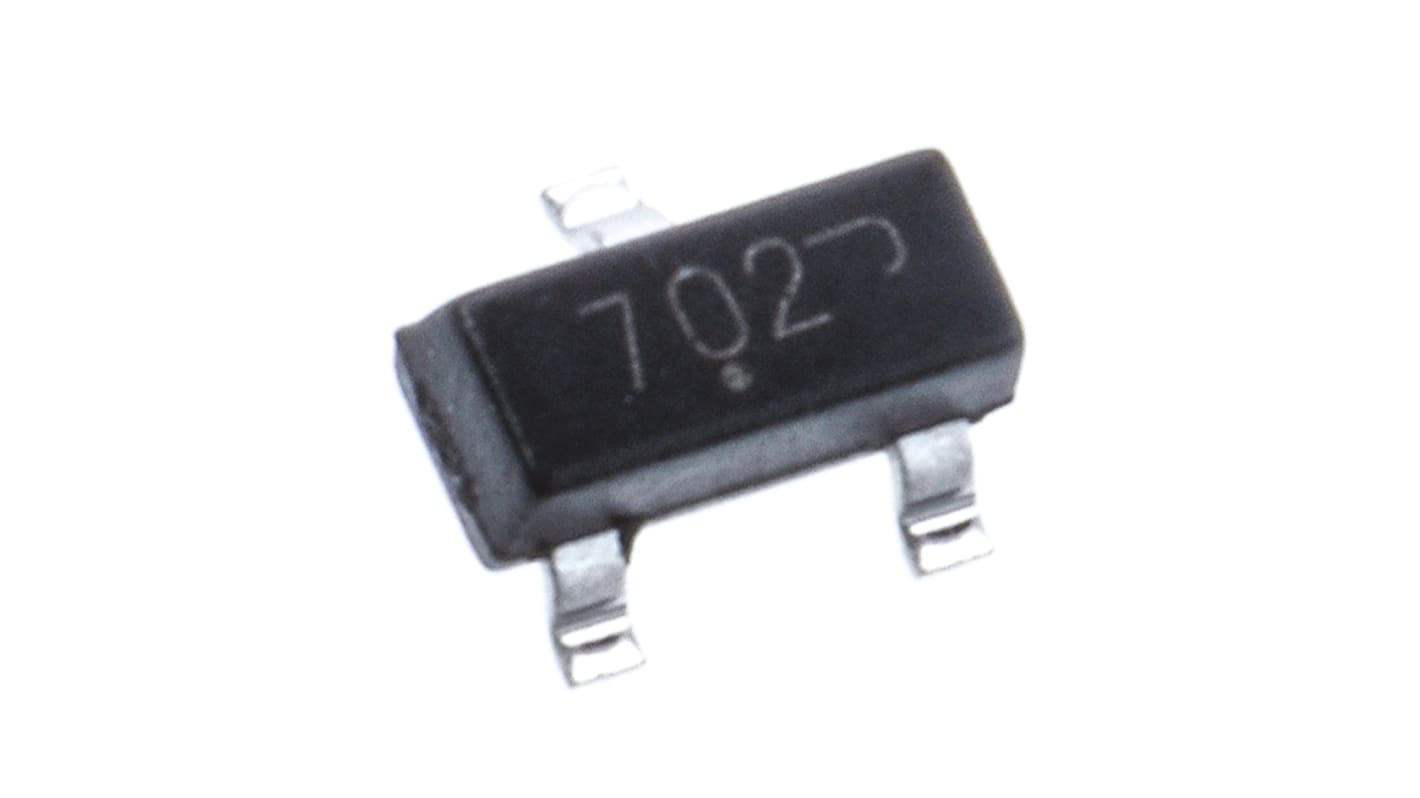

onsemi 2N7002L N-Channel MOSFET, 115 mA, 60 V Enhancement, 3-Pin SOT-23

Get a bulk buy discount

Add 1000 more to save £1.00

View bulk pricing options

Subtotal 500 units (supplied on a reel)*

£27.00

(exc. VAT)

£32.50

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 27,400 unit(s) shipping from 23 November 2026
  • Plus 12,000 unit(s) shipping from 14 January 2027
  • Plus 12,000 unit(s) shipping from 03 August 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Saving
500 - 950£0.054-
1000 - 2450£0.053£1.00
2500 - 4950£0.051£7.50
5000 +£0.05£20.00

*price indicative

Packaging Options:
RS Stock No.:
545-0012P
Mfr. Part No.:
2N7002LT1G
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Product Type

MOSFET

Channel Type

N

Maximum Continuous Drain Current Id

115mA

Maximum Drain Source Voltage Vds

60V

Package Type

SOT-23

Series

2N7002L

Mount Type

Surface

Pin Count

3

Maximum Drain Source Resistance Rds

7.5Ω

Channel Mode

Enhancement

Typical Gate Charge Qg @ Vgs

160nC

Maximum Gate Source Voltage Vgs

-20V, +20V

Minimum Operating Temperature

-55°C

Forward Voltage Vf

1.2V

Maximum Power Dissipation Pd

300mW

Maximum Operating Temperature

150°C

Height

940μm

Length

2.9mm

Standards/Approvals

No

Width

1.3mm

Automotive Standard

No

N-Channel Power MOSFET, 60V, ON Semiconductor


MOSFET Transistors, ON Semiconductor
