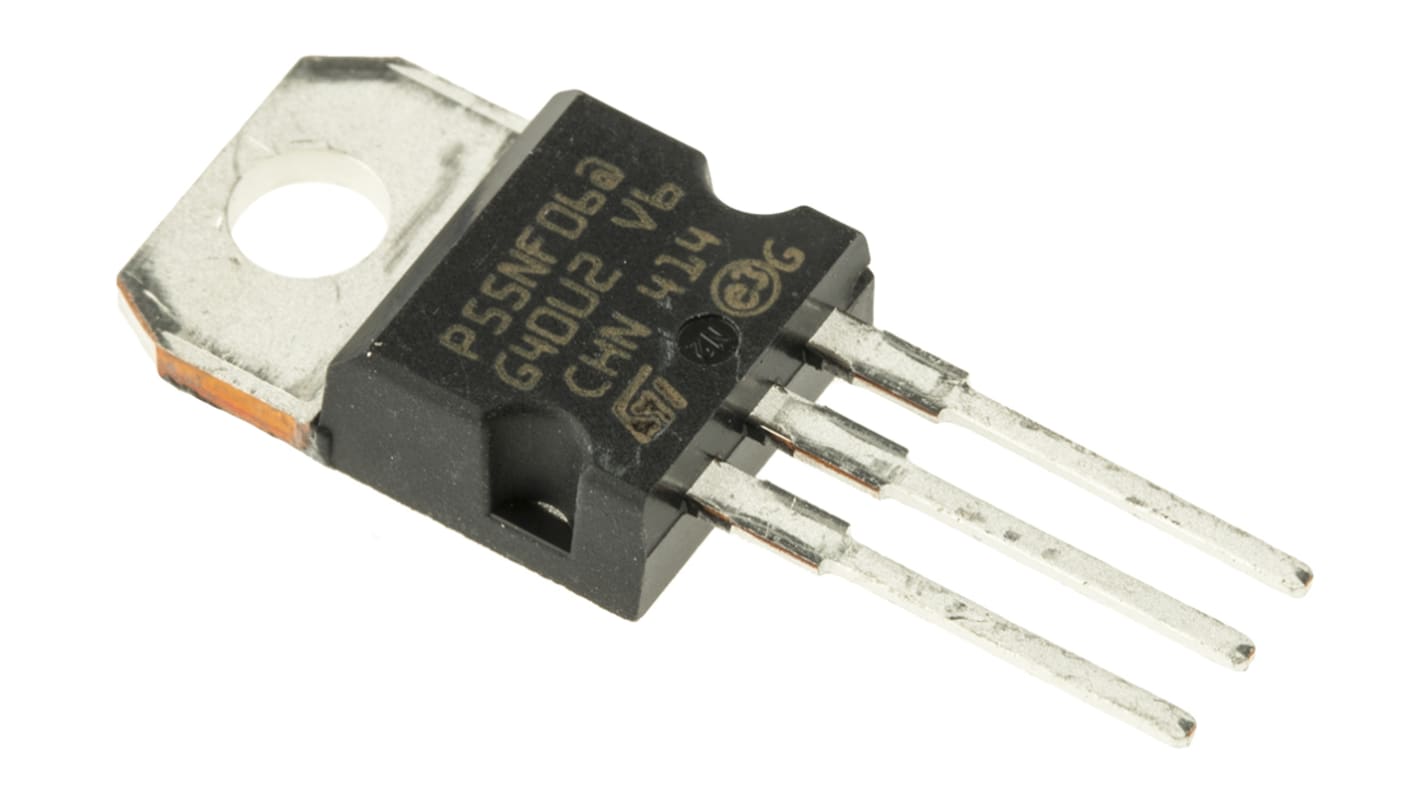

STMicroelectronics STripFET II N-Channel MOSFET, 50 A, 60 V, 3-Pin TO-220 STP55NF06

View all MOSFETs

Subtotal (1 pack of 5 units)*

£5.41

(exc. VAT)

£6.49

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 40 unit(s) ready to ship
  • Plus 35 unit(s) ready to ship from another location
  • Plus 95 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +£1.082£5.41

*price indicative

RS Stock No.:
485-7715
Mfr. Part No.:
STP55NF06
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Channel Type

N

Maximum Continuous Drain Current

50 A

Maximum Drain Source Voltage

60 V

Series

STripFET II

Package Type

TO-220

Mounting Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance

18 mΩ

Channel Mode

Enhancement

Maximum Gate Threshold Voltage

4V

Minimum Gate Threshold Voltage

2V

Maximum Power Dissipation

110 W

Transistor Configuration

Single

Maximum Gate Source Voltage

-20 V, +20 V

Width

4.6mm

Typical Gate Charge @ Vgs

44.5 nC @ 10 V

Transistor Material

Si

Maximum Operating Temperature

+175 °C

Length

10.4mm

Number of Elements per Chip

1

Height

9.15mm

Minimum Operating Temperature

-55 °C

N-Channel STripFET™ II, STMicroelectronics


STripFET™ MOSFETs with a wide breakdown voltage range offer ultra-low gate charge and low on-resistance.


MOSFET Transistors, STMicroelectronics
