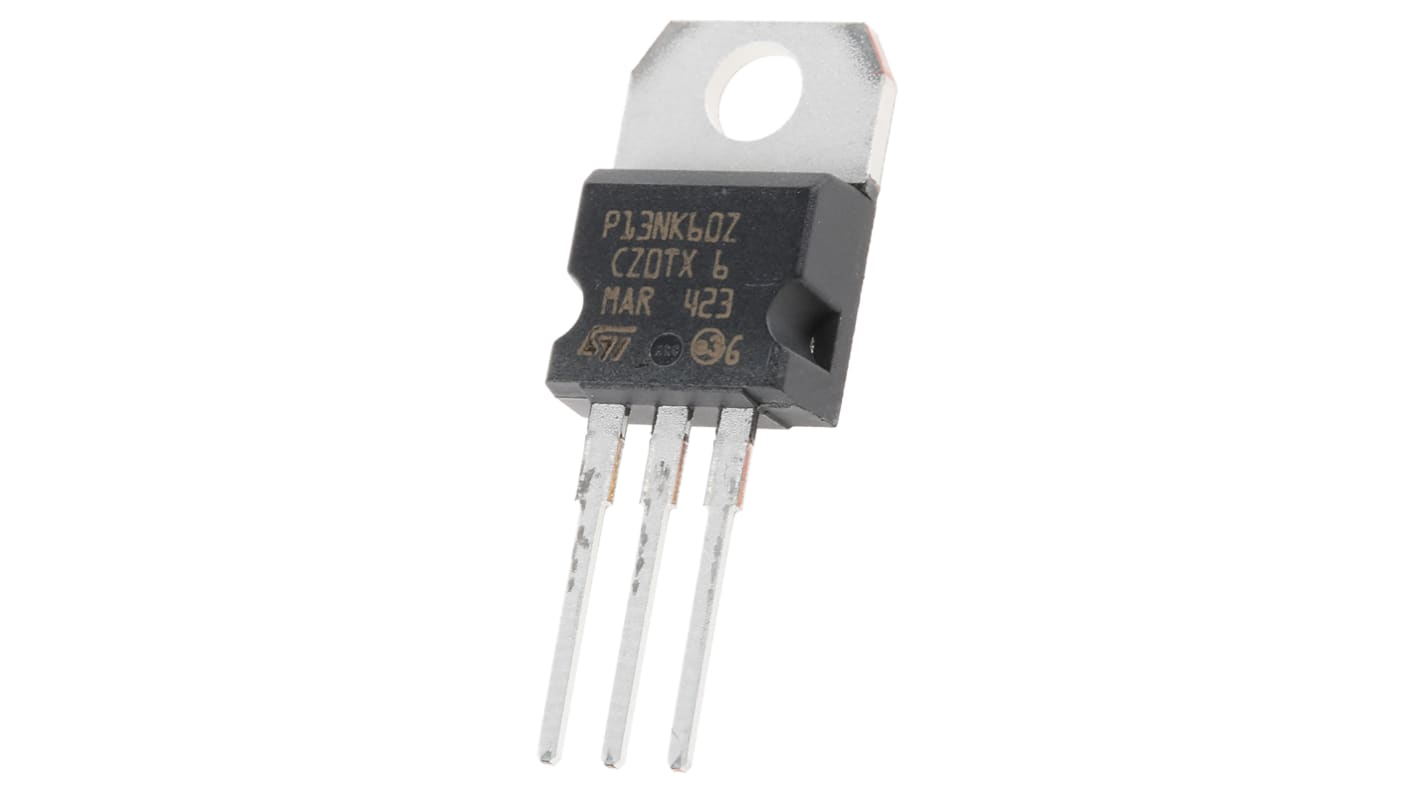

N-Channel MOSFET, 13 A, 600 V, 3-Pin TO-220 STMicroelectronics STP13NK60Z

RS Stock No.:: 485-7490
Mfr. Part No.:: STP13NK60Z
Brand:: STMicroelectronics

N-Channel MOSFET, 13 A, 600 V, 3-Pin TO-220 STMicroelectronics STP13NK60Z

Bulk discount available

Subtotal (1 pack of 5 units)**

£7.45

(exc. VAT)

£8.95

(inc. VAT)

Available to back order for despatch when stock is available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit	Per Pack**
5 - 5	£1.49	£7.45
10 - 95	£1.274	£6.37
100 - 495	£0.986	£4.93
500 - 995	£0.836	£4.18
1000 +	£0.738	£3.69

**price indicative

RS Stock No.:: 485-7490
Mfr. Part No.:: STP13NK60Z
Brand:: STMicroelectronics

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Channel Type	N
Maximum Continuous Drain Current	13 A
Maximum Drain Source Voltage	600 V
Package Type	TO-220
Series	MDmesh, SuperMESH
Mounting Type	Through Hole
Pin Count	3
Maximum Drain Source Resistance	550 mΩ
Channel Mode	Enhancement
Maximum Gate Threshold Voltage	4.5V
Minimum Gate Threshold Voltage	3V
Maximum Power Dissipation	150 W
Transistor Configuration	Single
Maximum Gate Source Voltage	-30 V, +30 V
Transistor Material	Si
Width	4.6mm
Number of Elements per Chip	1
Maximum Operating Temperature	+150 °C
Length	10.4mm
Typical Gate Charge @ Vgs	66 nC @ 10 V
Height	9.15mm
Minimum Operating Temperature	-55 °C

N-Channel MOSFET, 13 A, 600 V, 3-Pin TO-220 STMicroelectronics STP13NK60Z

FREE delivery for orders over £50.00

N-Channel MDmesh™ SuperMESH™, 250V to 650V, STMicroelectronics
