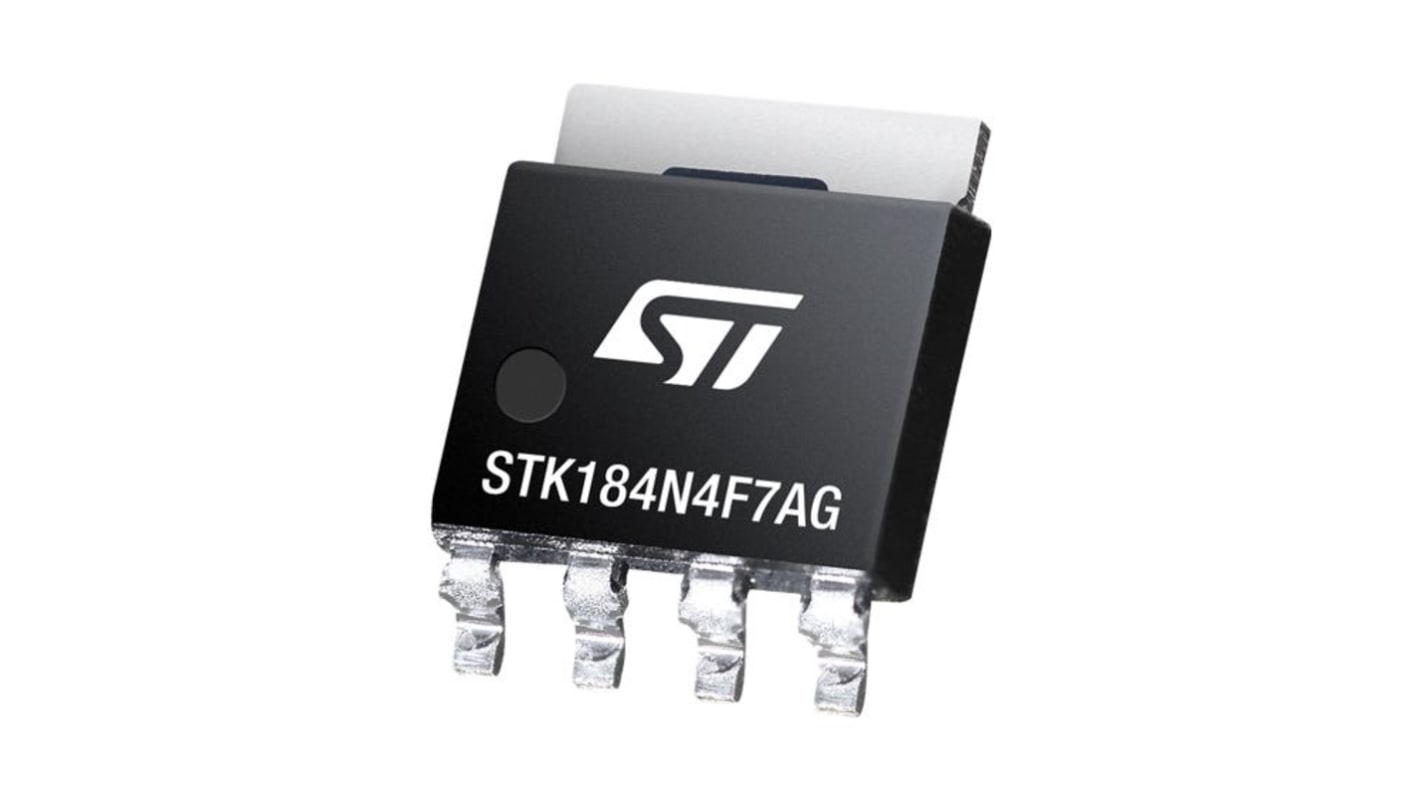

STMicroelectronics STripFETTM F7 Type N-Channel MOSFET, 100 A, 40 V Enhancement, 4-Pin ECOPACK STK184N4F7AG

View all MOSFETs
Bulk discount available

Subtotal (1 pack of 2 units)*

£3.09

(exc. VAT)

£3.708

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 300 unit(s), ready to ship
Units
Per unit
Per Pack*
2 - 8£1.545£3.09
10 - 98£1.39£2.78
100 - 248£1.255£2.51
250 - 498£1.125£2.25
500 +£1.015£2.03

*price indicative

Packaging Options:
RS Stock No.:
273-5096
Mfr. Part No.:
STK184N4F7AG
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Channel Type

Type N

Product Type

MOSFET

Maximum Continuous Drain Current Id

100A

Maximum Drain Source Voltage Vds

40V

Package Type

ECOPACK

Series

STripFETTM F7

Mount Type

Surface

Pin Count

4

Maximum Drain Source Resistance Rds

2.0mΩ

Channel Mode

Enhancement

Maximum Gate Source Voltage Vgs

±20 V

Maximum Power Dissipation Pd

136W

Forward Voltage Vf

1.1V

Typical Gate Charge Qg @ Vgs

35nC

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

175°C

Width

4.8 to 5 mm

Standards/Approvals

AEC-Q101

Height

1.2mm

Length

6.2mm

Automotive Standard

AEC-Q101

The STMicroelectronics automotive-grade N-channel power MOSFET utilizes STripFET F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for Faster and more efficient switching.

AEC-Q101 qualified

Excellent FoM

High avalanche ruggedness
