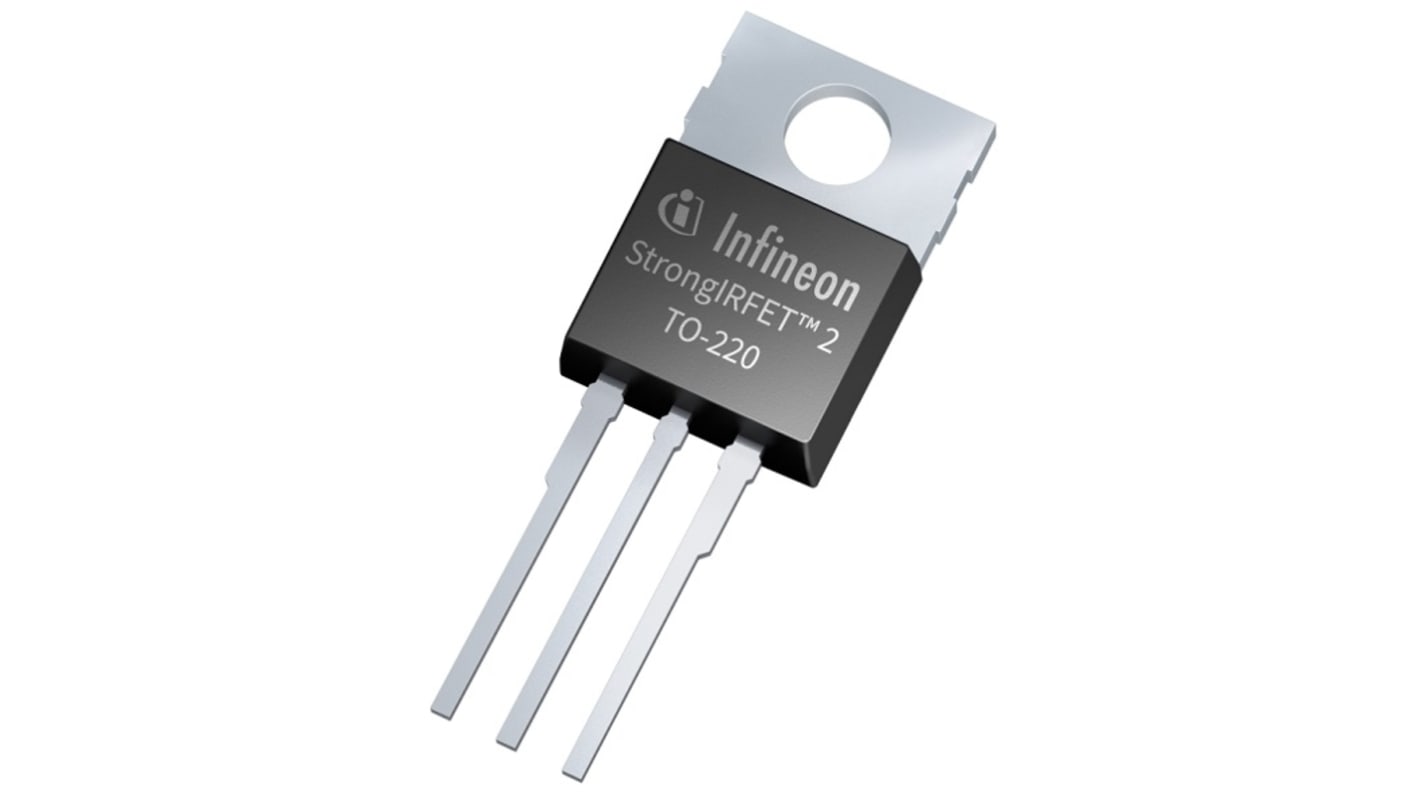

Infineon IPP Type N-Channel MOSFET, 193 A, 40 V Enhancement, 3-Pin TO-220
- RS Stock No.:
- 260-1057
- Mfr. Part No.:
- IPP015N04NF2SAKMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 tube of 1000 units)*
£685.00
(exc. VAT)
£822.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 1000 - 1000 | £0.685 | £685.00 |
| 2000 + | £0.63 | £630.00 |
*price indicative
- RS Stock No.:
- 260-1057
- Mfr. Part No.:
- IPP015N04NF2SAKMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 193A | |
| Maximum Drain Source Voltage Vds | 40V | |
| Package Type | TO-220 | |
| Series | IPP | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 1.5mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 188W | |
| Forward Voltage Vf | 0.86V | |
| Typical Gate Charge Qg @ Vgs | 106nC | |
| Maximum Operating Temperature | 175°C | |
| Height | 4.75mm | |
| Length | 15.8mm | |
| Width | 10.67 mm | |
| Standards/Approvals | IEC 61249-2-21, RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 193A | ||
Maximum Drain Source Voltage Vds 40V | ||
Package Type TO-220 | ||
Series IPP | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 1.5mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 188W | ||
Forward Voltage Vf 0.86V | ||
Typical Gate Charge Qg @ Vgs 106nC | ||
Maximum Operating Temperature 175°C | ||
Height 4.75mm | ||
Length 15.8mm | ||
Width 10.67 mm | ||
Standards/Approvals IEC 61249-2-21, RoHS | ||
Automotive Standard No | ||
The Infineon MOSFET provides an addressing a broad range of applications from low to high switching frequency having a broad availability from distribution partners to excellent price and performance ratio.
Ideal for high and low switching frequency
Industry standard footprint through hole package
