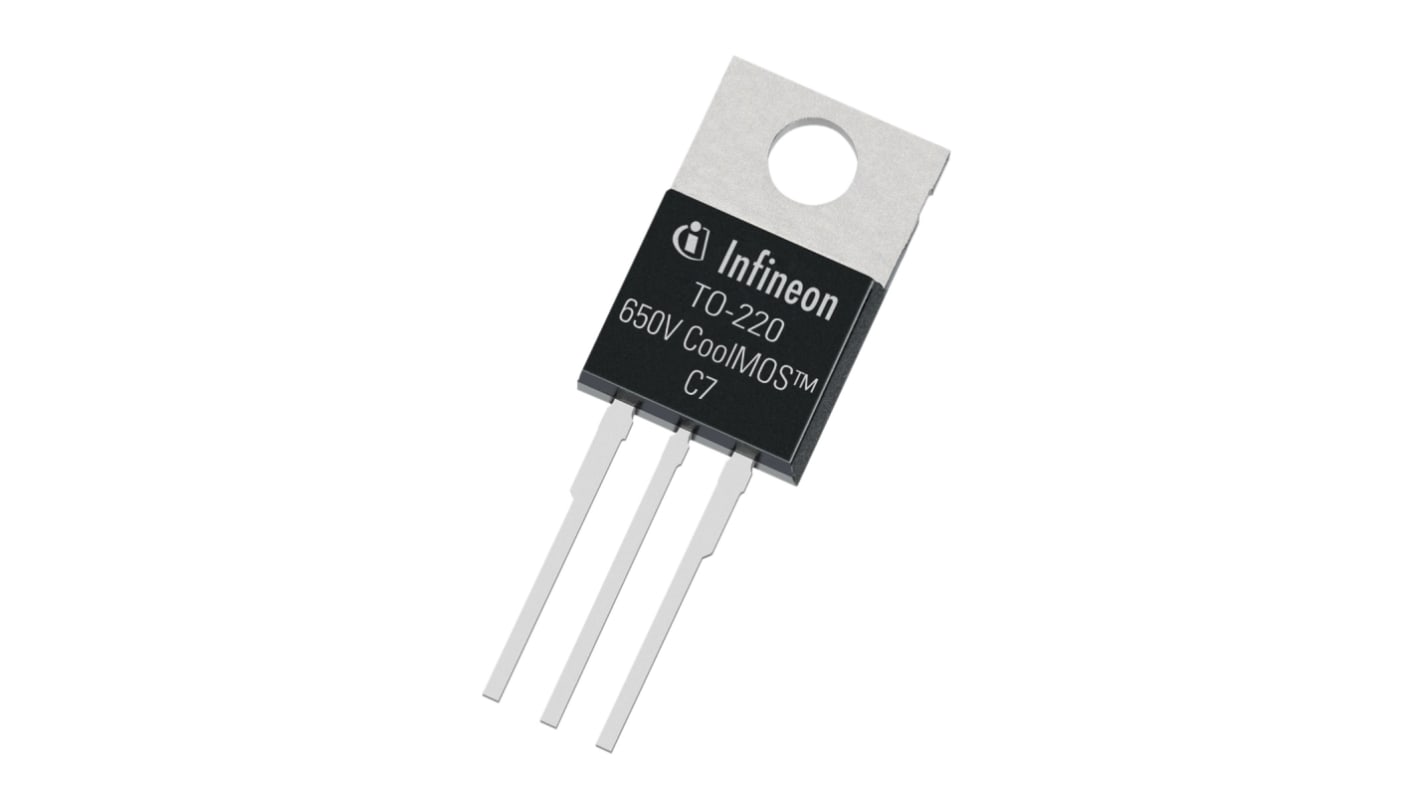

Infineon IPP Type N-Channel MOSFET, 24 A, 650 V, 3-Pin TO-220 IPP65R095C7XKSA1

RS Stock No.:: 258-3899
Mfr. Part No.:: IPP65R095C7XKSA1
Brand:: Infineon

Infineon IPP Type N-Channel MOSFET, 24 A, 650 V, 3-Pin TO-220 IPP65R095C7XKSA1

Subtotal (1 unit)*

£1.58

(exc. VAT)

£1.90

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 20 unit(s) shipping from 29 December 2025
Plus 2,000 unit(s) shipping from 09 February 2026
Plus 500 unit(s) shipping from 16 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1.58

*price indicative

RS Stock No.:: 258-3899
Mfr. Part No.:: IPP65R095C7XKSA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Channel Type	Type N
	Product Type	MOSFET
	Maximum Continuous Drain Current Id	24A
	Maximum Drain Source Voltage Vds	650V
	Package Type	TO-220
	Series	IPP
	Pin Count	3
	Maximum Drain Source Resistance Rds	95mΩ
	Minimum Operating Temperature	-55°C
	Maximum Gate Source Voltage Vgs	30 V
	Maximum Power Dissipation Pd	128W
	Typical Gate Charge Qg @ Vgs	45nC
	Forward Voltage Vf	0.9V
	Maximum Operating Temperature	150°C
	Standards/Approvals	RoHS
	Automotive Standard	No

	Select all
	Brand Infineon
	Channel Type Type N
	Product Type MOSFET
	Maximum Continuous Drain Current Id 24A
	Maximum Drain Source Voltage Vds 650V
	Package Type TO-220
	Series IPP
	Pin Count 3
	Maximum Drain Source Resistance Rds 95mΩ
	Minimum Operating Temperature -55°C
	Maximum Gate Source Voltage Vgs 30 V
	Maximum Power Dissipation Pd 128W
	Typical Gate Charge Qg @ Vgs 45nC
	Forward Voltage Vf 0.9V
	Maximum Operating Temperature 150°C
	Standards/Approvals RoHS
	Automotive Standard No

Datasheet - IPP65R095C7XKSA1

The Infineon CoolMOS is are volutionary technology for high voltage power MOSFETs, designed according to the super junction principle and pioneered by Infineon Technologies. CoolMOS C7 series combines the experience of the leading SJ MOSFET supplier with high class innovation. The product portfolio provides all benefits offset switching super junction MOSFETs offering better efficiency, reduced gate charge, easy implementation and outstanding reliability.

Lower gate charge Qg

Space saving through use of smaller packages or reduction of parts

Lowest conduction losses/package

Low switching losses

Better light load efficiency
