Infineon MOSFET, 150 A, 1200 V AG-EASY1BS-1 FF08MR12W1MA1B11ABPSA1
- RS Stock No.:
- 258-0847
- Mfr. Part No.:
- FF08MR12W1MA1B11ABPSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 unit)*
£201.19
(exc. VAT)
£241.43
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 27 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £201.19 |
| 2 - 2 | £191.13 |
| 3 + | £183.08 |
*price indicative
- RS Stock No.:
- 258-0847
- Mfr. Part No.:
- FF08MR12W1MA1B11ABPSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Drain Current | 150 A | |
| Maximum Drain Source Voltage | 1200 V | |
| Package Type | AG-EASY1BS-1 | |
| Mounting Type | Clamp Mount | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Drain Current 150 A | ||
Maximum Drain Source Voltage 1200 V | ||
Package Type AG-EASY1BS-1 | ||
Mounting Type Clamp Mount | ||

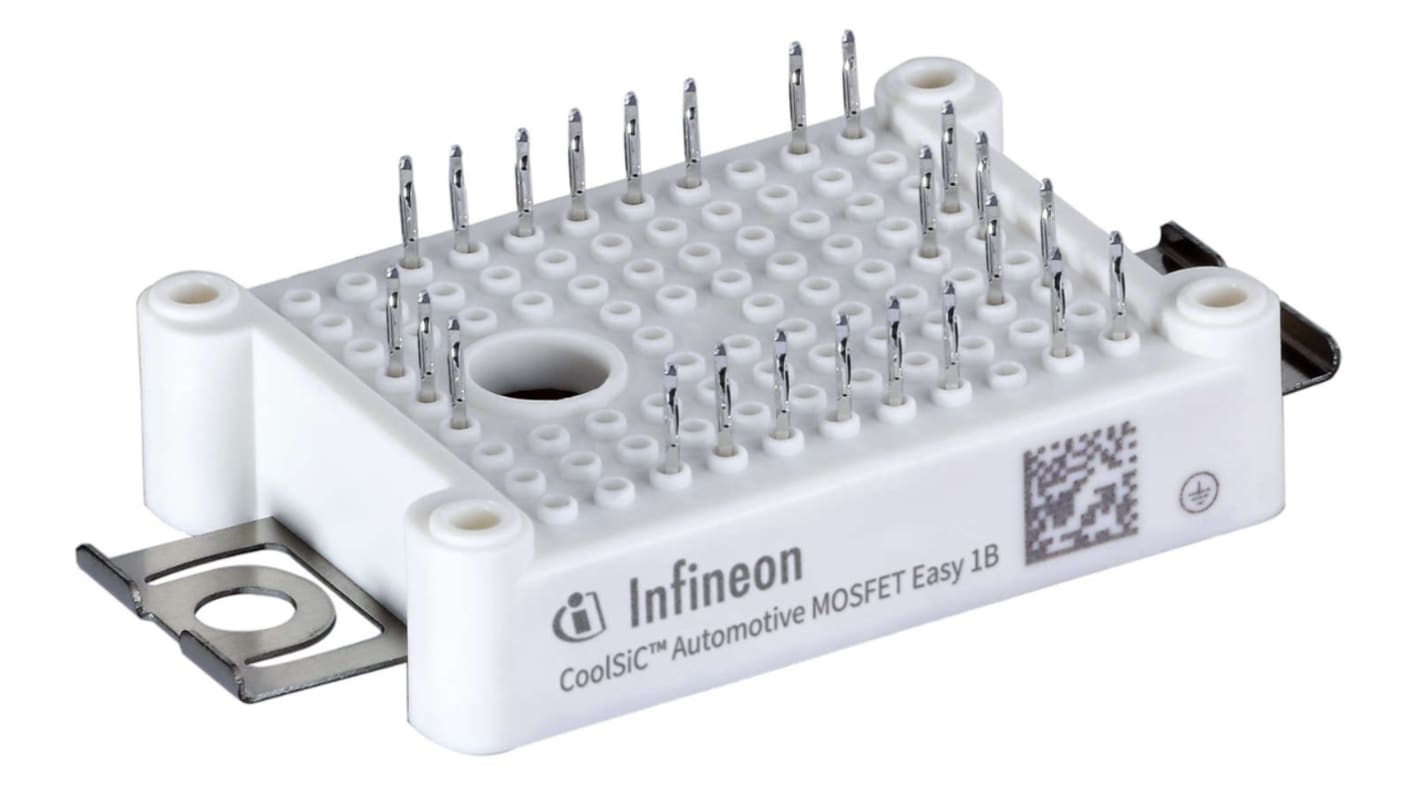

The Infineon automotive CoolSiCTM EasyPACKTM1B is a half bridge module which combines the benefits of Infineon robust silicon carbide technology with a very compact and flexible package for hybrid and electric vehicles. The power module implements the new CoolSiCTM automotive MOSFET 1200V Gen1, optimized for high voltage applications like DC/DC converter and auxiliary inverter. The chipset offers benchmark current density, high block voltage and reduced switching losses, which allows compact designs and helps to improve system efficiency, as well as allows a reliable operation under harsh environmental conditions.
Intrinsic diode with low reverse recovery
Low stray inductance 5nH
Blocking voltage 1200V
Low switching losses
Integrated NTC temperature sensor
Low stray inductance 5nH
Blocking voltage 1200V
Low switching losses
Integrated NTC temperature sensor
