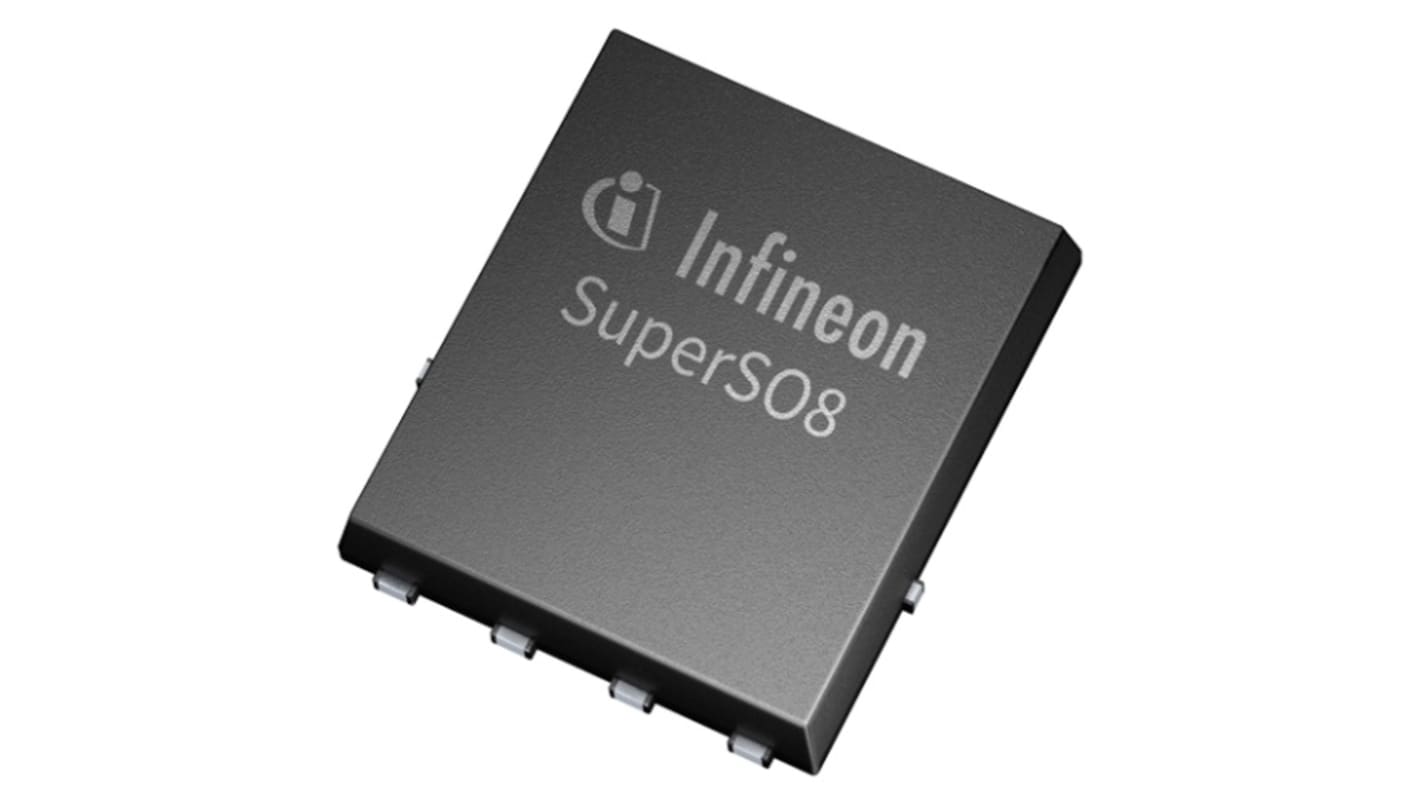

Infineon BSC Type N-Channel MOSFET, 88 A, 30 V N, 8-Pin TDSON
- RS Stock No.:
- 258-0686
- Mfr. Part No.:
- BSC0503NSIATMA1
- Brand:
- Infineon
Subtotal (1 reel of 5000 units)*
£1,890.00
(exc. VAT)
£2,270.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 5000 + | £0.378 | £1,890.00 |
*price indicative
- RS Stock No.:
- 258-0686
- Mfr. Part No.:
- BSC0503NSIATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 88A | |
| Maximum Drain Source Voltage Vds | 30V | |
| Series | BSC | |
| Package Type | TDSON | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 3.7mΩ | |
| Channel Mode | N | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Forward Voltage Vf | 0.54V | |
| Maximum Power Dissipation Pd | 36W | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 15nC | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS, IEC 61249-2-21 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 88A | ||
Maximum Drain Source Voltage Vds 30V | ||
Series BSC | ||
Package Type TDSON | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 3.7mΩ | ||
Channel Mode N | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Forward Voltage Vf 0.54V | ||
Maximum Power Dissipation Pd 36W | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 15nC | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS, IEC 61249-2-21 | ||
Automotive Standard No | ||
The Infineon OptiMOS 5 25V and 30V product family, offers benchmark solutions by enabling highest power density and energy efficiency, both in standby and full operation.
Highest efficiency
Highest power density with S3O8 or Power Block package
Reduction of overall system costs
Operation at high-switching frequency
