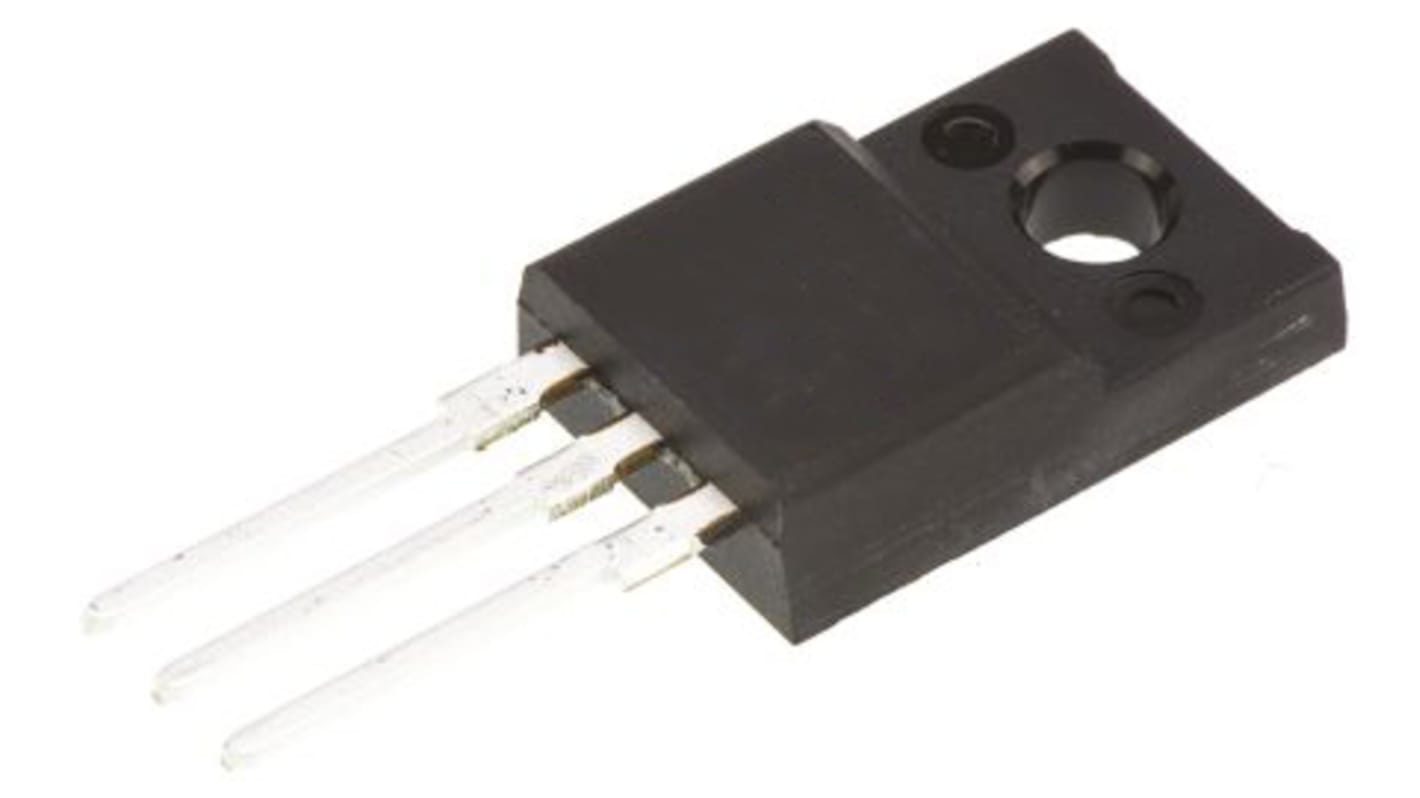

Vishay Type N-Channel MOSFET, 8 A, 60 V, 3-Pin TO-220 IRLIZ14GPBF

View all MOSFETs

Subtotal (1 pack of 5 units)*

£3.89

(exc. VAT)

£4.67

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 910 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +£0.778£3.89

*price indicative

Packaging Options:
RS Stock No.:
256-7329
Mfr. Part No.:
IRLIZ14GPBF
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Channel Type

Type N

Product Type

MOSFET

Maximum Continuous Drain Current Id

8A

Maximum Drain Source Voltage Vds

60V

Package Type

TO-220

Mount Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance Rds

0.028Ω

Maximum Power Dissipation Pd

125W

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

175°C

Height

4.8mm

Standards/Approvals

No

Automotive Standard

No

The Vishay Semiconductor third generation power mosfets provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220 FULLPAK eliminates the need for additional insulating hardware in commercial-industrial applications. The molding compound used provides a high isolation capability and a low thermal resistance between the tab and external heatsink. This isolation is equivalent to using a 100 micron mica barrier with standard TO-220 product. The FULLPAK is mounted to a heatsink using a single clip or by a single screw fixing.

Isolated package

High voltage isolation is 2.5 kVRMS

Sink to lead creepage distance is 4.8 mm

Logic-level gate drive

RDS specified at VGS is 4 V and 5 V

Fast switching

Ease of paralleling
